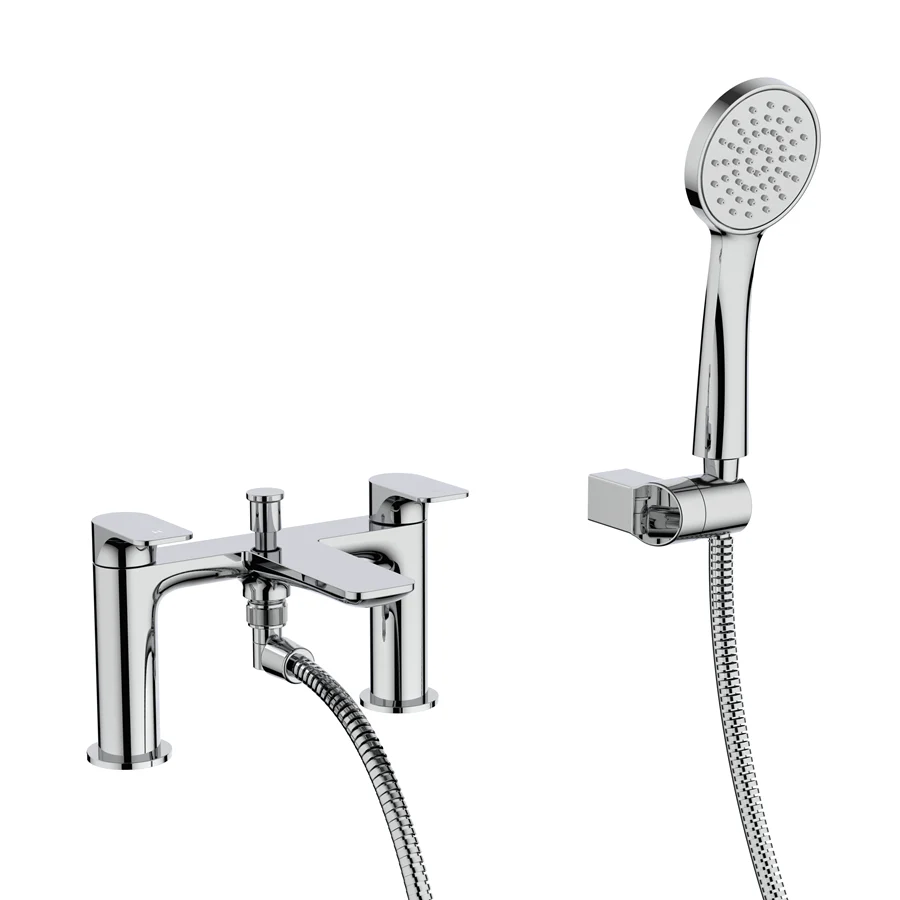

The Crosswater Fuse Deck Mounted Bath Shower Mixer Tap with Kit combines sleek, modern styling with practical functionality, ideal for contemporary bathrooms. Made from durable brass with a smooth round design, it features two lever handles and includes a shower handset and hose. With a 3/4" quarter turn ceramic cartridge and G3/4" inlet connections, it delivers excellent performance across a pressure range of 0.5 to 5.0 bar. Primary flow rates reach up to 40 l/m, while the handset delivers up to 11.2 l/m at 5.0 bar. Compliant with BS EN 200:2008 standards, this 2.24kg tap does not include waste and measures 138mm high.

Specification

• Product Type: Bath Shower Mixer Tap
• Brand: Crosswater
• Collection: Fuse
• Style: Modern
• Shape: Round
• Mounting: Deck
• Material: Brass
• Guarantee: 15 Years
• Weight: 2.24kg
• No Of Handle: 2
• Handle Style: Lever
• Tap Hole: 2
• Primary Flow Rates: 0.5 Bar - 17.5 l/m
• Primary Flow Rates: 1.0 Bar - 25.6 l/m
• Primary Flow Rates: 2.0 Bar - 35.5 l/m
• Primary Flow Rates: 3.0 Bar - 40 l/m
• Primary Flow Rates: 4.0 Bar - 40 l/m
• Primary Flow Rates: 5.0 Bar - 40 l/m
• Handset Flow Rates: 0.1 Bar - 5.4 l/m
• Handset Flow Rates: 1 Bar - 6 l/m
• Handset Flow Rates: 2.0 Bar - 8.1 l/m
• Handset Flow Rates: 3.0 Bar - 8.6 l/m
• Handset Flow Rates: 4.0 Bar - 9.7 l/m
• Handset Flow Rates: 5.0 Bar - 11.2 l/m

Special Features

• Image is shown for illustration purpose only
• Shower Handset and Hose are included
• Required minimum 0.5 bar to maximum 5.0 bar pressure
• Waste is not included
• 3/4" Quarter turn ceramic cartridge
• Inlet Connections Thread: G3/4"
• Standards: BS EN 200:2008

Dimensions

• Height: 138mm
• Width: 215mm
• Depth: 154mm

Datasheet Of Bath Shower Mixer Tap With Kit

Assembling Instructions

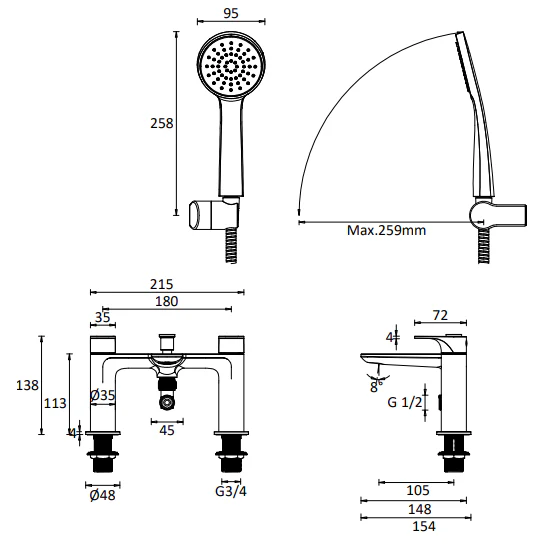

TECHNICAL DRAWING
