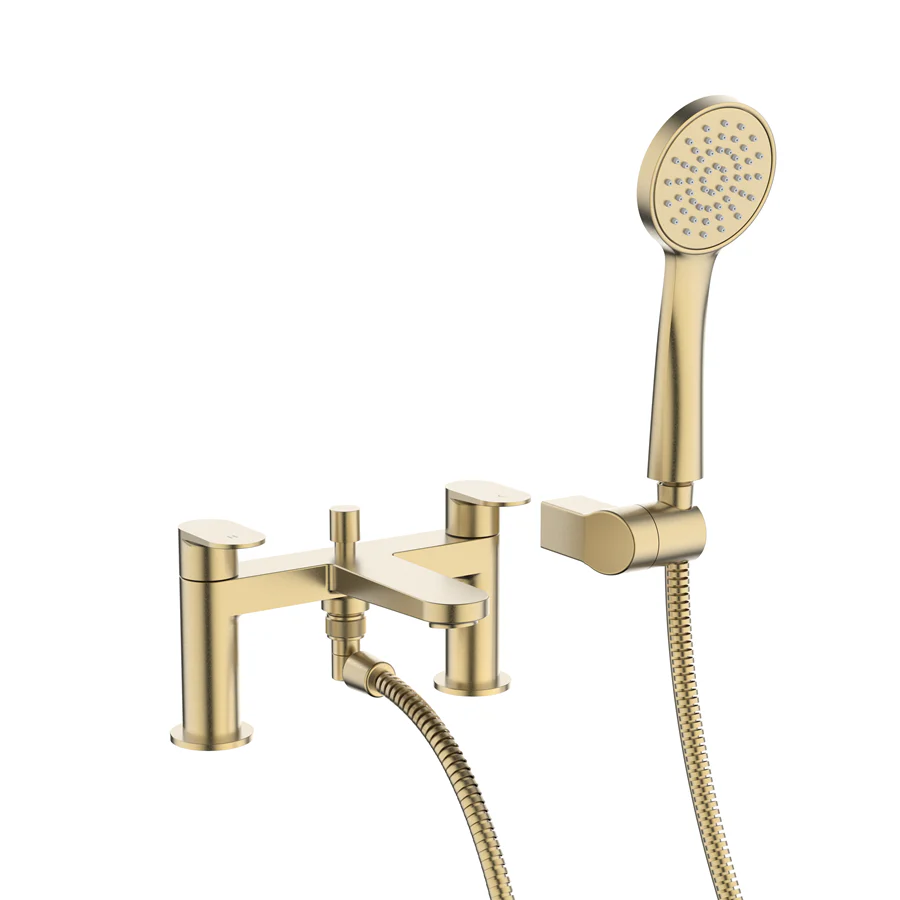

The Crosswater Drift Deck Mounted Bath Mixer Tap with Kit offers a sleek, modern design ideal for contemporary bathrooms. Crafted from durable brass with a round shape, it features two lever handles and a central diverter valve, allowing easy switching between bath filler and showerhead. Designed for bathtubs with two tap holes and 180mm inlet centres, it supports pressures from 0.3 to 5.0 bar and a maximum static pressure of 10 bar. The tap includes a complete shower kit but excludes waste. Measuring 125mm in height, 214mm in width, and 156mm in depth, it combines performance, style, and long-lasting reliability.

Specification

• Product Type: Bath Shower Mixer Tap
• Brand: Crosswater
• Collection: Drift
• Style: Modern
• Shape: Round
• Mounting: Deck
• Material: Brass
• Guarantee: 15 Years
• No Of Handle: 2
• Handle Style: Lever
• Tap Hole: 2
• Inlet connection: G3/4 Inch
• Inlet centres: 180mm
• Maximum static pressure: 10.0 Bar

Special Features

• Images are shown for illustration purposes only
• Comes complete with shower kit
• Required minimum 0.3 bar to maximum 5.0 bar pressure

• Designed to fit bathtubs with two tap holes
• The bath shower mixer features a diverter valve that allows you to switch the water flow between the bath filler and the showerhead
• Waste is not included

Dimensions

• Height: 125mm
• Width: 214mm
• Depth: 156mm

Datasheet Of Bath Shower Mixer Tap

Assembling Instructions

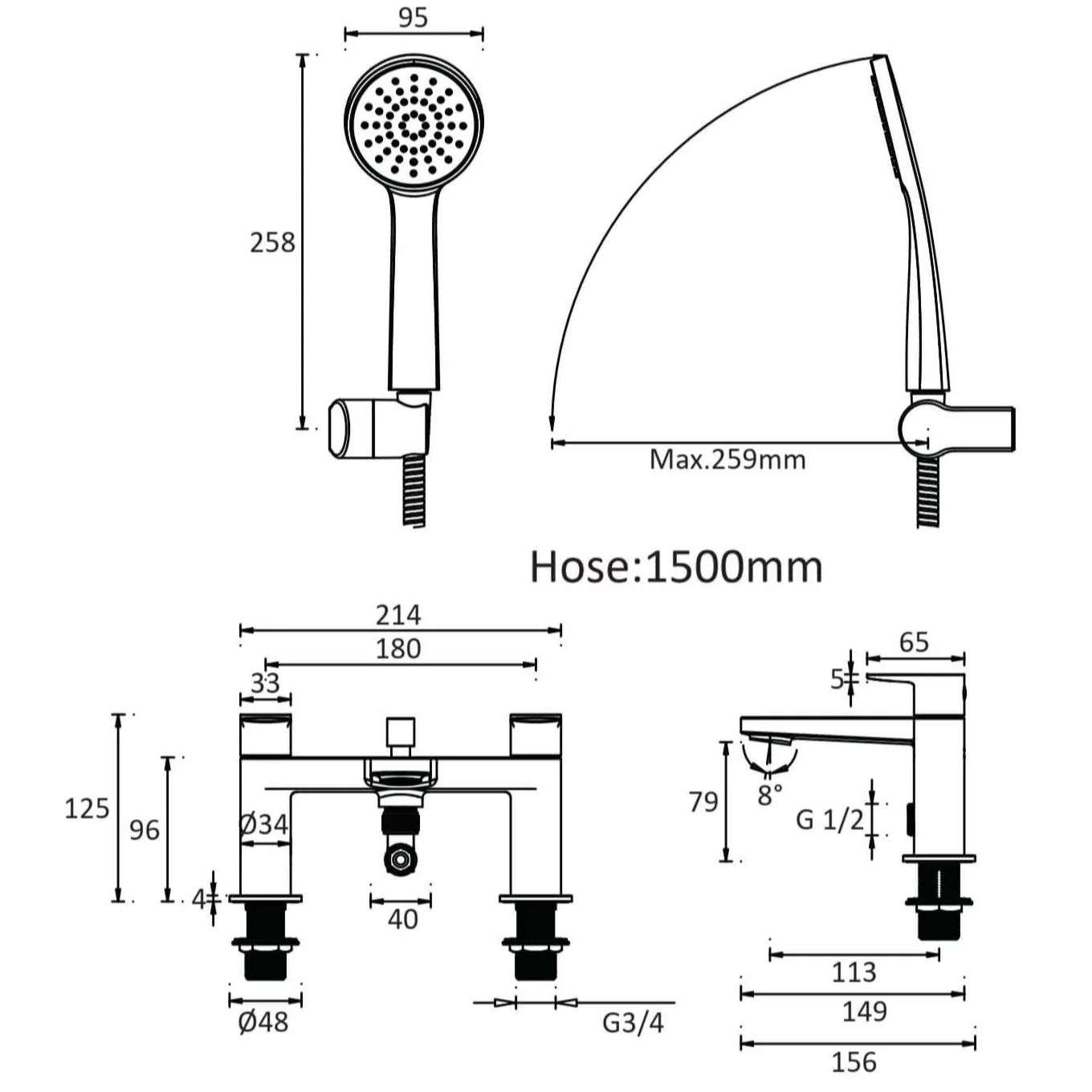

TECHNICAL DRAWING
