The Crosswater Flow 4 Hole Bath Shower Mixer Tap with Kit in Chrome is a modern, deck-mounted tap set made from durable brass, designed for stylish and efficient bathroom use. Featuring three lever handles for precise control, it operates by lifting or tilting, with the hot tap turning clockwise and the cold tap turning anti-clockwise to open. Suitable for all plumbing systems, it requires a minimum water pressure of 1.0 bar and delivers a flow rate of 17.8 litres per minute. The tap includes a G1/2 inch male tail inlet connection and comes with a shower kit. WRAS approved and backed by a 15-year guarantee, it combines functionality and sleek design.

Specification

• Product Type: Bath Shower Mixer Tap
• Brand: Crosswater
• Collection: Flow
• Finish: Chrome
• Style: Modern
• Shape: Round
• Mounting: Deck
• Material: Brass
• Guarantee: 15 Years
• Weight: 3.63kg
• Base To Spout: 102mm
• No Of Handle: 3
• Handle Style: Lever
• Tap Hole: 4

Special Features

• Images are shown for illustration purposes only
• Water Activation: By Lifting/Tilting
• Handle Position: Left & Right
• Max. Deck Thickness: 30mm
• The minimum flow rate is 17.8 litres per minute at 1.0 bar water pressure
• The inlet connection is G1/2 inch male tail
• The minimum water pressure recommended for smooth working is 1.0 bar [HP-High Pressure], and the maximum is 5.0 bar
• Suitable for all types of plumbing systems
• WRAS approved product
• Hot tap turns clockwise to open / Cold tap turns anti-clockwise to open
• Waste is not included
• Comes With Shower Kit

Dimensions

• Height: 132.3mm
• Depth: 126mm

Assembling Instructions

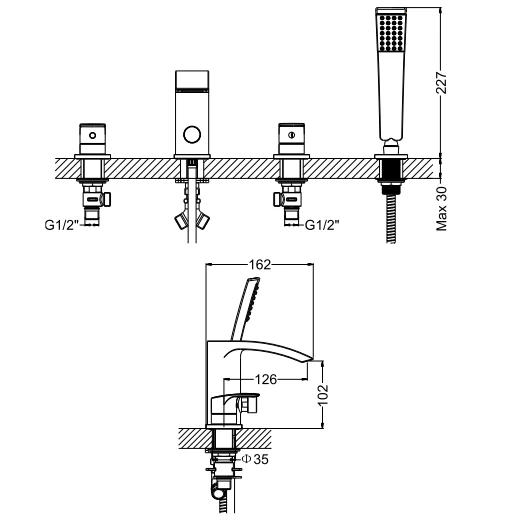

TECHNICAL DRAWING
