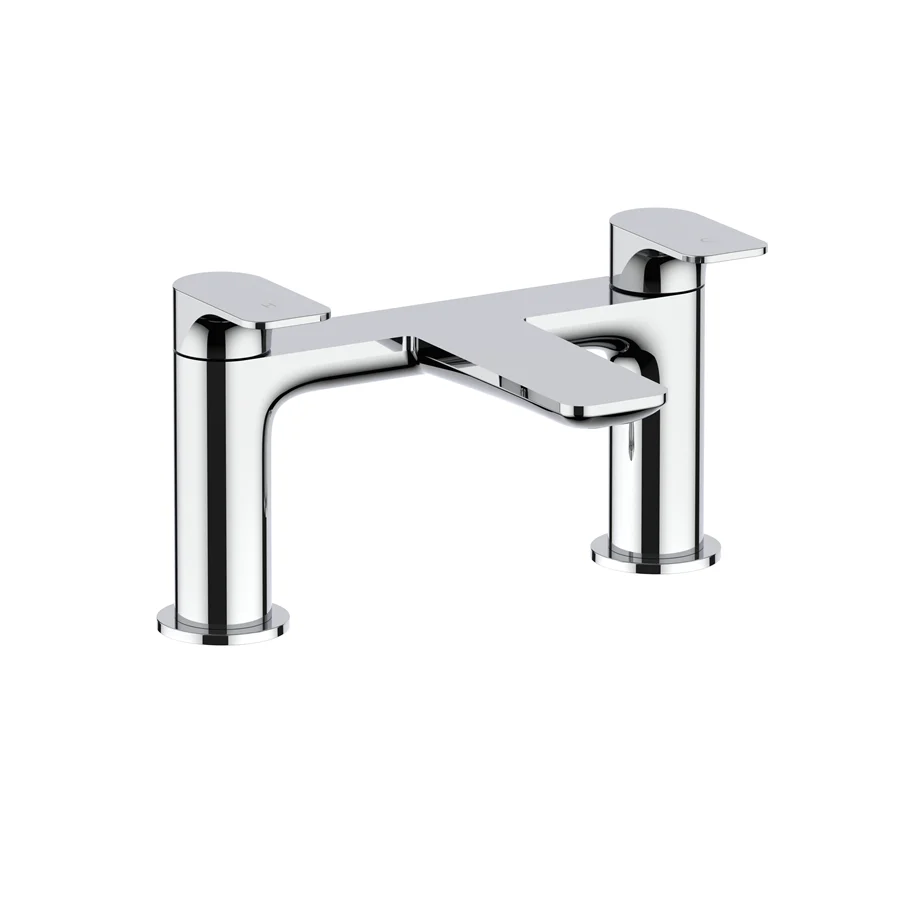

The Crosswater Fuse Deck Mounted Bath Filler Tap delivers a sleek, modern look with high performance, making it ideal for contemporary bathrooms. Crafted from durable brass in a round design, it features two easy-to-use lever handles and operates via 3/4" quarter turn ceramic cartridges. Designed for deck mounting with two tap holes, it supports water pressures from 0.5 to 5.0 bar and offers impressive flow rates—up to 40 l/m from 2.0 bar and above. Weighing 1.72kg, it connects via G3/4" inlets and complies with BS EN 200:2008 standards. Measuring 128mm high, 215mm wide, and 154mm deep, waste is not included.

Specification

• Product Type: Bath Filler Tap
• Brand: Crosswater
• Collection: Fuse
• Style: Modern
• Shape: Round
• Mounting: Deck
• Material: Brass
• Guarantee: 15 Years
• Weight: 1.72kg
• No Of Handle: 2
• Handle Style: Lever
• Tap Hole: 2
• Flow Rates: 0.5 Bar - 20.2 l/m
• Flow Rates: 1.0 Bar - 36 l/m
• Flow Rates: 2.0 Bar - 40 l/m
• Flow Rates: 3.0 Bar - 40 l/m
• Flow Rates: 4.0 Bar - 40 l/m
• Flow Rates: 5.0 Bar - 40 l/m

Special Features

• Images are shown for illustration purposes only
• Required minimum 0.5 bar to maximum 5.0 bar pressure
• Waste is not included
• 3/4" Quarter turn ceramic cartridge
• Inlet Connections Thread: G3/4"
• Standards: BS EN 200:2008

Dimensions

• Height: 128mm
• Width: 215mm
• Depth: 154mm

Datasheet Of Bath Filler Tap

Assembling Instructions

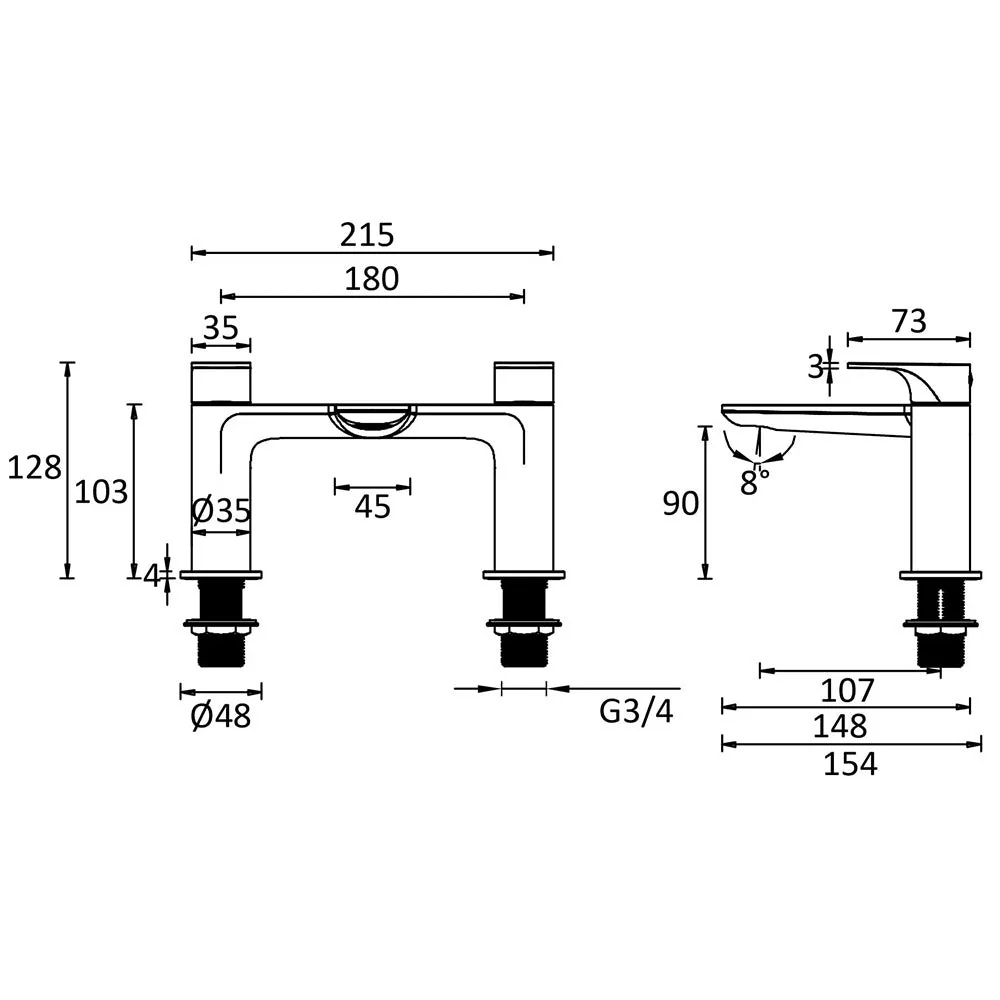

TECHNICAL DRAWING
