The Crosswater Drift Dual Lever Deck Mounted Bath Mixer Tap offers a stylish and functional solution for modern bathrooms. Featuring a sleek round design and crafted from durable brass, it includes two lever handles and a built-in diverter valve to easily switch between bath filler and showerhead. Designed for bathtubs with two tap holes and 180mm inlet centres, it operates efficiently between 0.5 and 5.0 bar pressure, with a maximum static pressure of 10 bar. Finished to BS EN 200:2008 standards, this tap measures 125mm in height, 214mm in width, and 156mm in depth. Waste is not included.

Specification

• Product Type: Bath Filler Tap
• Brand: Crosswater
• Collection: Drift
• Style: Modern
• Shape: Round
• Mounting: Deck
• Material: Brass
• Guarantee: 15 Years
• No Of Handle: 2
• Handle Style: Lever
• Tap Hole: 2
• Inlet connection: G3/4 Inch
• Inlet centres: 180mm
• Maximum static pressure: 10.0 Bar

Special Features

• Images are shown for illustration purposes only
• Required minimum 0.5 bar to maximum 5.0 bar pressure

• Designed to fit bathtubs with two tap holes
• The bath shower mixer features a diverter valve that allows you to switch the water flow between the bath filler and the showerhead
• Waste is not included
• BS EN 200:2008 Standards

Dimensions

• Height: 125mm
• Width: 214mm
• Depth: 156mm

Datasheet Of Bath Filler Tap

Assembling Instructions

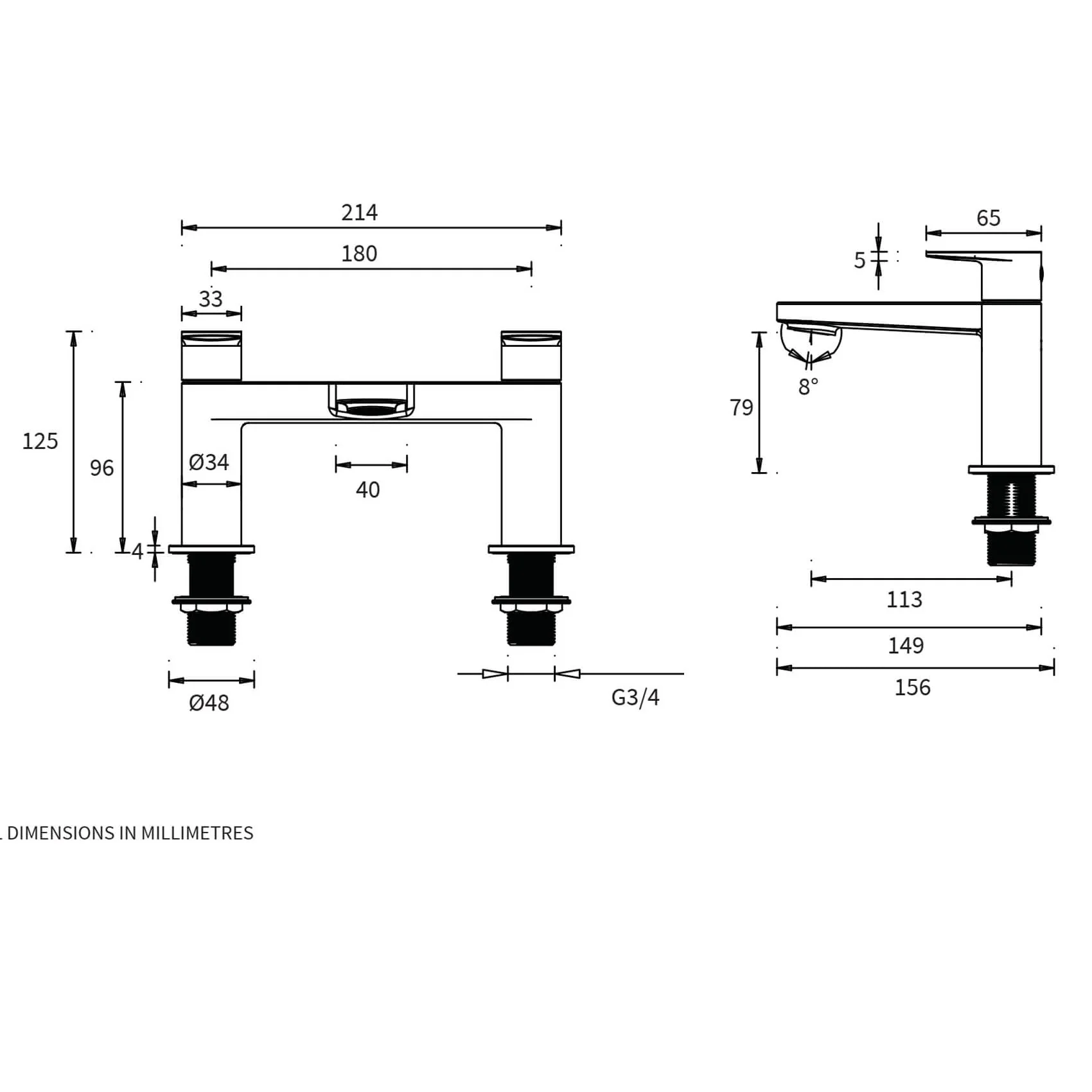

TECHNICAL DRAWING
