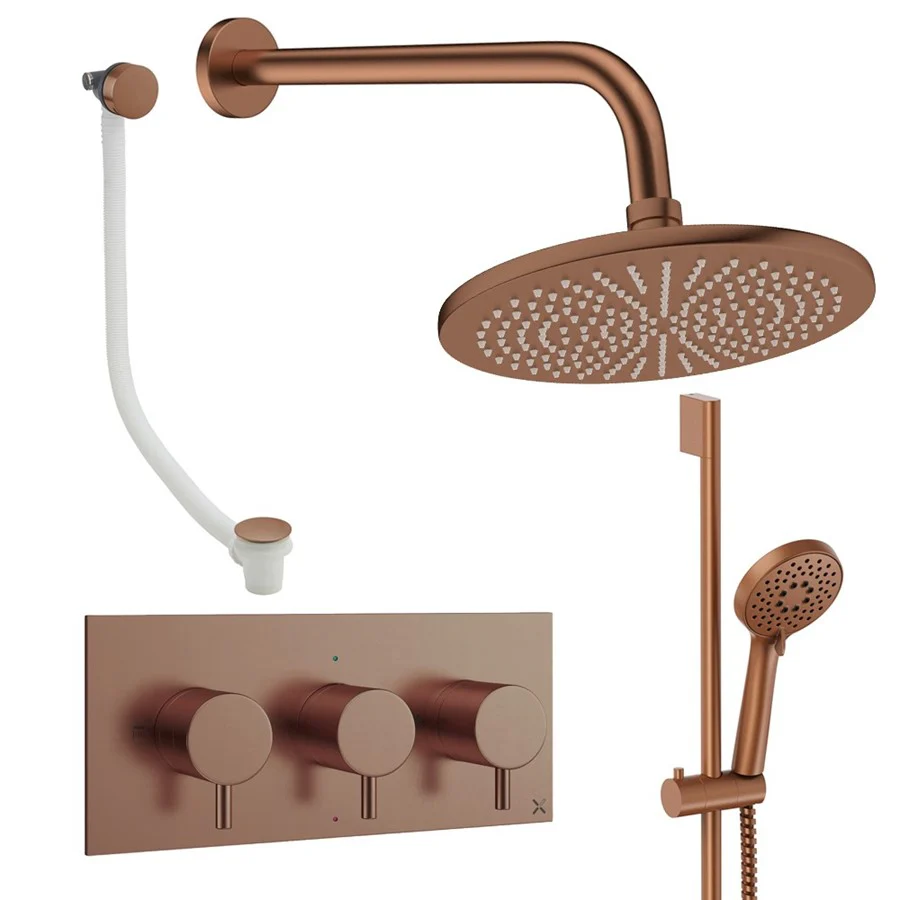

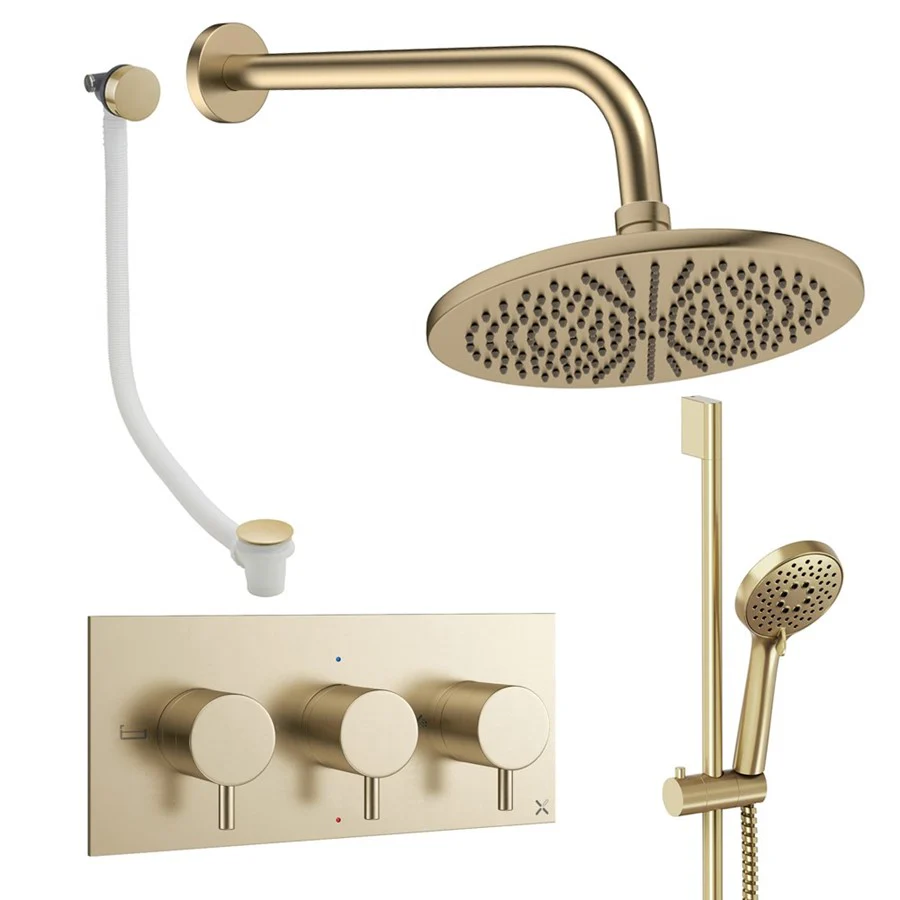

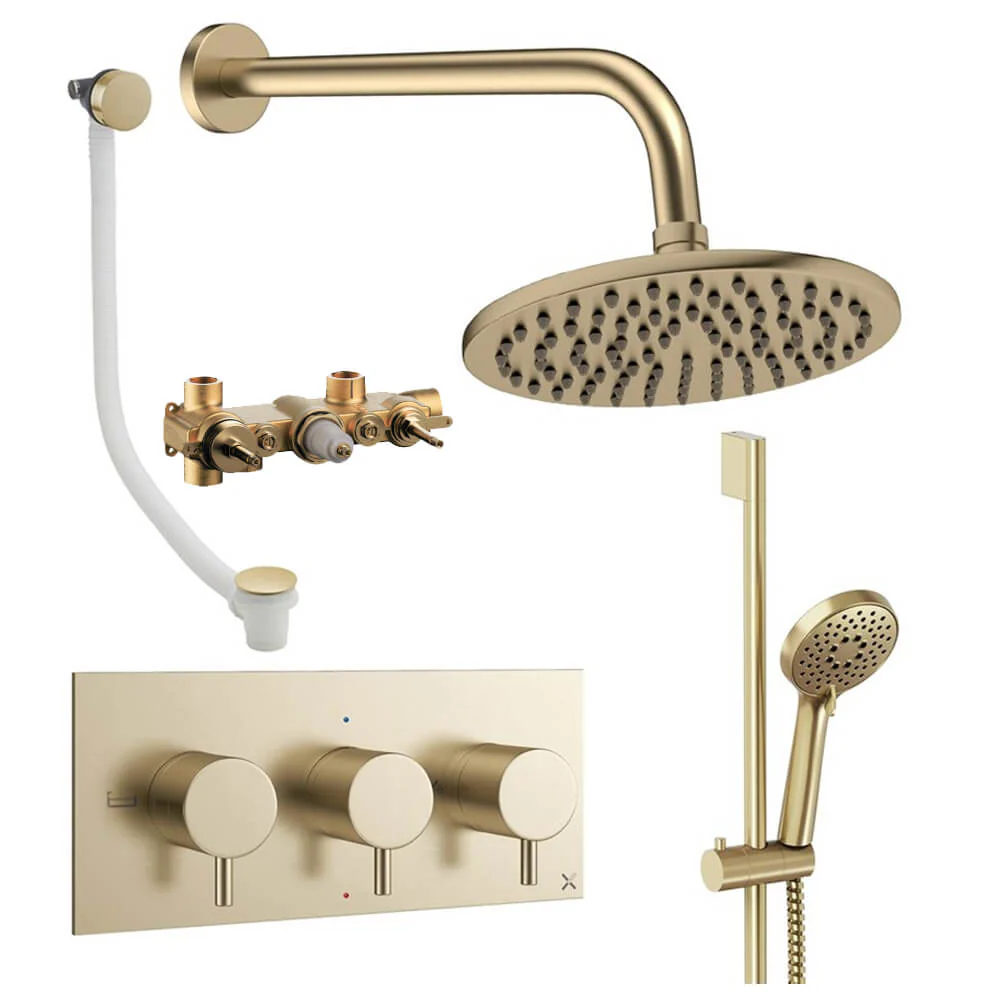

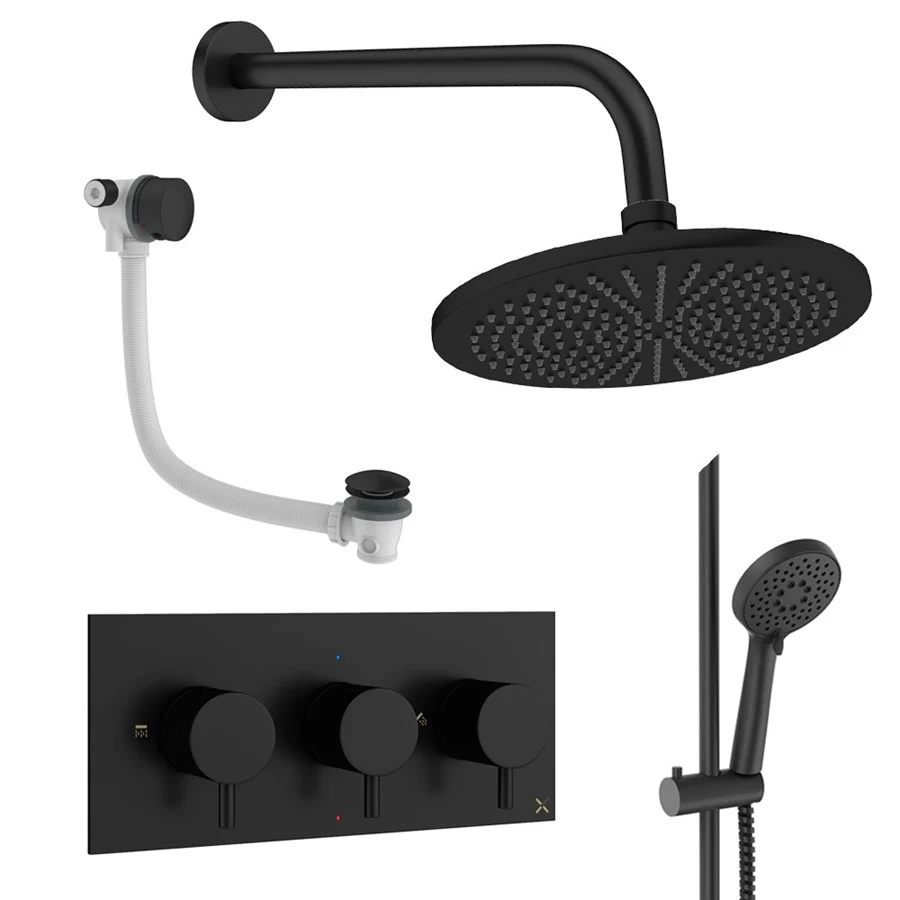

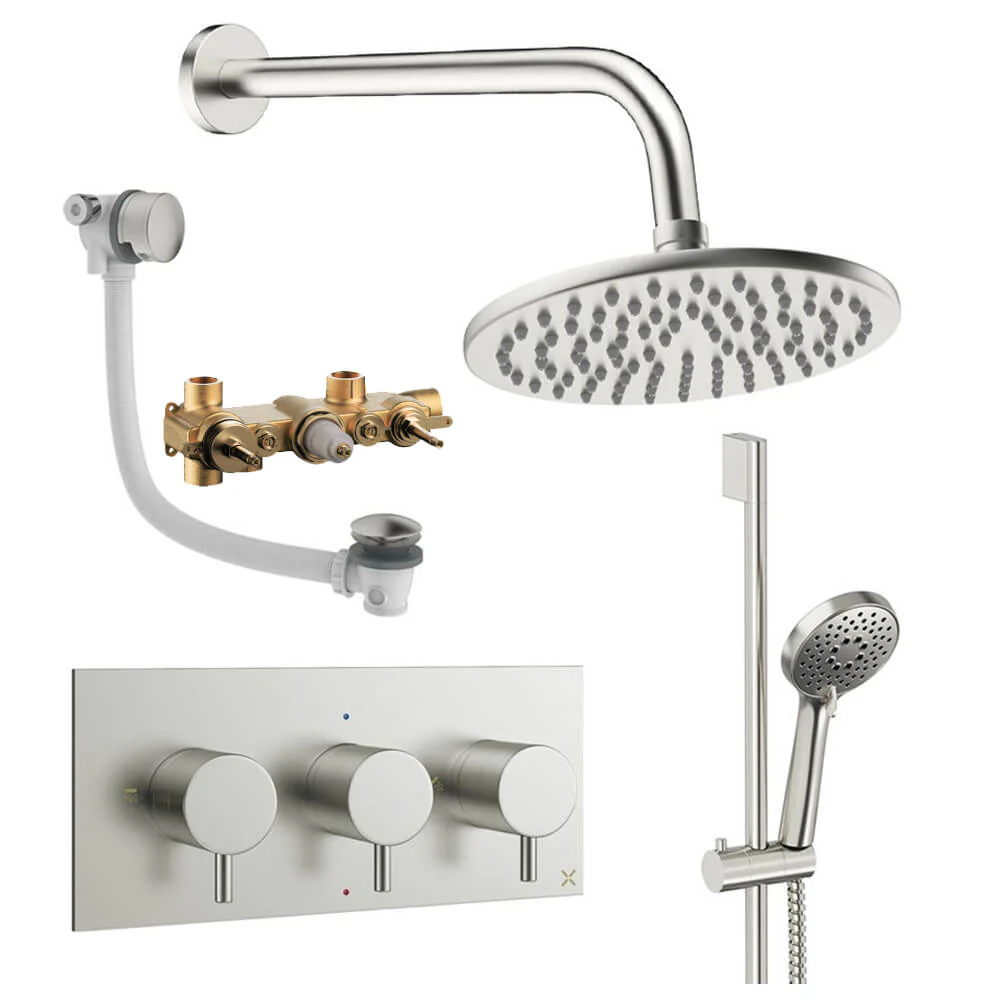

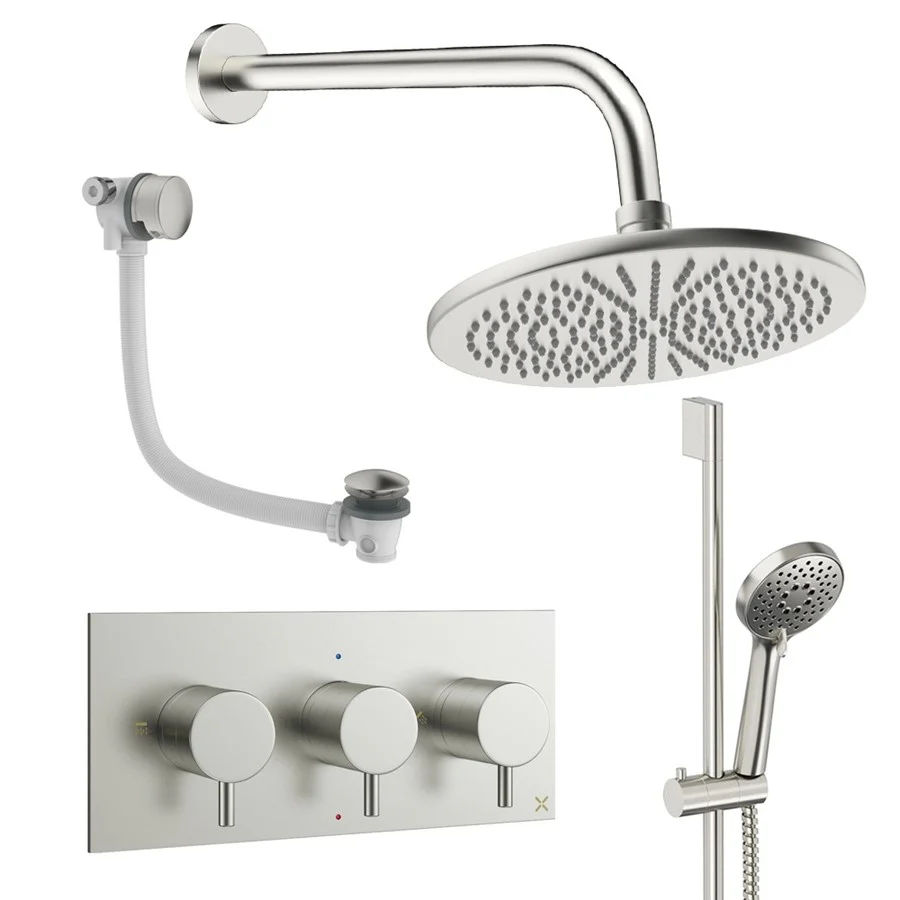

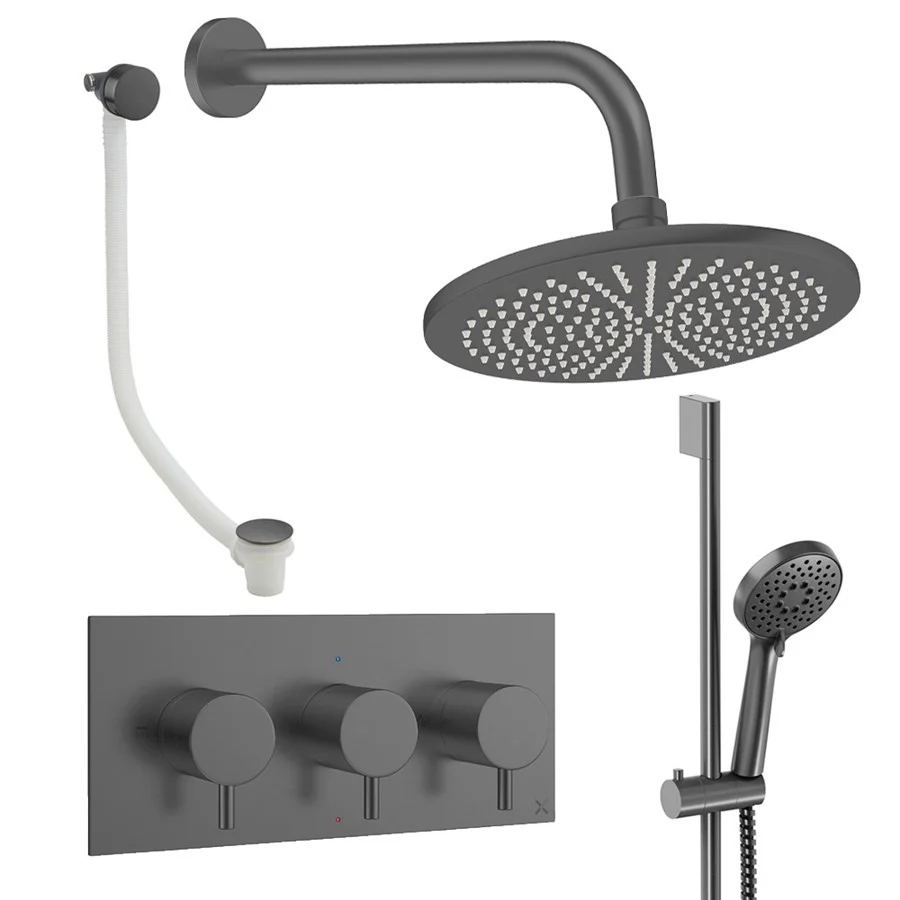

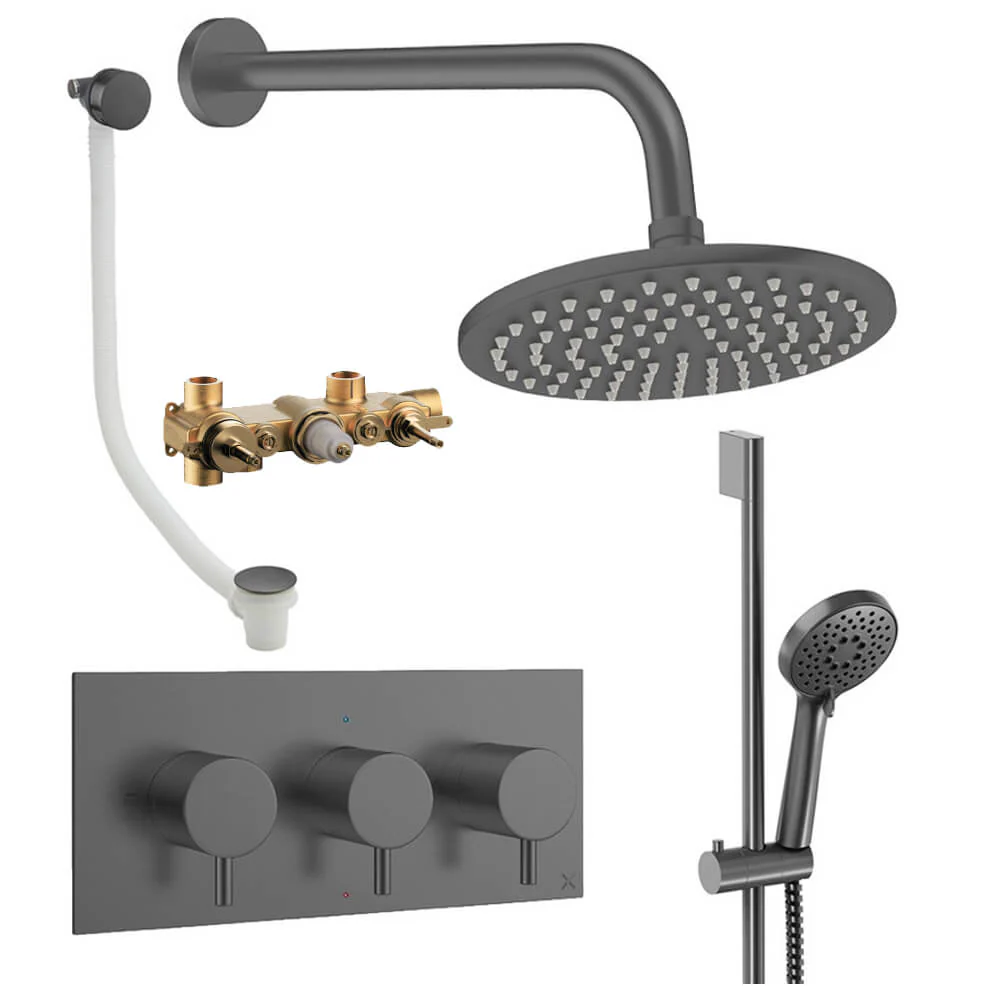

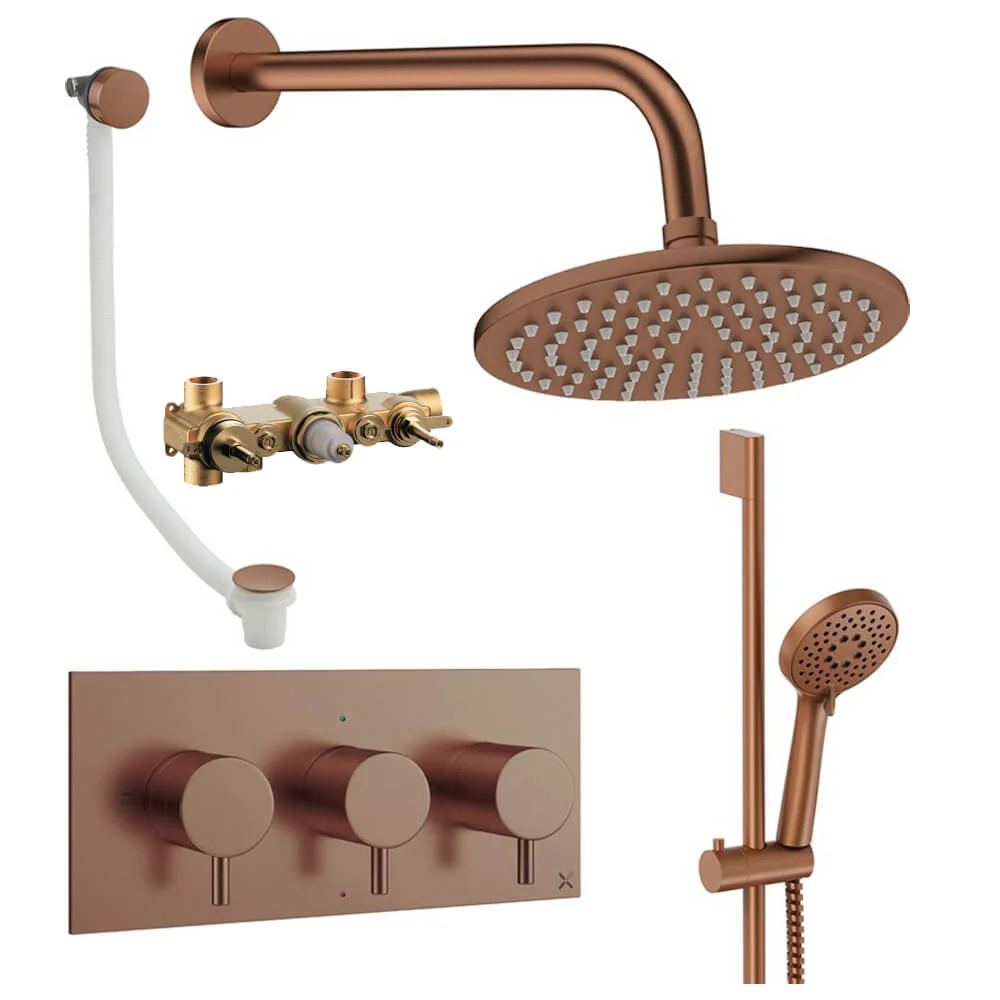

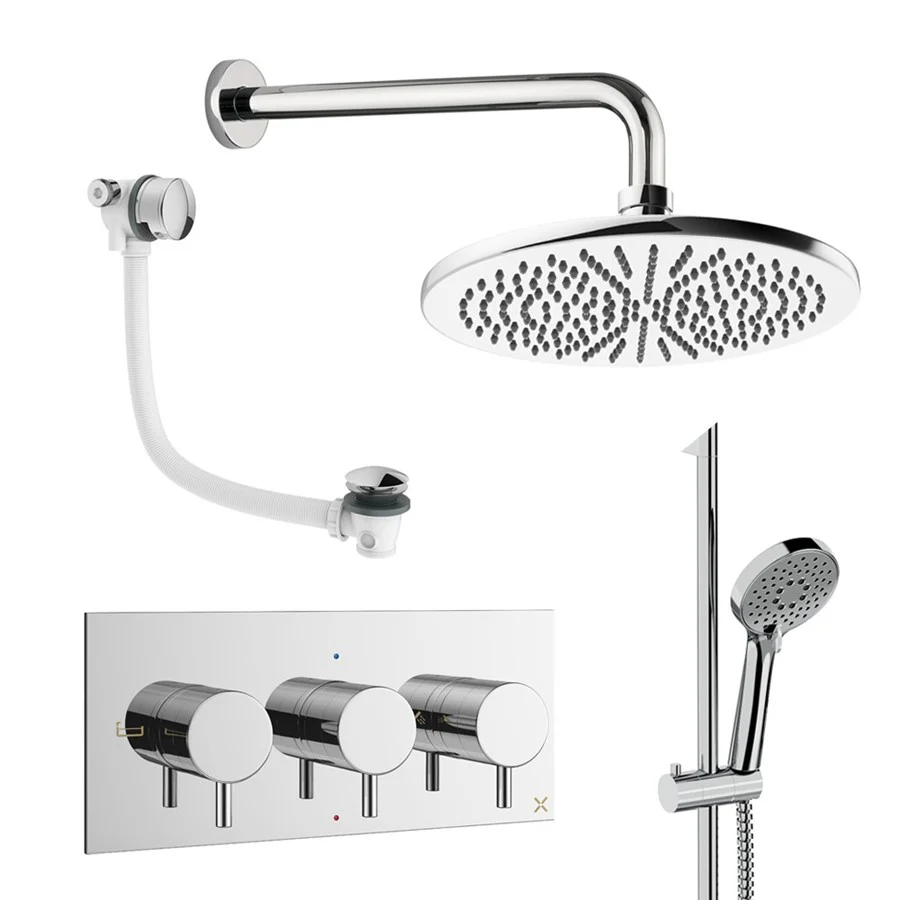

The Crosswater Design Shower Set 9 is a premium, all-in-one showering solution designed to deliver style, reliability and high-performance functionality for modern bathrooms. Crafted from durable brass and ABS materials, this shower set features a sleek contemporary design and is part of the Crosswater Design collection. It includes three outlets and three knob handles, allowing precise control of water flow, temperature and outlet selection. The system requires a minimum operating water pressure of 1 bar and is suitable for high water pressure systems, ensuring strong and consistent performance. This comprehensive shower set includes a 3 outlet 3 handle concealed thermostatic shower valve in landscape orientation, a round contemporary concealed trim set, a contemporary 330mm projection wall mounted shower arm, a contemporary round fixed shower head, a slide rail kit with hose and handset, and a bath filler with click clack waste. The thermostatic shower valve features a backplate size of 120mm x 275mm and is WRAS, KIWA and TMV2 approved, confirming high quality manufacturing and compliance with strict safety standards. It incorporates a 3 way diverter valve body with no collars for a clean and minimal installation appearance. The concealed trim set includes diverter and thermostatic cartridges and provides anti scald protection for safe operation. It features G3/4 inch inlet and outlet connections and complies with BS EN 1111:2017 standards. Designed for high pressure water systems, the trim set requires a minimum of 1 bar and can operate above 5 bar water pressure. The contemporary wall mounted shower arm measures 330mm in length and uses a G1/2 inch inlet and outlet thread. It is KIWA approved, ensuring dependable quality and compatibility with Crosswater fixed shower heads.

The slide rail shower set includes a slide rail with shower kit and outlet elbow. The rail has a height of 698mm and comes with a 3 function shower handset that allows different spray options for a versatile showering experience. The handset requires a minimum water pressure of 1 bar and is WRAS approved for reliability and compliance with water regulations. It features a G1/2 inch inlet connection thread for straightforward installation. Completing the set is a bath filler with click clack waste system designed for convenient operation and flexible installation. The click clack waste has a projection of 41mm and uses a G1 1/2 inch inlet and outlet connection thread. It provides a 3 in 1 inlet, outlet and overflow function and can be operated as either a cable waste system or a simple click clack mechanism that activates by pressing with your foot. The flexible overflow allows easier fitting in baths with unusual shapes and makes it ideal for shower and bath combinations. It supports various styles of visible waste and overflow fittings and requires bath panel valves, recessed valves or a deck mounted diverter for proper installation. The waste system is suitable for medium and high water pressure systems and requires a minimum operating pressure of 0.5 bar or above 5 bar. Combining advanced thermostatic control, premium approvals and modern aesthetics, the Crosswater Design Shower Set 9 delivers a complete and sophisticated bathing and showering experience.

Specifications:

• Warranty: 15 Years
• Product Type: Shower Set
• Brand: Crosswater
• Collection: Design
• Style: Modern
• Material: Brass/ABS
• Outlets: 3
• Handles: 3
• Handle Type: Knob
• Minimum Operating Water Pressure: 1 Bar

Special Features:

• Shower Set Includes - 3 Outlet 3 Handle Concealed Thermostatic Shower Valve Landscape, Round Contemporary Concealed Trim Set, Contemporary 330mm Projection Wall Mounted Shower Arm, Contemporary Round Fixed Shower Head, Slide Rail Kit with Hose and Handset, Bath Filler with Click Clack Waste

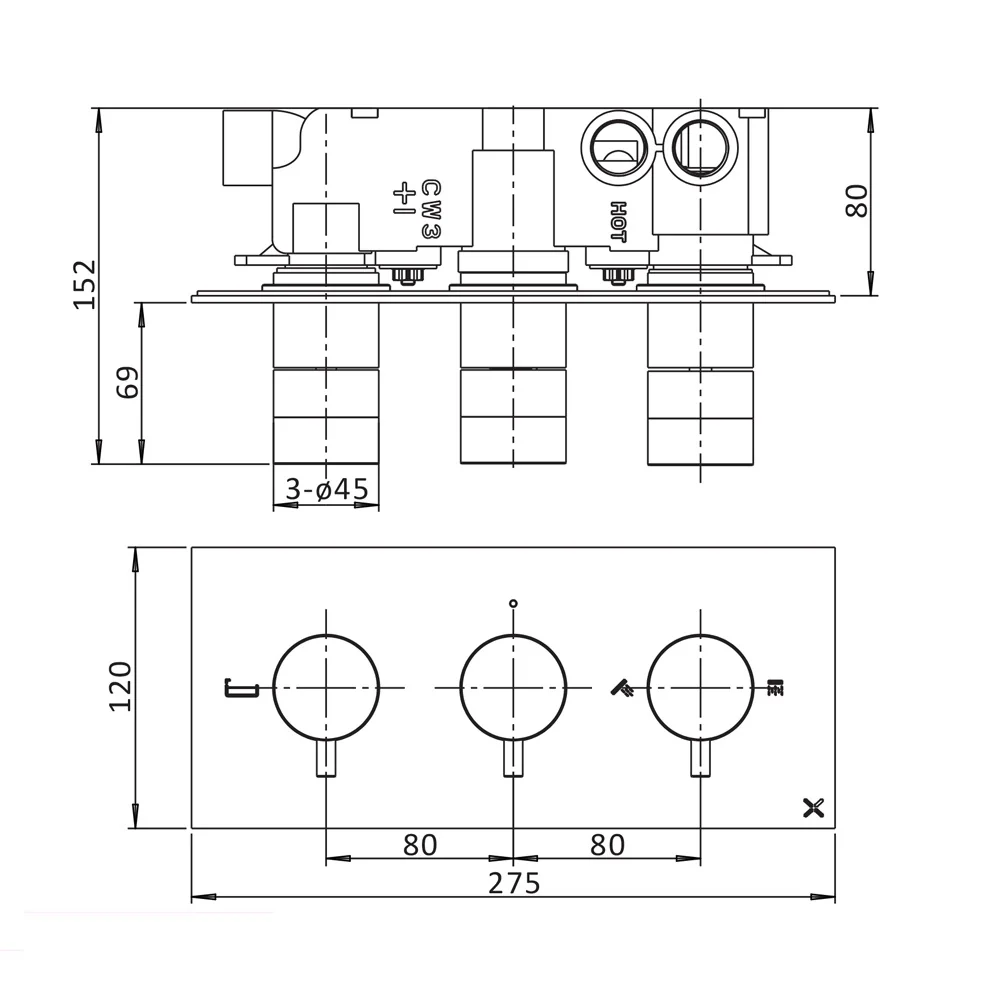

• Shower Valve: Size of Backplate: 120 x 275mm
• Shower Valve: WRAS, KIWA and TMV2-Approved Product
• Shower Valve: 3 Way Diverter Valve Body With No Collars
• Shower Valve: Suitable for High Water Pressure Systems
• Trim Set: Headwork: Diverter and Thermostatic Cartridge
• Trim Set: Inlet/Outlet Connection: G3/4 Inch
• Trim Set: WRAS, KIWA and TMV2-Approved Product
• Trim Set: Standards: BS EN 1111:2017
• Trim Set: Anti-Scald
• Trim Set: Suitable for High Water Pressure Systems
• Trim Set: Requires a Minimum of 1 Bar or Above 5 Bar Water Pressure System

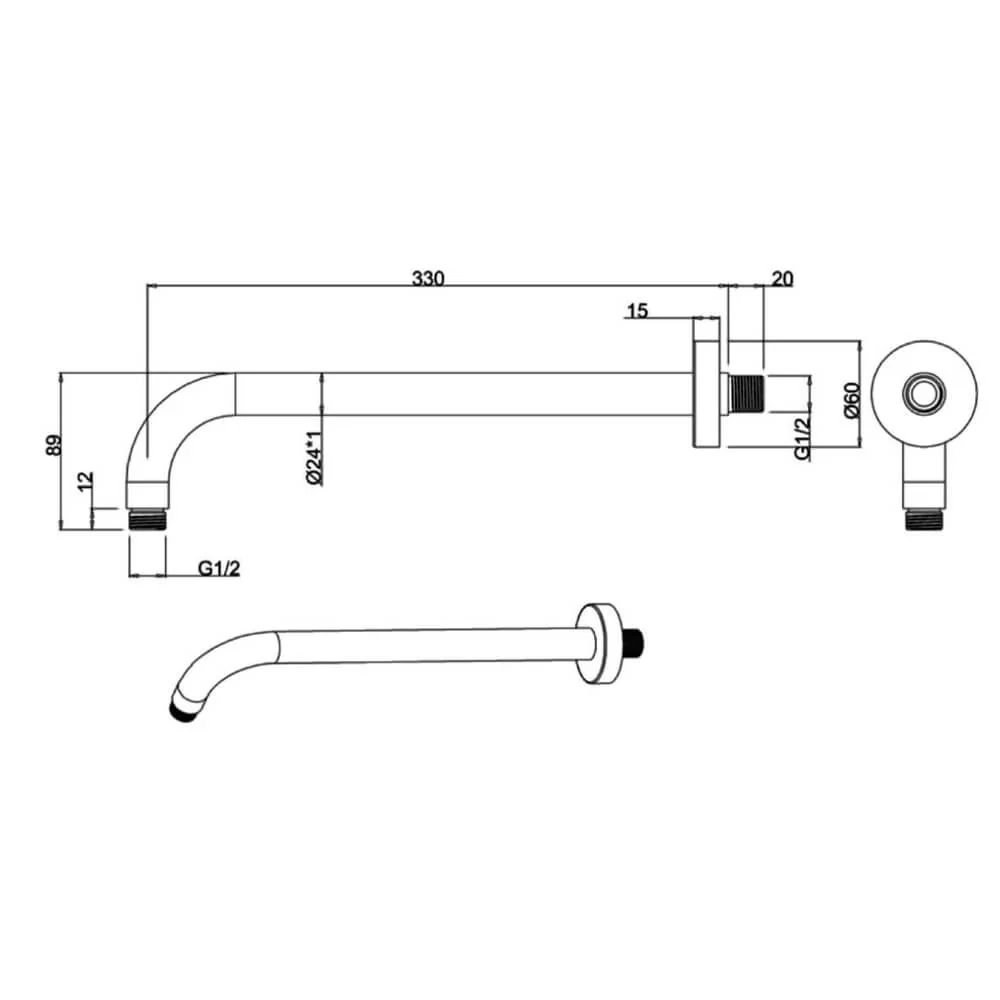

• Shower Arm: Length: 330mm
• Shower Arm: Inlet/Outlet Connection Thread: G1/2-Inch
• Shower Arm: KIWA-Approved
• Slide Rail with Shower Kit and Outlet Elbow
• Slide Rail Shower Set Height: 698mm
• 3-Functions Shower Handset
• Slide Rail Shower Set: Requires a Minimum of 1 Bar of Water Pressure
• Slide Rail Shower Set: WRAS Approved
• Slide Rail Shower Set Inlet Connection Thread: G1/2-Inch

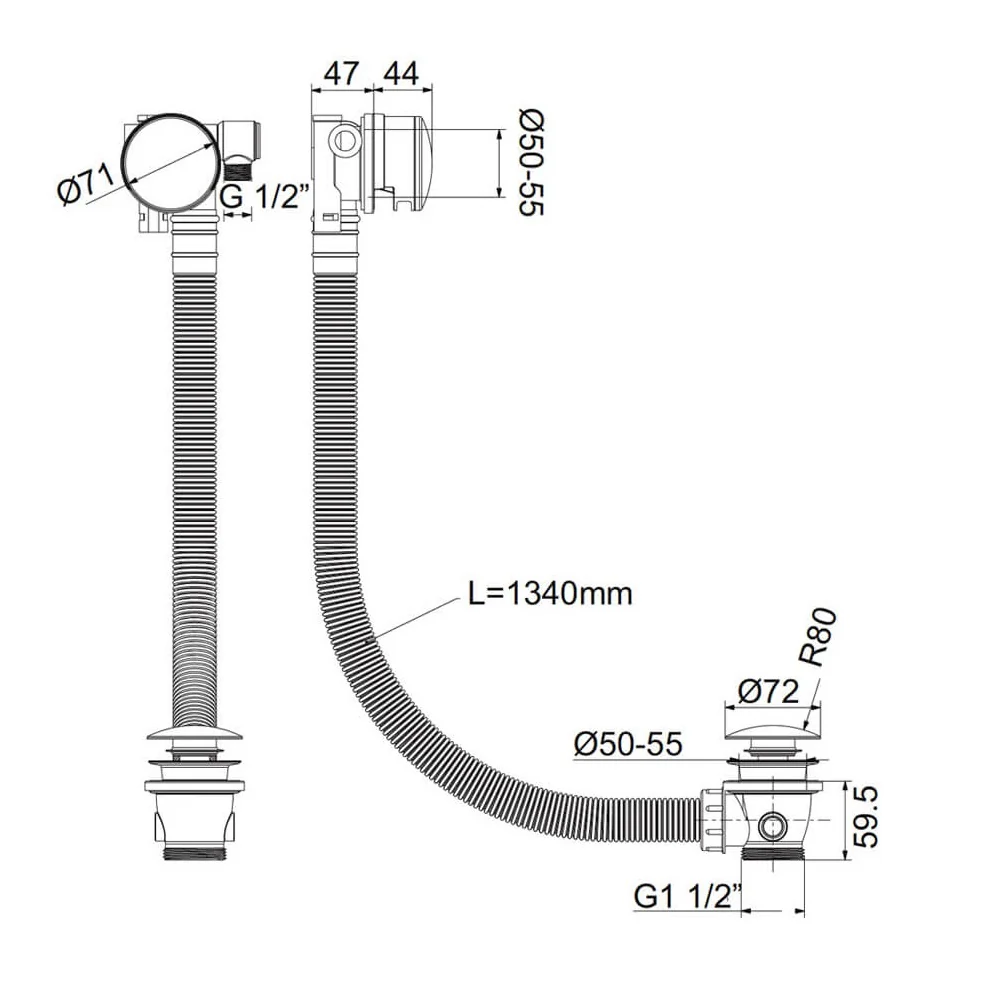

• Click Clack Waste: Projection: 41mm
• Click Clack Waste: Inlet/Outlet Connection Thread: G1 1/2-Inch
• Click Clack Waste: 3-in-1 Inlet/Outlet and Overflow Function
• Click Clack Waste: Smooth and Simple Cable Waste Operation or Click-Clack Waste - Simply Press with Your Foot
• Click Clack Waste: Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
• Click Clack Waste: Ideal for Shower and Bath Combinations
• Click Clack Waste: Various Styles of Visible Waste and Overflow Fittings
• Click Clack Waste: Requires Bath Panel Valves, Recessed Valves, or Deck-Mounted Diverter
• Click Clack Waste: Suitable for Medium and High Water Pressure Systems
• Click Clack Waste: Requires a Minimum of 0.5 Bar or Above 5 Bar Water Pressure System
