The Vado DX Phase 1 Outlet 2 Handle Thermostatic Concealed Shower Valve in Polished Chrome is a premium solution for modern bathrooms, combining sleek design with precise functionality. Featuring a rectangular backplate with a single ergonomic knob handle, it allows accurate control of water temperature and flow for a single outlet, perfect for an overhead or hand shower. Finished in polished chrome and crafted from high-quality materials, this valve is compatible with gravity-fed, pumped, combination boiler, and pressurised plumbing systems. Equipped with advanced thermostatic and flow cartridges, it ensures consistent temperature, smooth operation, and reliable performance. Installation is straightforward with wall mount tolerances of 70–95mm, an optimum depth of 82mm, and a bleed valve for system flushing. Measuring 200mm in height and 130mm in width, this valve combines contemporary aesthetics, durable construction, and practical functionality. Backed by a 15-year guarantee, the Vado DX Phase Thermostatic Shower Valve provides a luxurious and safe showering experience.

Specifications

• Guarantee: 15 Years
• Product type: Concealed Shower Valve
• Brand: Vado
• Collection: DX Phase
• Colour: Polished Chrome
• Style: Modern
• Shape: Rectangular
• Mounting: Wall
• Number of Outlets: 1
• Orientation: Vertical
• Number of Handles: 1
• Handle Type: Knob
• Minimum Operating Pressure: 0.2 Bar LP (Shower) / 1.0 Bar MP (Bath)
• Maximum Operating Pressure: 5.0 Bar HP

Special Features

• Easy to install and use
• Images are shown for illustration purposes only

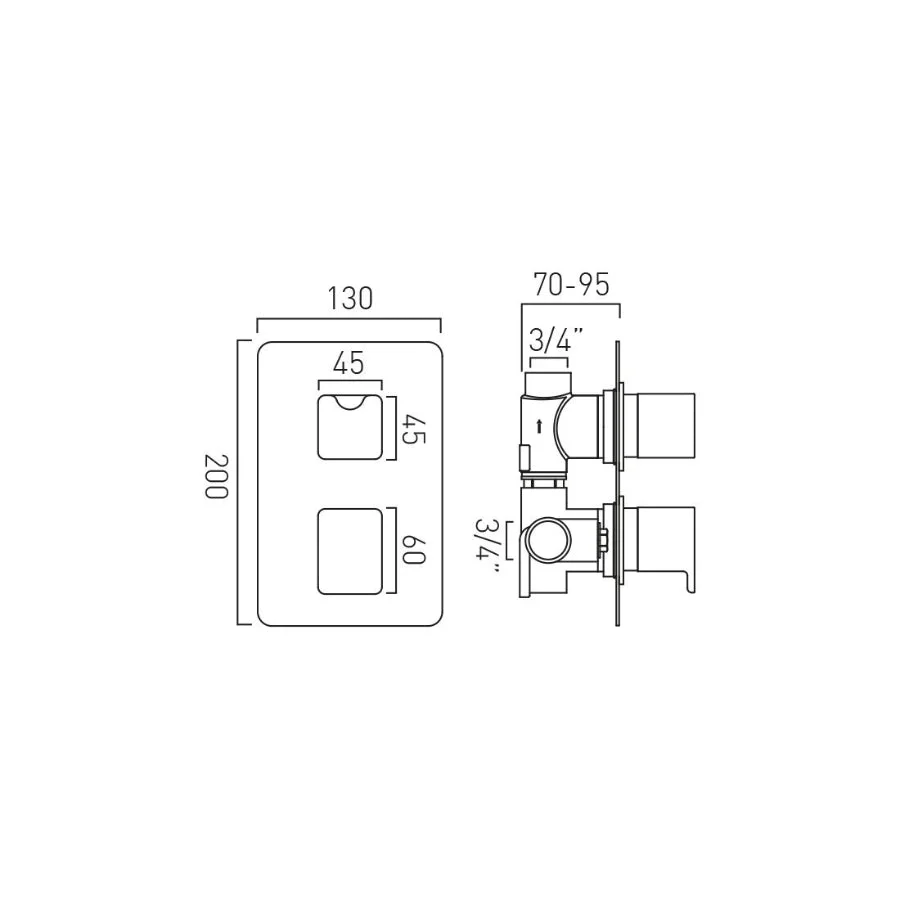

• Installation Tolerances: min-max wall mount 70-95mm optimum installation depth 82mm
• Connections/Fittings: 2 x 3/4” female inlets 2 x 3/4” female outlets
• Thermostatic cartridge V-704-34S flow cartridge C-301-RTC
• Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System
• With Rectangular Backplate
• Bleed Valve for System Flush on Installation
• Backplate Height: 200mm
• Backplate Width: 130mm
