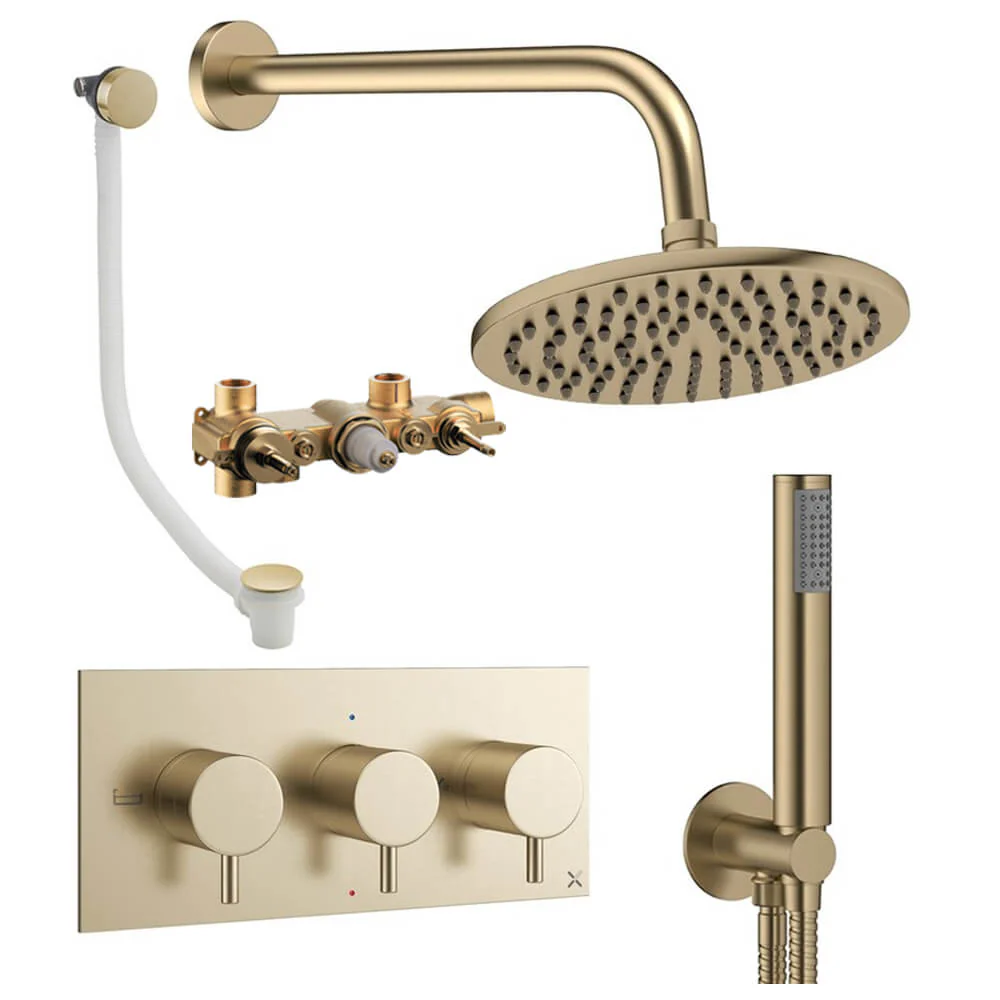

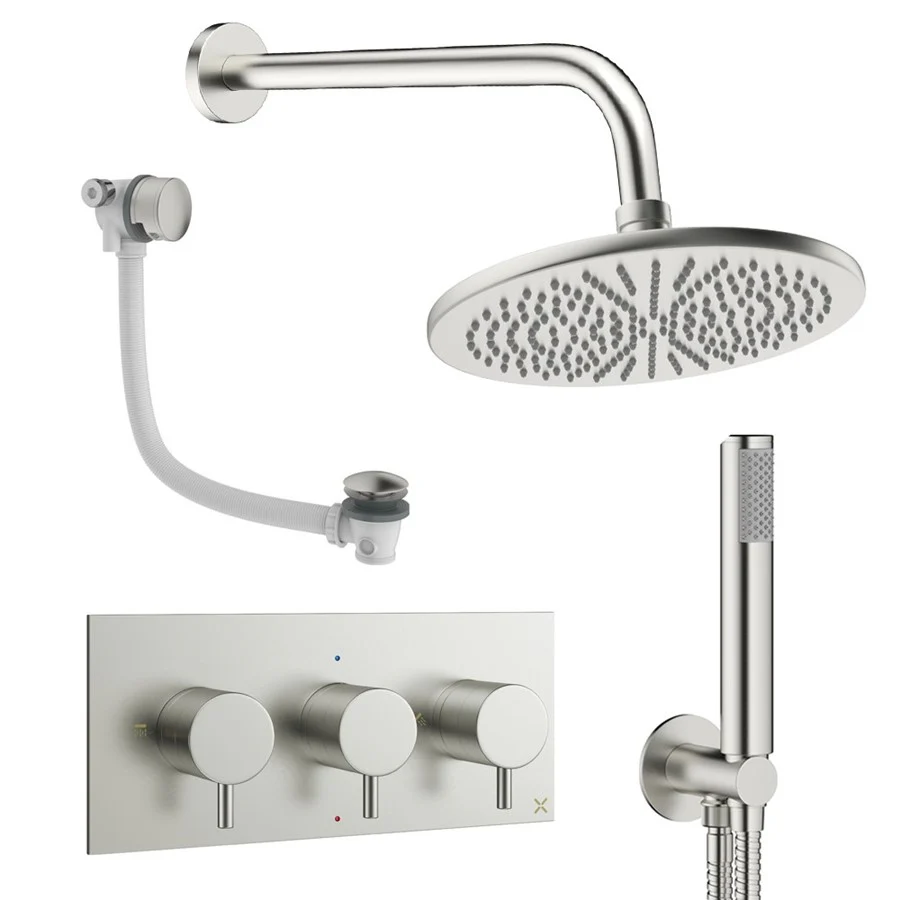

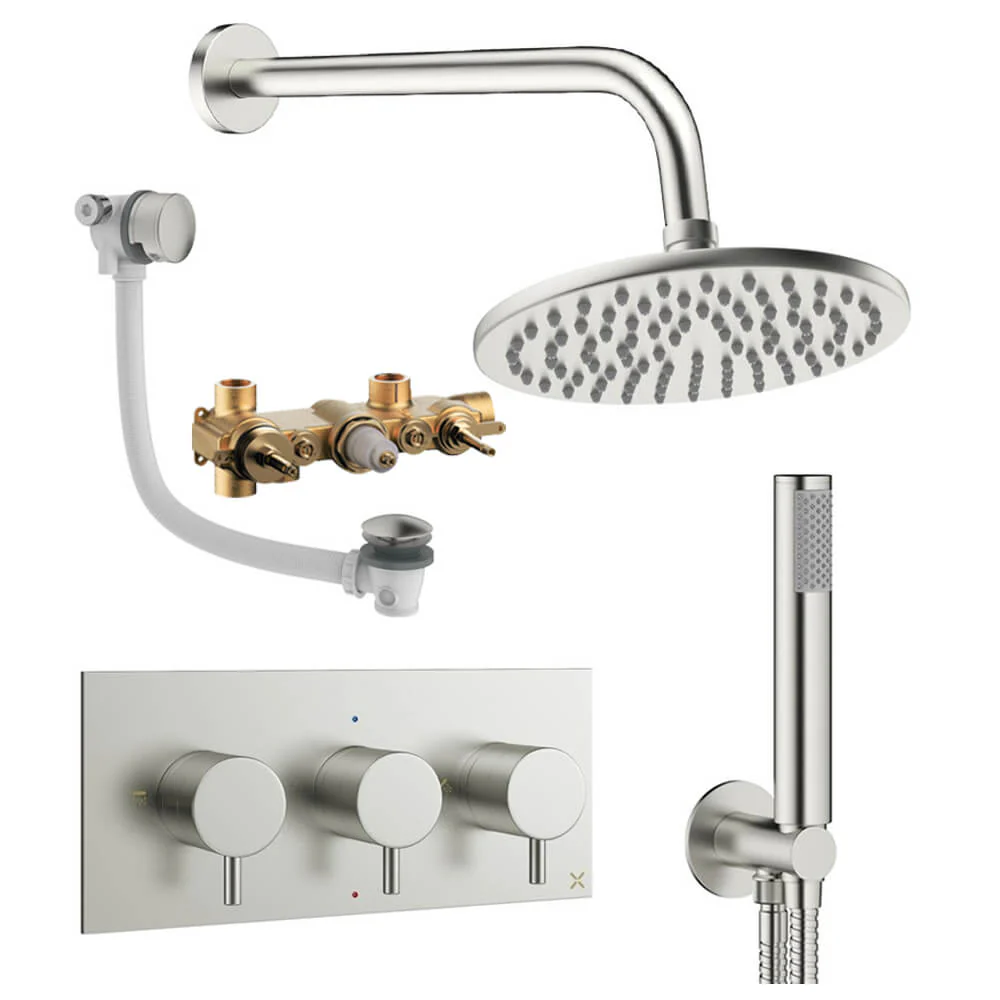

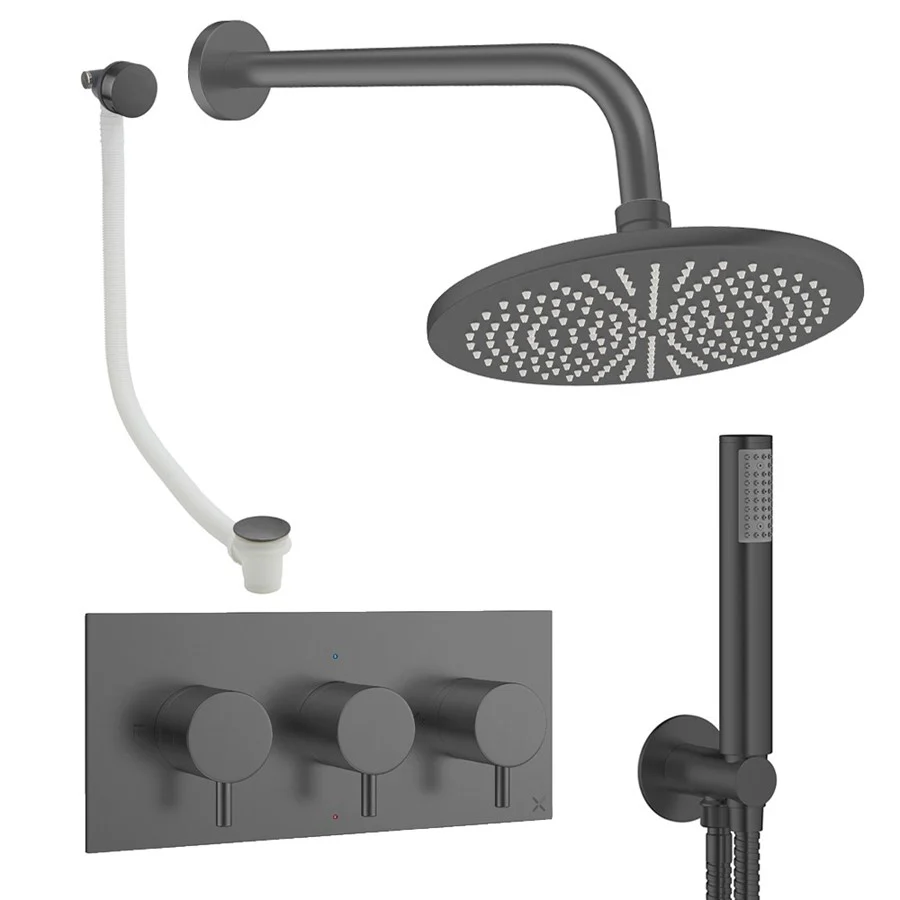

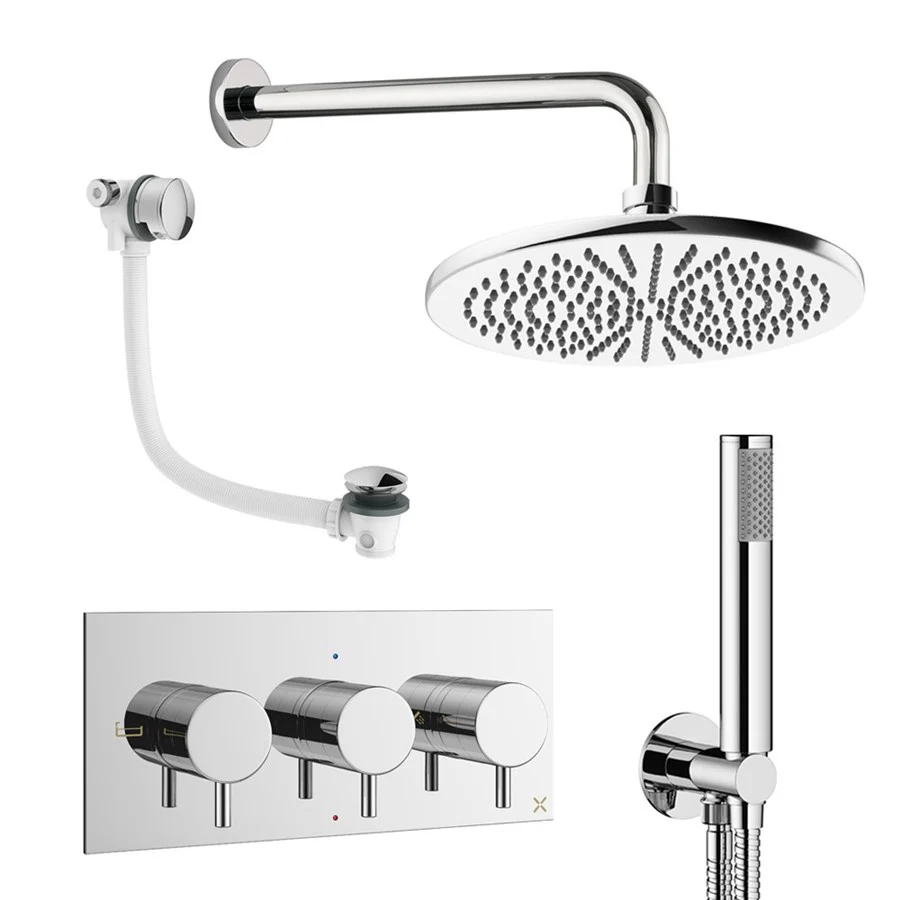

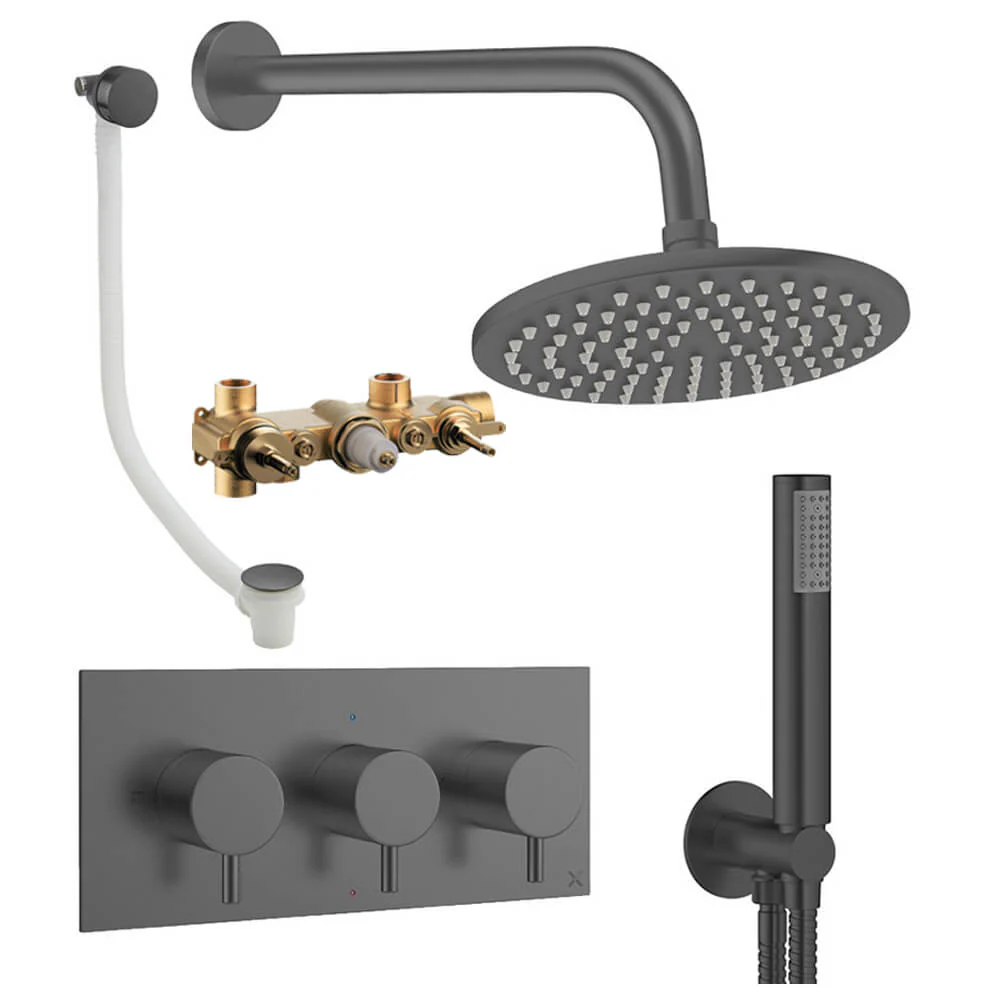

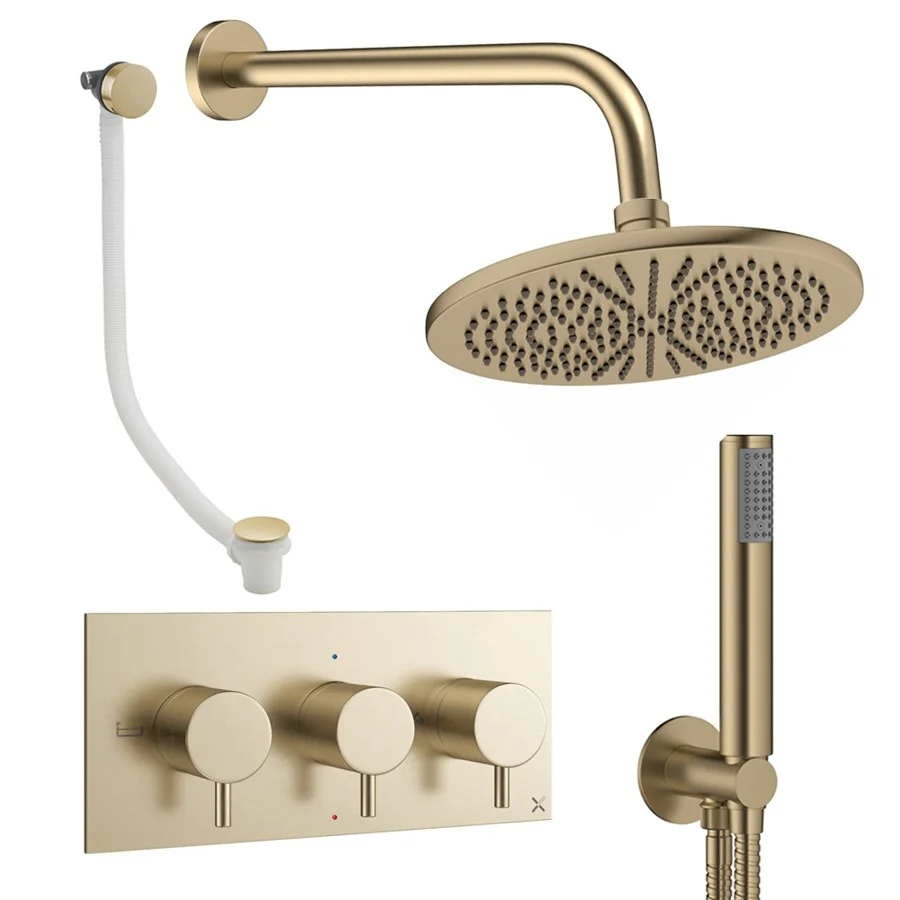

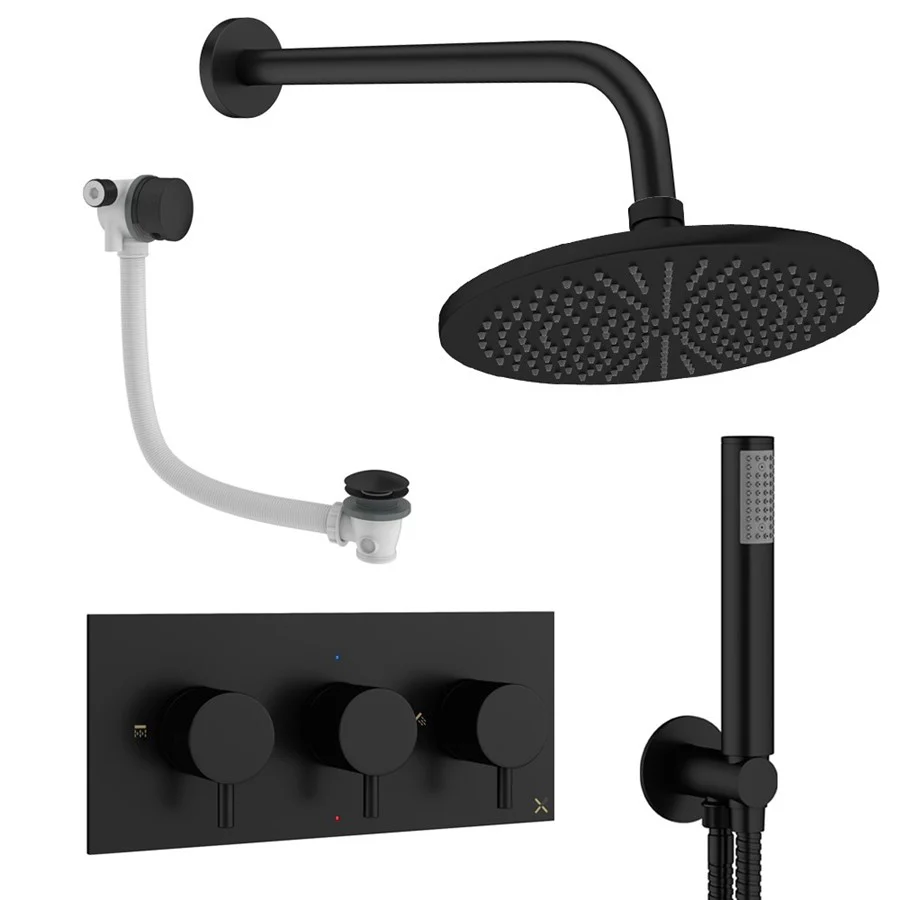

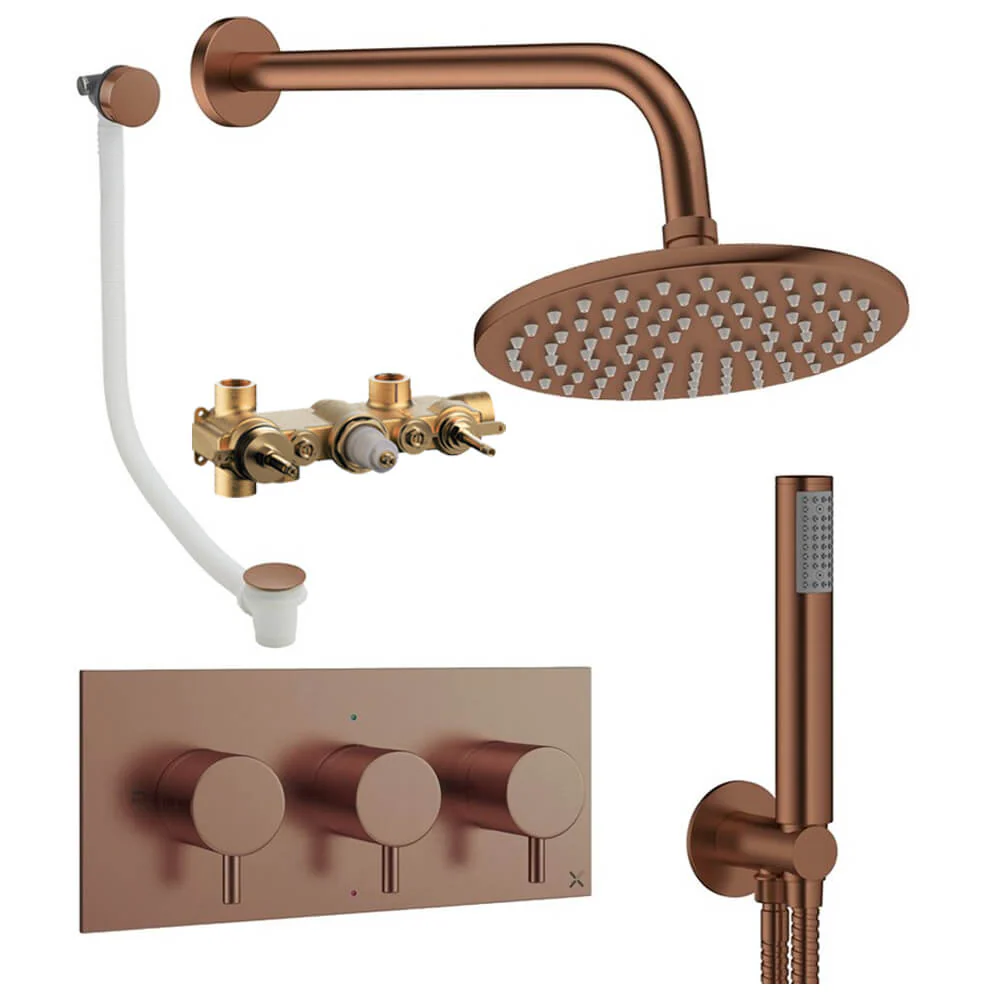

The Crosswater Design Shower Set 8 is a complete modern showering solution designed to deliver exceptional performance, safety and style in contemporary bathrooms. Manufactured from durable brass and ABS materials, this premium shower set combines reliable engineering with a sleek, minimalist design. It features three outlets and three knob handles, allowing precise control of water flow, temperature and outlet selection. The set requires a minimum operating water pressure of 1 bar and is suitable for high-pressure water systems, ensuring powerful and consistent water delivery. Part of the Crosswater Design collection, this comprehensive set includes a 3 outlet 3 handle concealed thermostatic shower valve in landscape orientation, a round contemporary concealed trim set, a 330mm projection wall mounted shower arm, a contemporary round fixed shower head, a wall outlet with hose and handset bracket, and a bath filler with click clack waste. The shower valve features a backplate measuring 120mm by 275mm and is WRAS, KIWA and TMV2 approved, ensuring compliance with strict quality and safety standards. It incorporates a 3 way diverter valve body without collars for a clean and refined appearance once installed. The trim set includes both diverter and thermostatic cartridges and offers anti scald protection for added safety. It uses G3/4 inch inlet and outlet connections and complies with BS EN 1111:2017 standards. Designed for high water pressure systems, the trim set requires a minimum pressure of 1 bar and can operate above 5 bar, ensuring reliable and efficient performance. The wall mounted shower arm measures 330mm in length and features a G1/2 inch inlet and outlet thread. It is KIWA approved, confirming high manufacturing and performance standards. The contemporary round fixed shower head has a slim 5.8mm thickness and connects through a G1/2 inch inlet thread. It is WRAS approved and suitable for medium and high pressure water systems, requiring a minimum operating pressure of 0.5 bar or above 5 bar.

The shower handset features a single spray pattern for a simple yet effective showering experience. It includes a 1500mm hose and measures 28mm in diameter and 234mm in height. The handset uses a G1/2 inch inlet and outlet connection thread and complies with BS EN 1112:2015 and BS EN 1113:2015 standards. It is designed with modern aesthetics and functional performance in mind and is suitable for medium and high pressure water systems, requiring a minimum of 0.5 bar or above 5 bar. The set also includes a bath filler with a click clack waste system designed for convenience and versatility. The waste has a 41mm projection and uses a G1 1/2 inch inlet and outlet connection thread. It features a 3 in 1 inlet, outlet and overflow function and can operate as either a cable waste system or a simple click clack mechanism that can be activated by pressing with your foot. The flexible overflow design allows easier installation in baths with unusual shapes and is ideal for shower and bath combinations. It is compatible with various styles of visible waste and overflow fittings and requires bath panel valves, recessed valves or a deck mounted diverter for operation. The system is suitable for medium and high water pressure systems and requires a minimum operating pressure of 0.5 bar or above 5 bar. Combining elegant design with advanced thermostatic control and premium approvals, the Crosswater Design Shower Set 8 offers a complete and sophisticated shower and bath solution for modern bathrooms.

Specifications:

• Warranty: 15 Years
• Product Type: Shower Set
• Brand: Crosswater
• Collection: Design
• Style: Modern
• Material: Brass/ABS
• Outlets: 3
• Handles: 3
• Handle Type: Knob
• Minimum Operating Water Pressure: 1 Bar

Special Features:

• Shower Set Includes - 3 Outlet 3 Handle Concealed Thermostatic Shower Valve Landscape, Round Contemporary Concealed Trim Set, Contemporary 330mm Projection Wall Mounted Shower Arm, Contemporary Round Fixed Shower Head, Wall Outlet with Hose and Handset Bracket, Bath Filler with Click Clack Waste

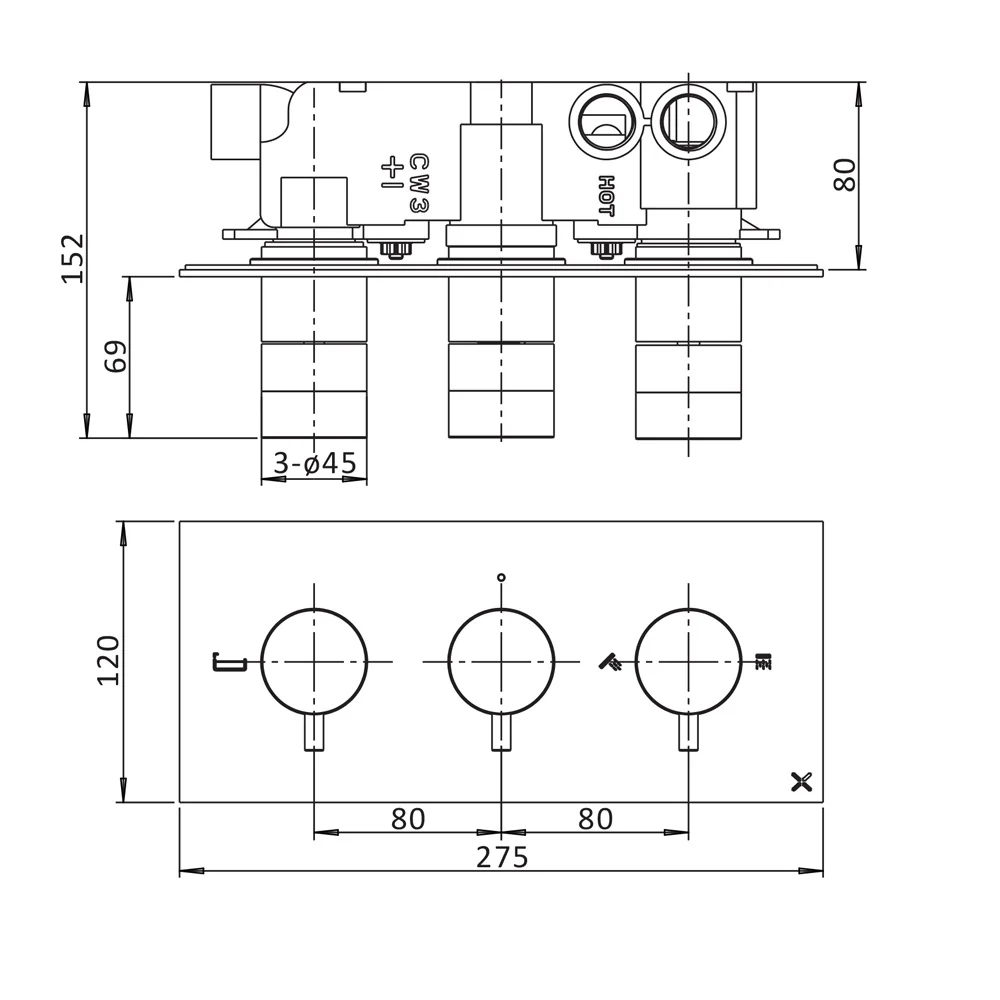

• Shower Valve: Size of Backplate: 120 x 275mm
• Shower Valve: WRAS, KIWA and TMV2-Approved Product
• Shower Valve: 3 Way Diverter Valve Body With No Collars
• Shower Valve: Suitable for High Water Pressure Systems
• Trim Set: Headwork: Diverter and Thermostatic Cartridge
• Trim Set: Inlet/Outlet Connection: G3/4 Inch
• Trim Set: WRAS, KIWA and TMV2-Approved Product
• Trim Set: Standards: BS EN 1111:2017
• Trim Set: Anti-Scald
• Trim Set: Suitable for High Water Pressure Systems
• Trim Set: Requires a Minimum of 1 Bar or Above 5 Bar Water Pressure System

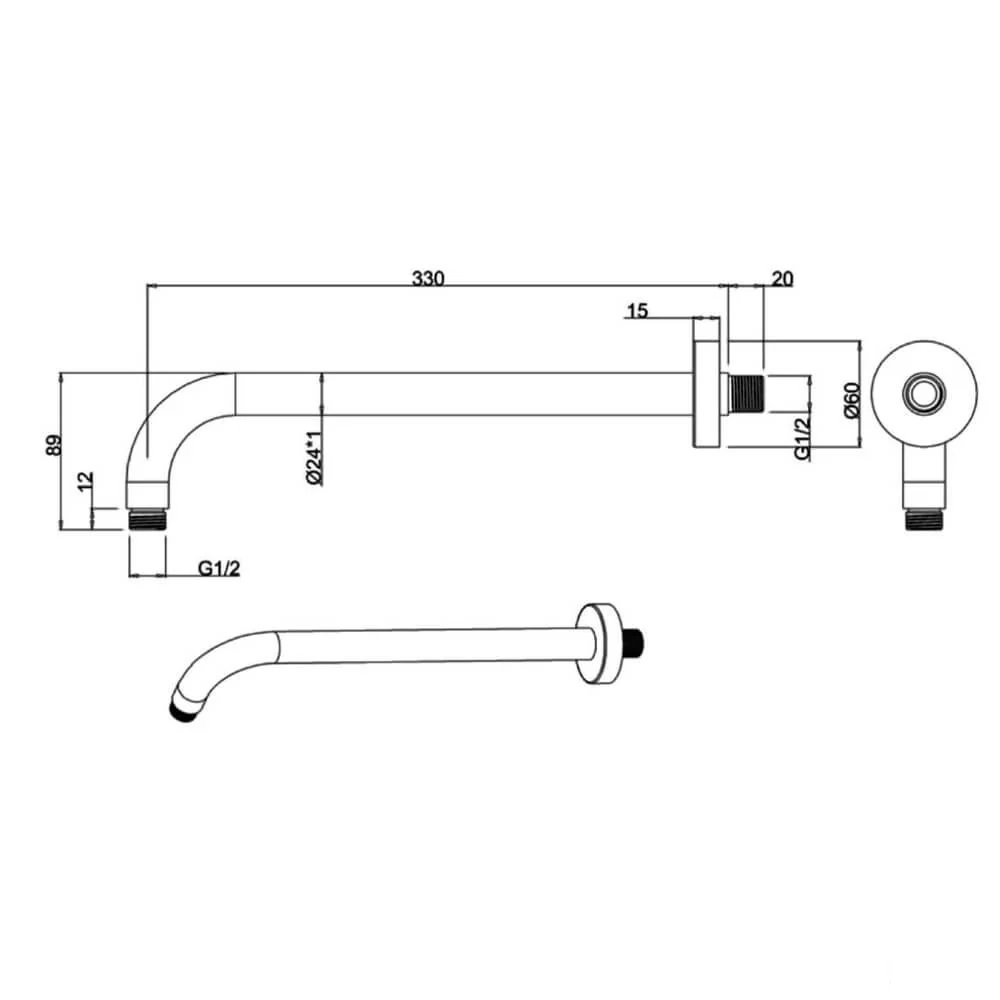

• Shower Arm: Length: 330mm
• Shower Arm: Inlet/Outlet Connection Thread: G1/2-Inch
• Shower Arm: KIWA-Approved
• Shower Head: Head Thickness: 5.8mm
• Shower Head: Inlet Connection Thread: G1/2 Inch
• Shower Head: WRAS Approved
• Shower Head: Suitable for Medium and High Water Pressure Systems
• Shower Head: Requires a Minimum of 0.5 Bar or Above 5 Bar Water Pressure System

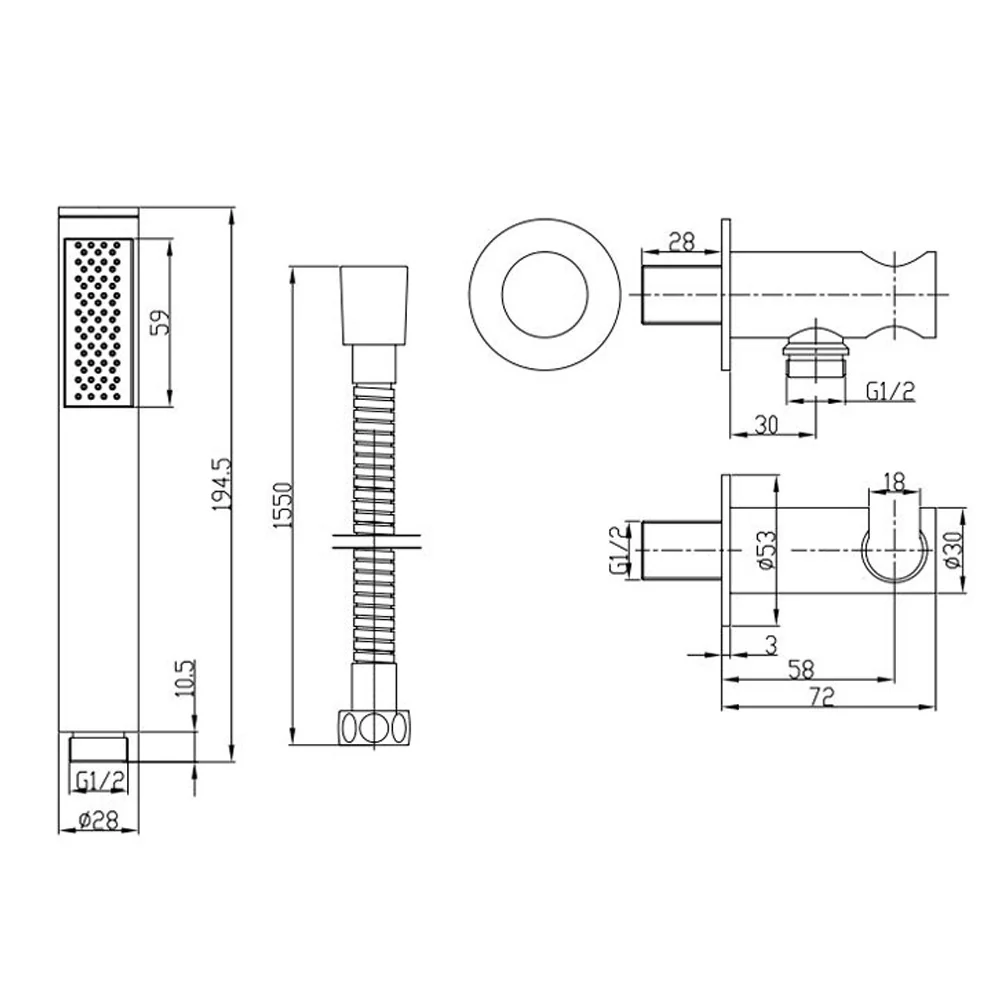

• Shower Handset: Single Spray Pattern
• Shower Handset: Length of Hose: 1500mm
• Size of Handset [mm]: Ø28 x 234mm [Diameter x Height]
• Shower Handset: Inlet/Outlet Connection Thread: G1/2-Inch
• Shower Handset: Standards: BS EN 1112:2015 / BS EN 1113:2015
• Shower Handset: Modern Aesthetics with Functional Design
• Shower Handset: Suitable for Medium and High Water Pressure Systems
• Shower Handset: Requires a Minimum of 0.5 Bar or Above 5 Bar Water Pressure System

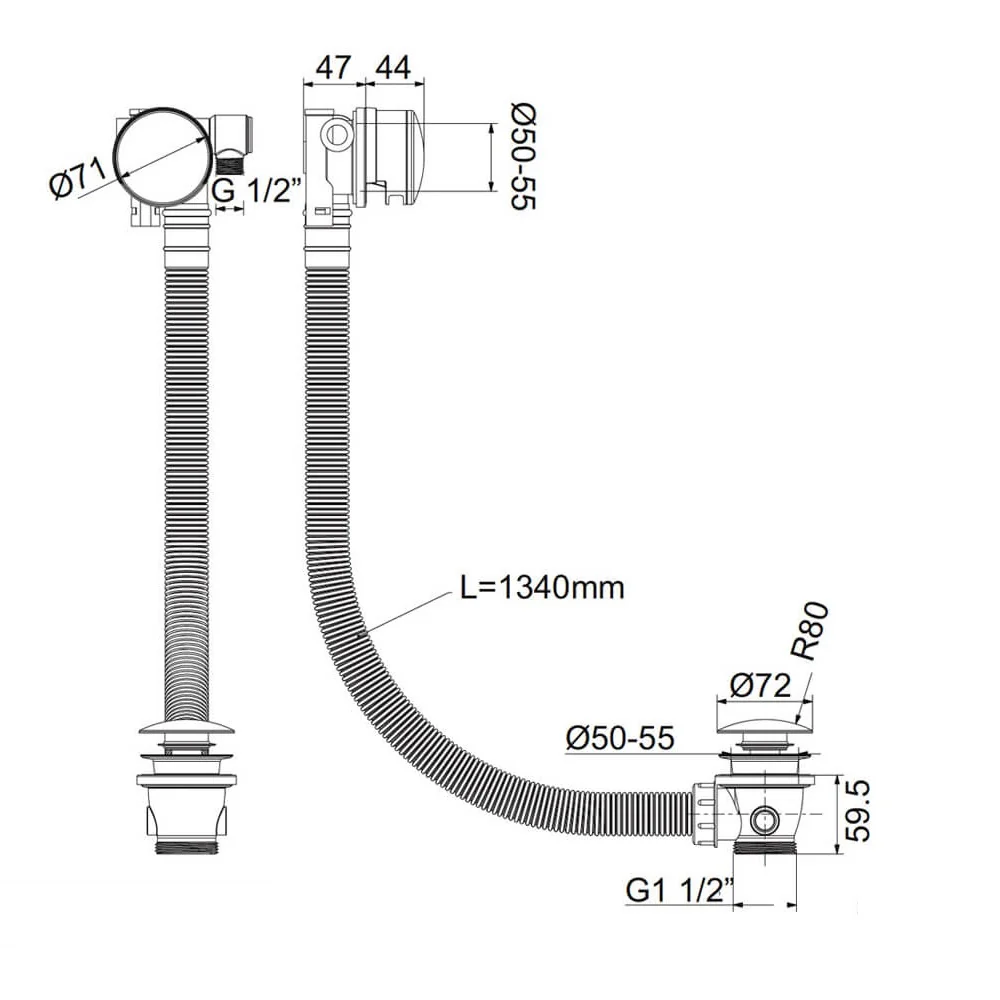

• Click Clack Waste: Projection: 41mm
• Click Clack Waste: Inlet/Outlet Connection Thread: G1 1/2-Inch
• Click Clack Waste: 3-in-1 Inlet/Outlet and Overflow Function
• Click Clack Waste: Smooth and Simple Cable Waste Operation or Click-Clack Waste - Simply Press with Your Foot
• Click Clack Waste: Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
• Click Clack Waste: Ideal for Shower and Bath Combinations
• Click Clack Waste: Various Styles of Visible Waste and Overflow Fittings
• Click Clack Waste: Requires Bath Panel Valves, Recessed Valves, or Deck-Mounted Diverter
• Click Clack Waste: Suitable for Medium and High Water Pressure Systems
• Click Clack Waste: Requires a Minimum of 0.5 Bar or Above 5 Bar Water Pressure System


Assembling instruction for Shower Valve

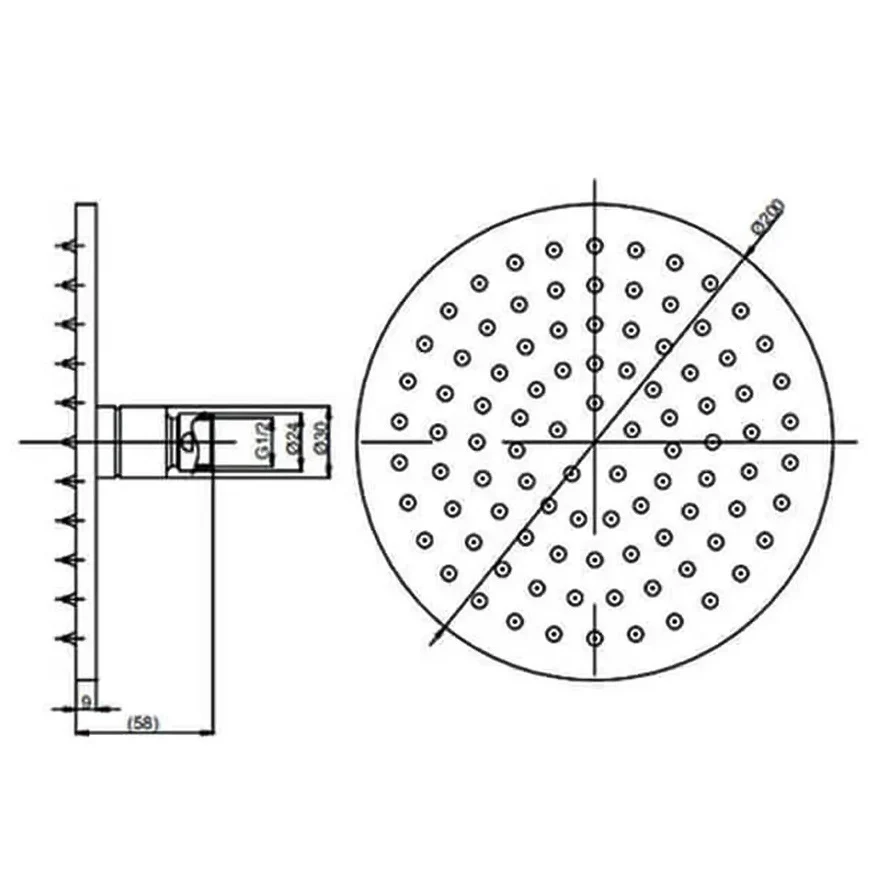

Assembling instruction for 200mm Shower Head

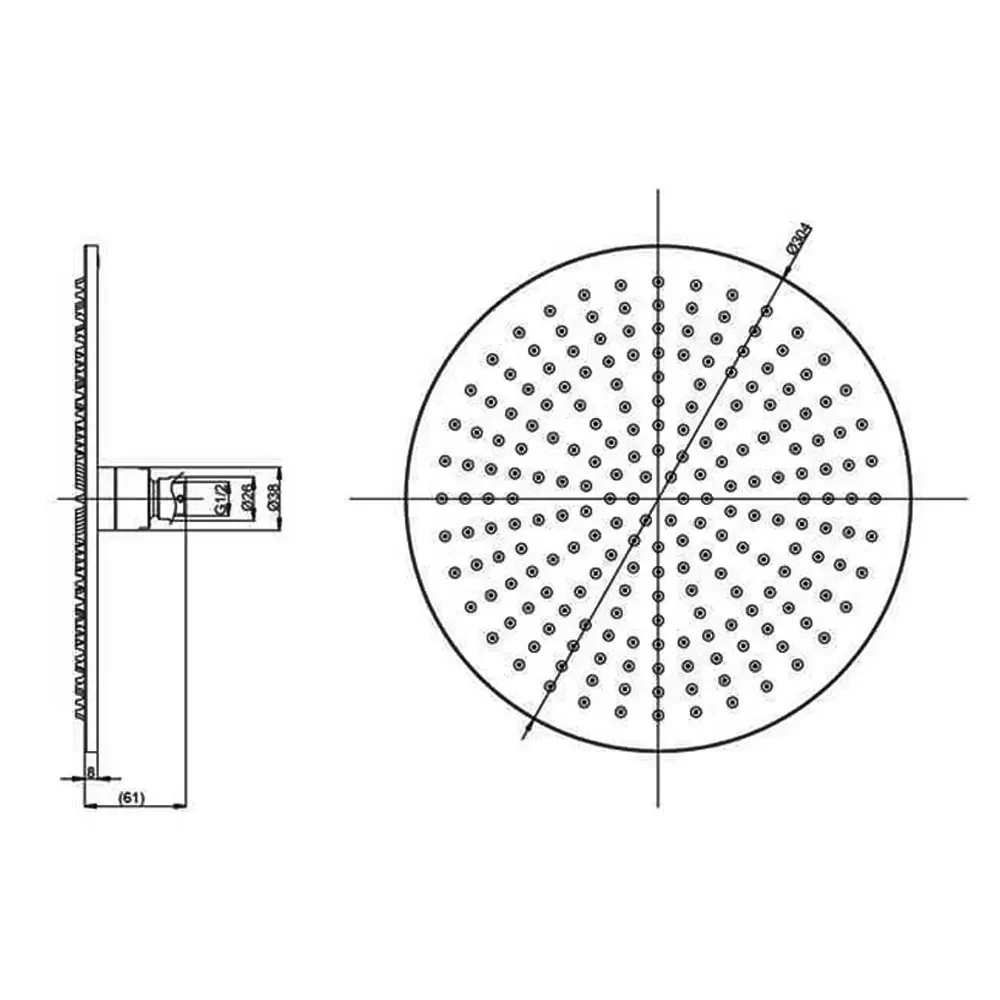

Assembling instruction for 300mm Shower Head

Assembling instruction for Shower Kit

Assembling instruction for Bath Filler Waste

Datasheet for Shower Arm

Datasheet for Trimset

Datasheet for Shower Kit

Datasheet for 200mm Shower Head

Datasheet for 300mm Shower Head

Datasheet for Bath Filler Waste

Technical Drawing

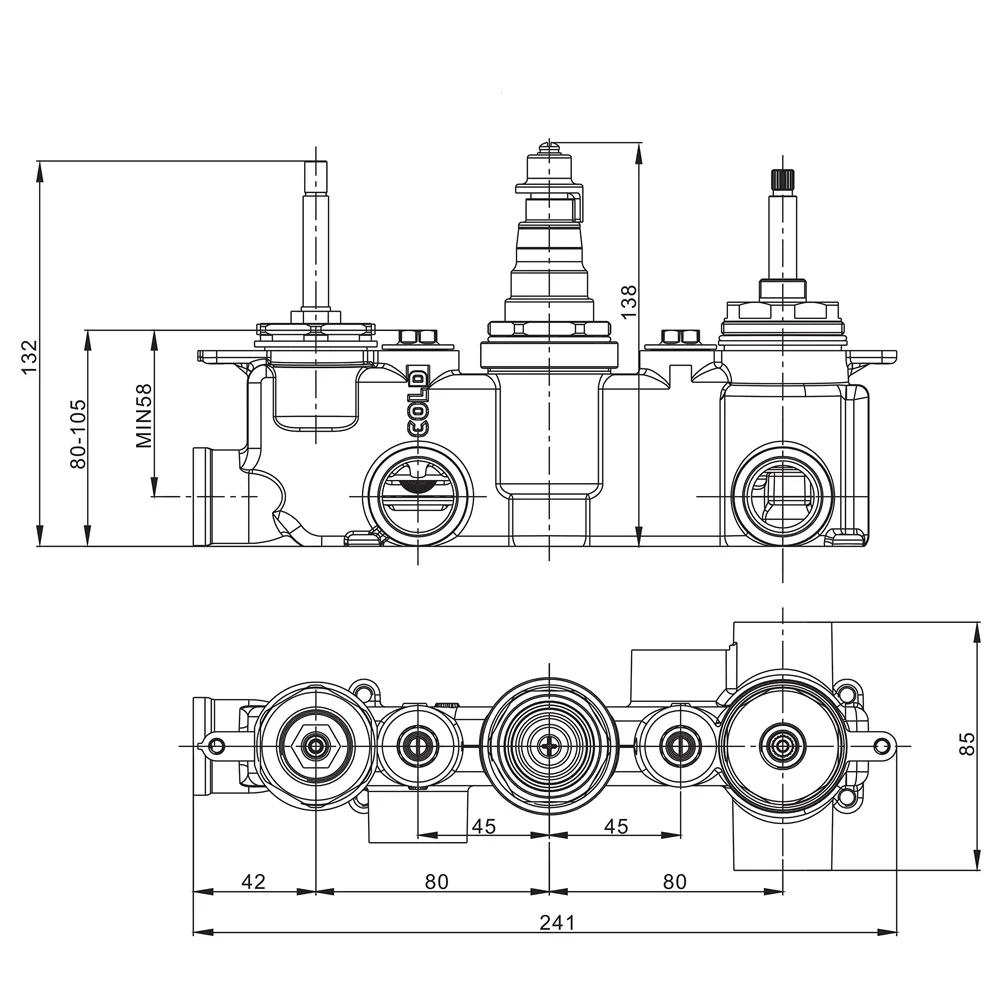

Shower Valve
