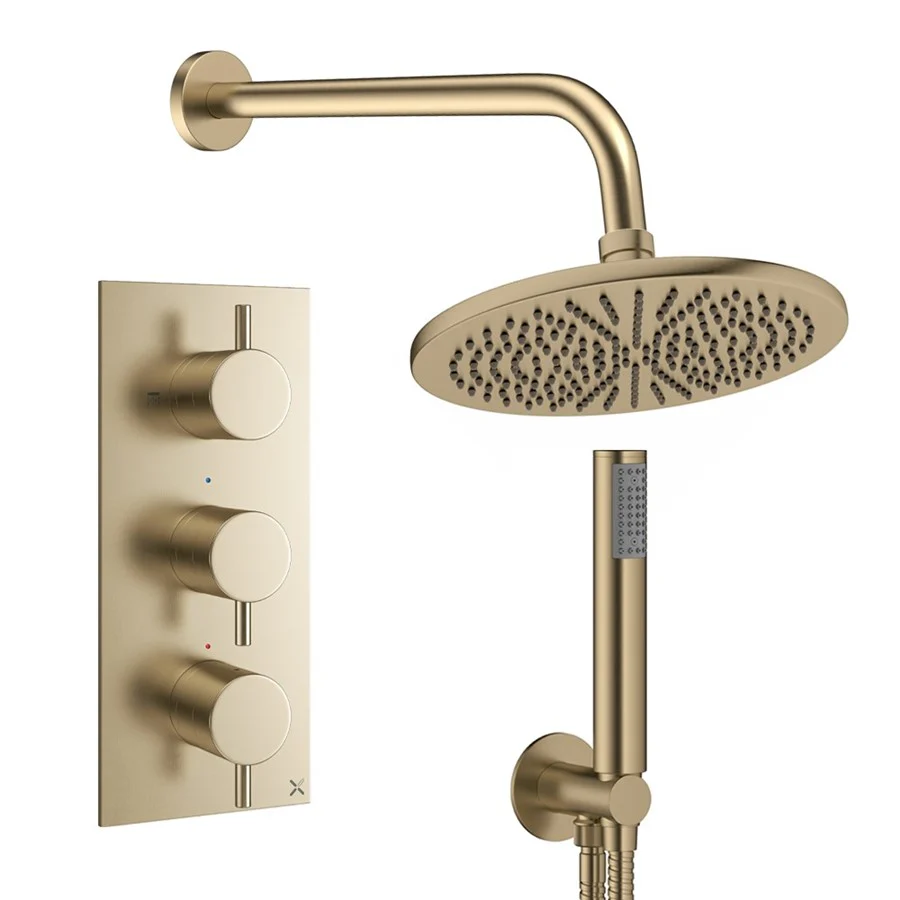

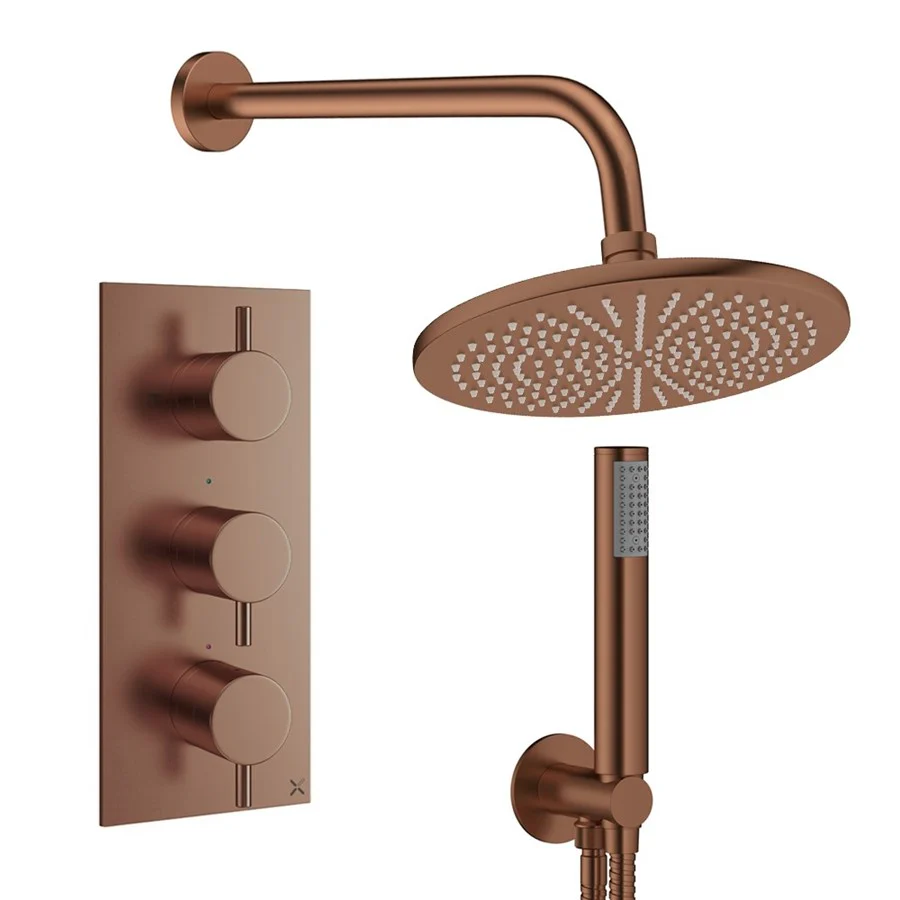

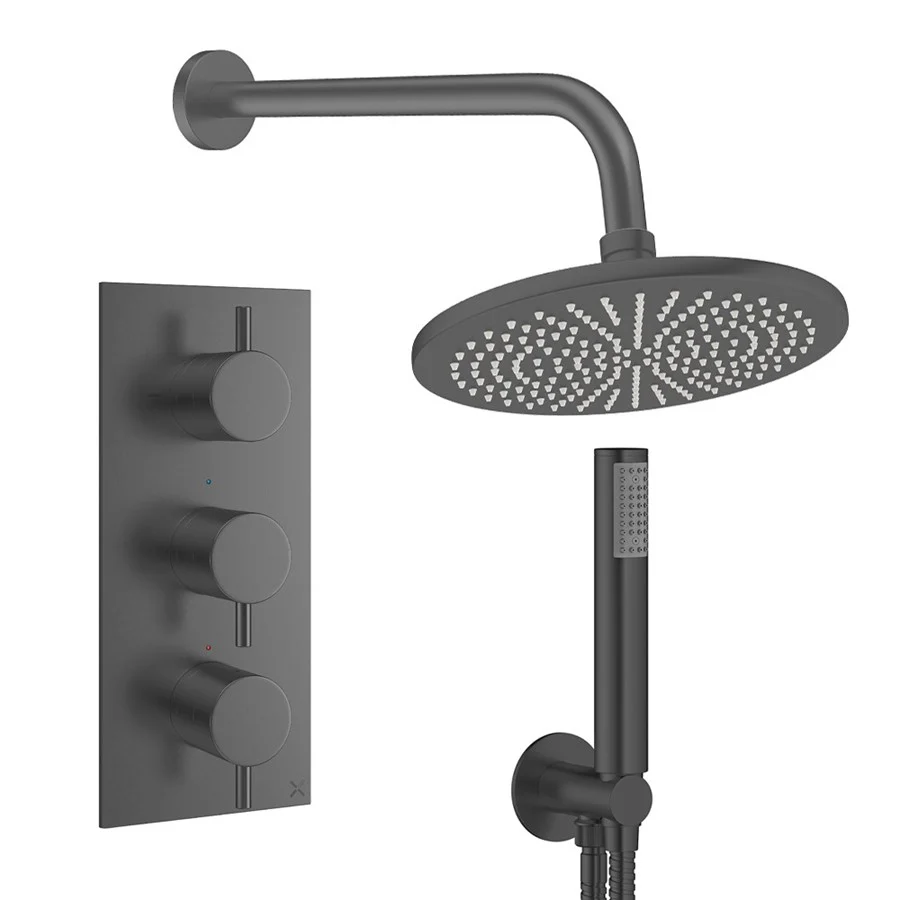

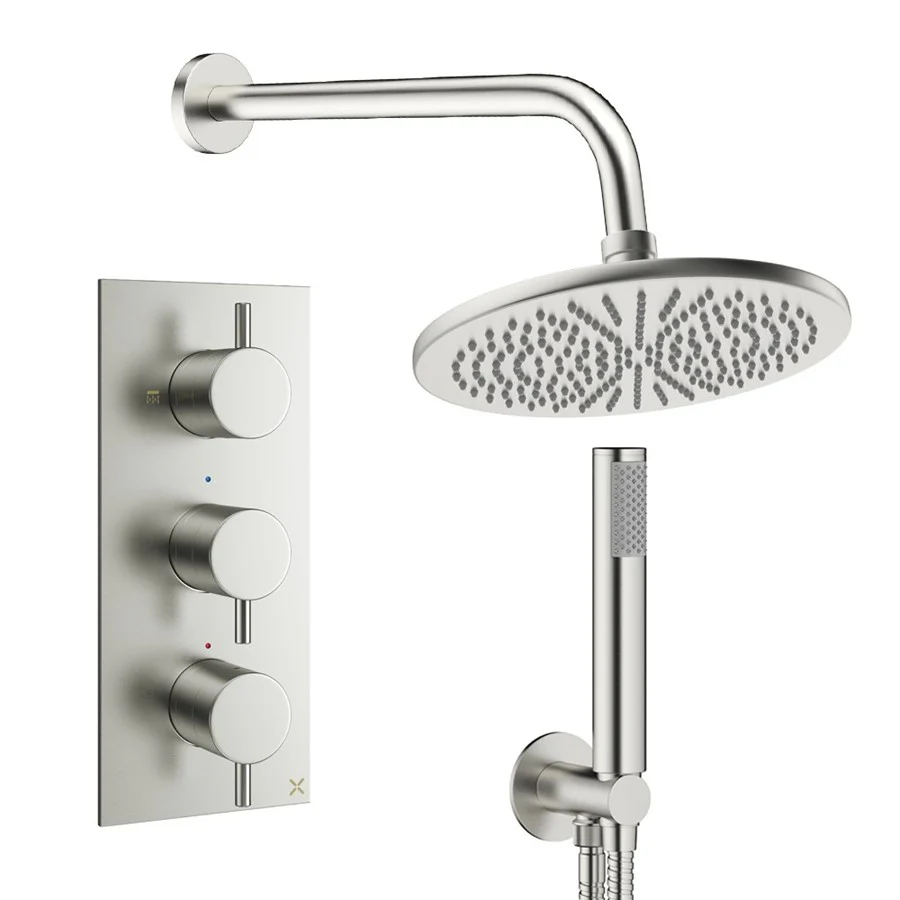

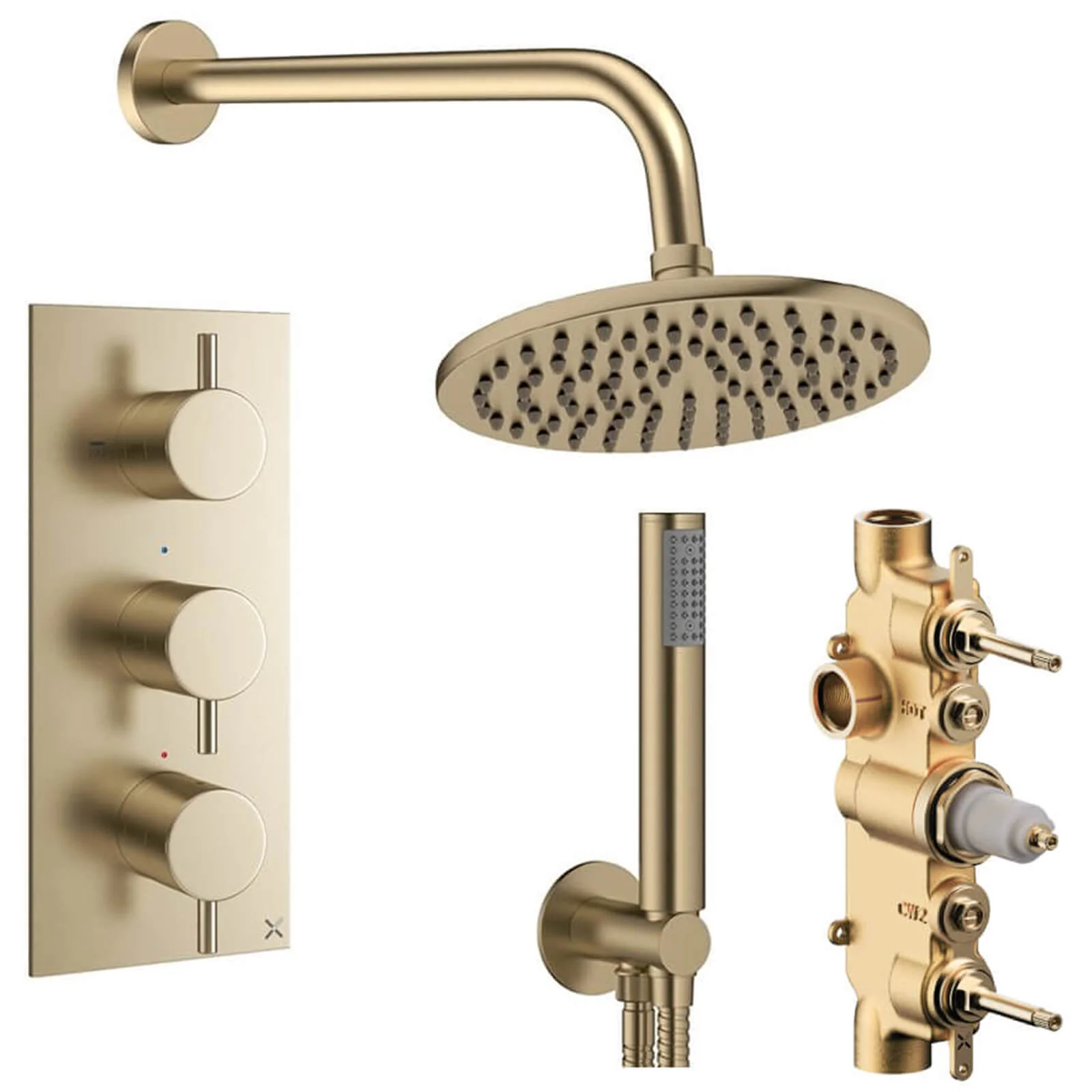

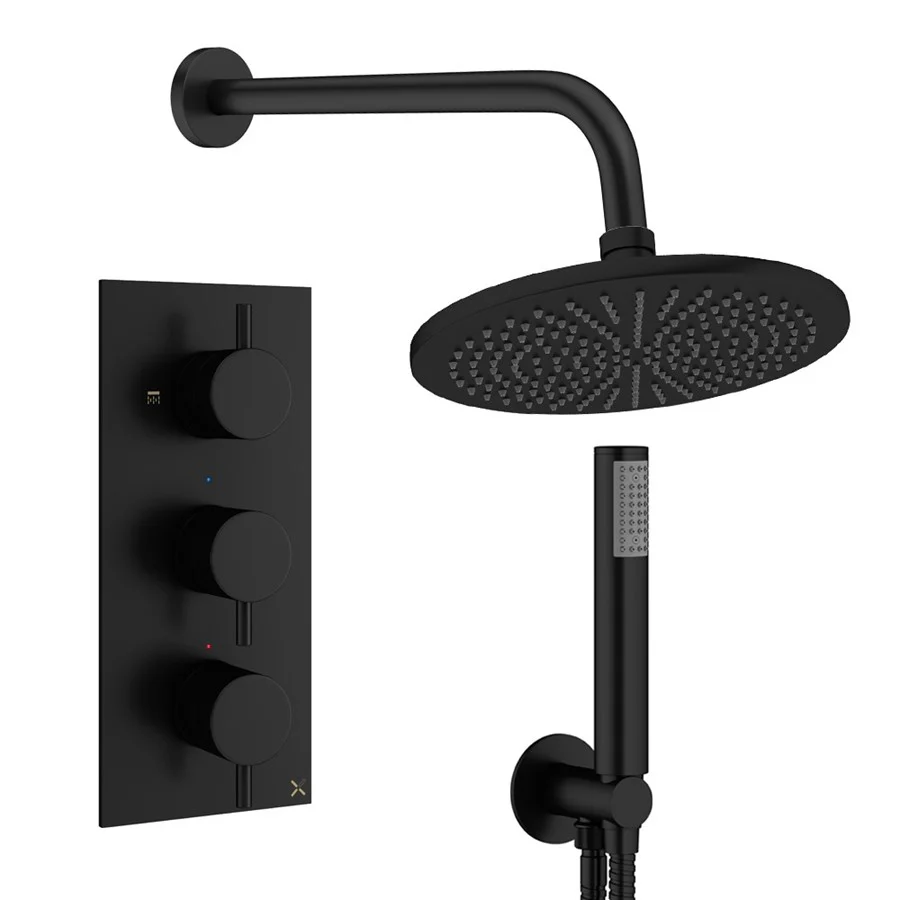

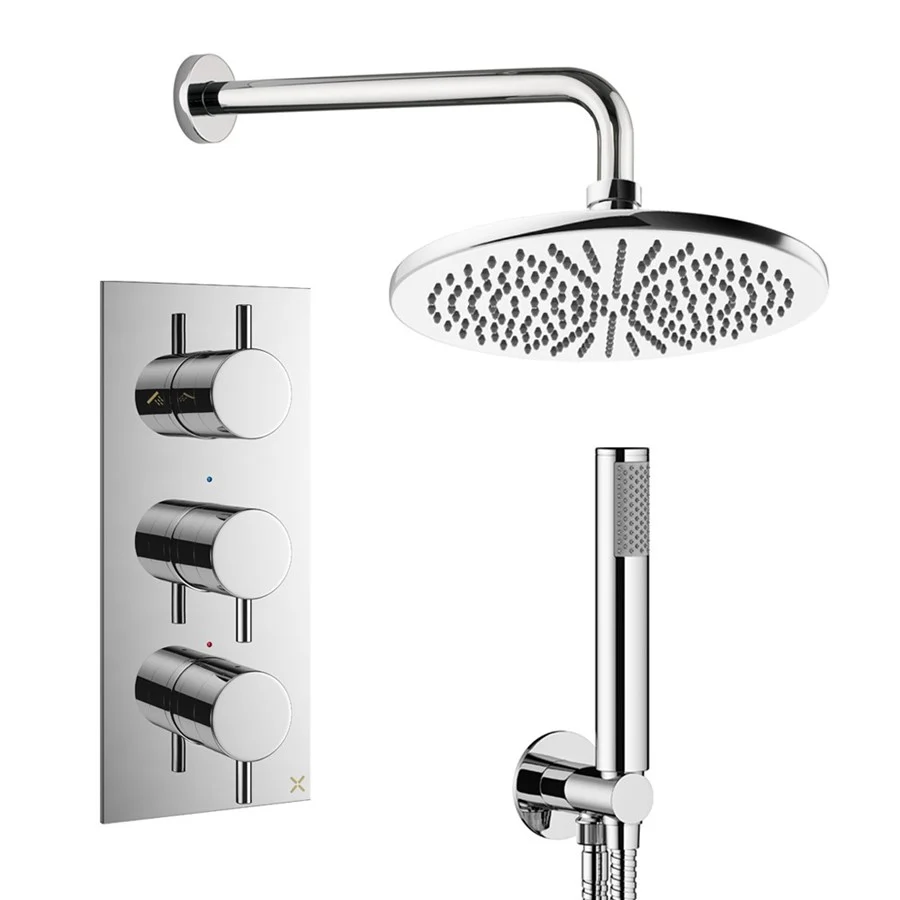

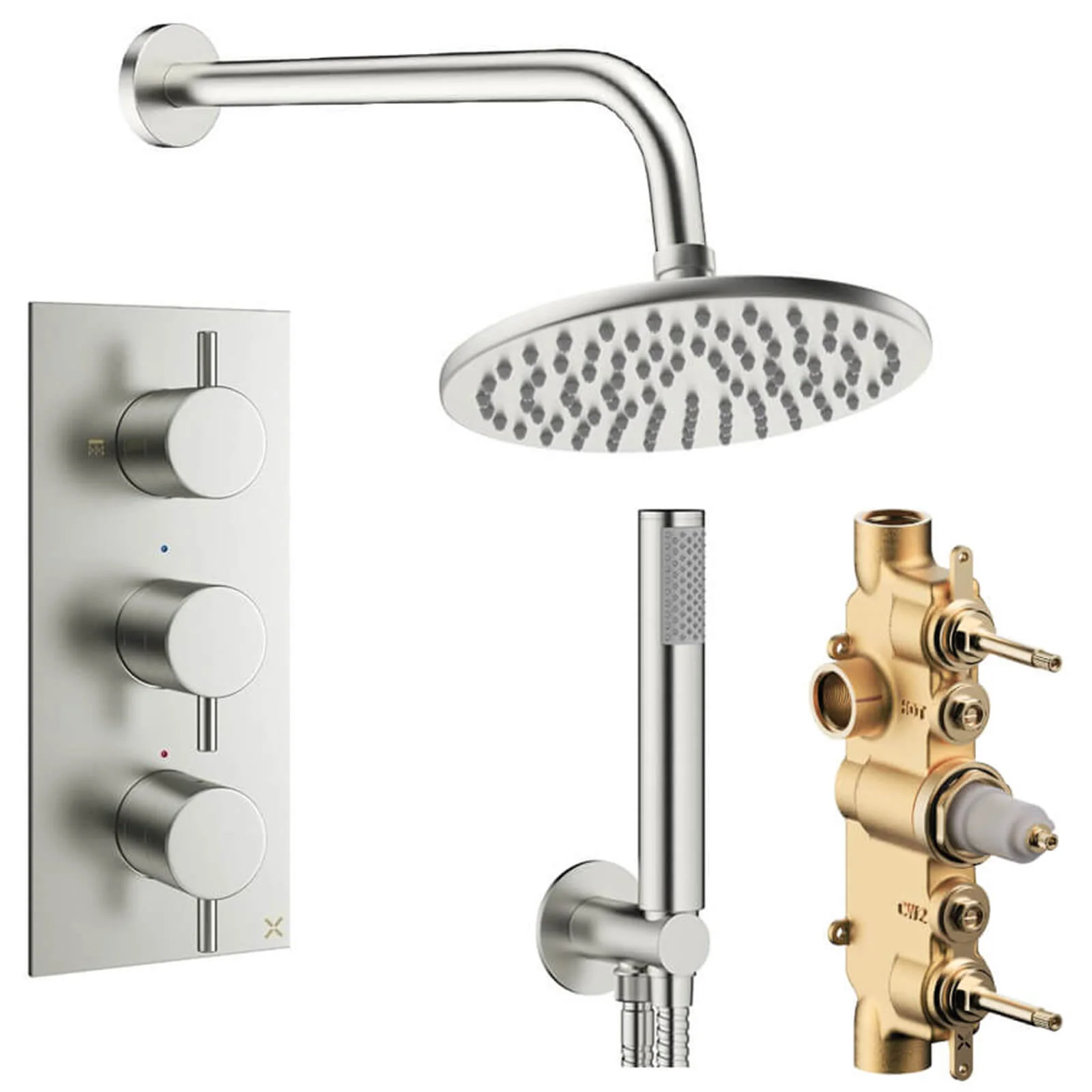

The Crosswater Design Shower Set 7 is a stylish and functional showering solution created for modern bathrooms, combining advanced thermostatic performance with contemporary aesthetics. Manufactured from durable brass and ABS materials, this shower set is designed to deliver reliable performance while enhancing the overall look of your bathroom space. Part of the Crosswater Design collection, this complete shower set includes a 2 outlet 3 handle concealed thermostatic shower valve portrait, a round contemporary 2 control concealed trim set, a wall outlet with hose and handset bracket, a contemporary round fixed shower head and a 330mm projection wall mounted shower arm. This carefully coordinated system provides a seamless and practical showering experience while maintaining a clean and minimal wall-mounted installation. The valve features two outlets and three knob handles, allowing easy switching between functions while offering accurate control over water flow and temperature. Thermostatic temperature control ensures consistent comfort during use, while integrated safety features provide protection against scalding and sudden temperature changes. Designed with convenience in mind, the system includes front access for easy servicing and maintenance, reducing the need for complex disassembly. The backplate measures 120mm in width and 275mm in height, providing a neat and refined finish once installed. The valve is vertically oriented and incorporates a 2 outlet diverter valve body without collars, helping to maintain a streamlined appearance on the wall.

The trim set includes both diverter and thermostatic cartridges and features anti scald protection for added safety. It uses G3/4 inch inlet and outlet connections and is suitable for medium and high water pressure systems. The trim set requires a minimum operating pressure of 0.5 bar and can operate in systems above 5 bar. This shower set is also suitable for low water pressure systems with a minimum operating pressure of 0.2 bar. The 330mm wall mounted shower arm connects via a G1/2 inch inlet and outlet and is KIWA approved, ensuring high manufacturing standards. It is compatible with all Crosswater fixed shower heads, offering flexibility in installation. The contemporary round fixed shower head has a slim 5.8mm thickness and features a G1/2 inch inlet connection. It is WRAS approved and suitable for medium and high pressure water systems, requiring a minimum operating pressure of 0.5 bar or above 5 bar. Completing the set is a sleek hand shower with a single spray pattern designed for simplicity and efficient water delivery. The handset measures 28mm in diameter and 234mm in height and connects via a G1/2 inch inlet. It complies with BS EN 1112:2015 and BS EN 1113:2015 standards and combines modern aesthetics with functional design. The handset is suitable for medium and high pressure systems and requires a minimum operating pressure of 0.5 bar or above 5 bar. With its modern styling, advanced thermostatic control and thoughtfully designed components, the Crosswater Design Shower Set 7 offers a practical and elegant solution for everyday showering comfort. It is backed by a 15 year warranty for long term reliability.

Specifications:

• Warranty: 15 Years
• Product Type: Shower Set
• Brand: Crosswater
• Collection: Design
• Style: Modern
• Material: Brass/ABS
• Outlets: 2
• Handles: 3
• Handle Type: Knob
• Minimum Operating Water Pressure: 0.2 Bar

Special Features:

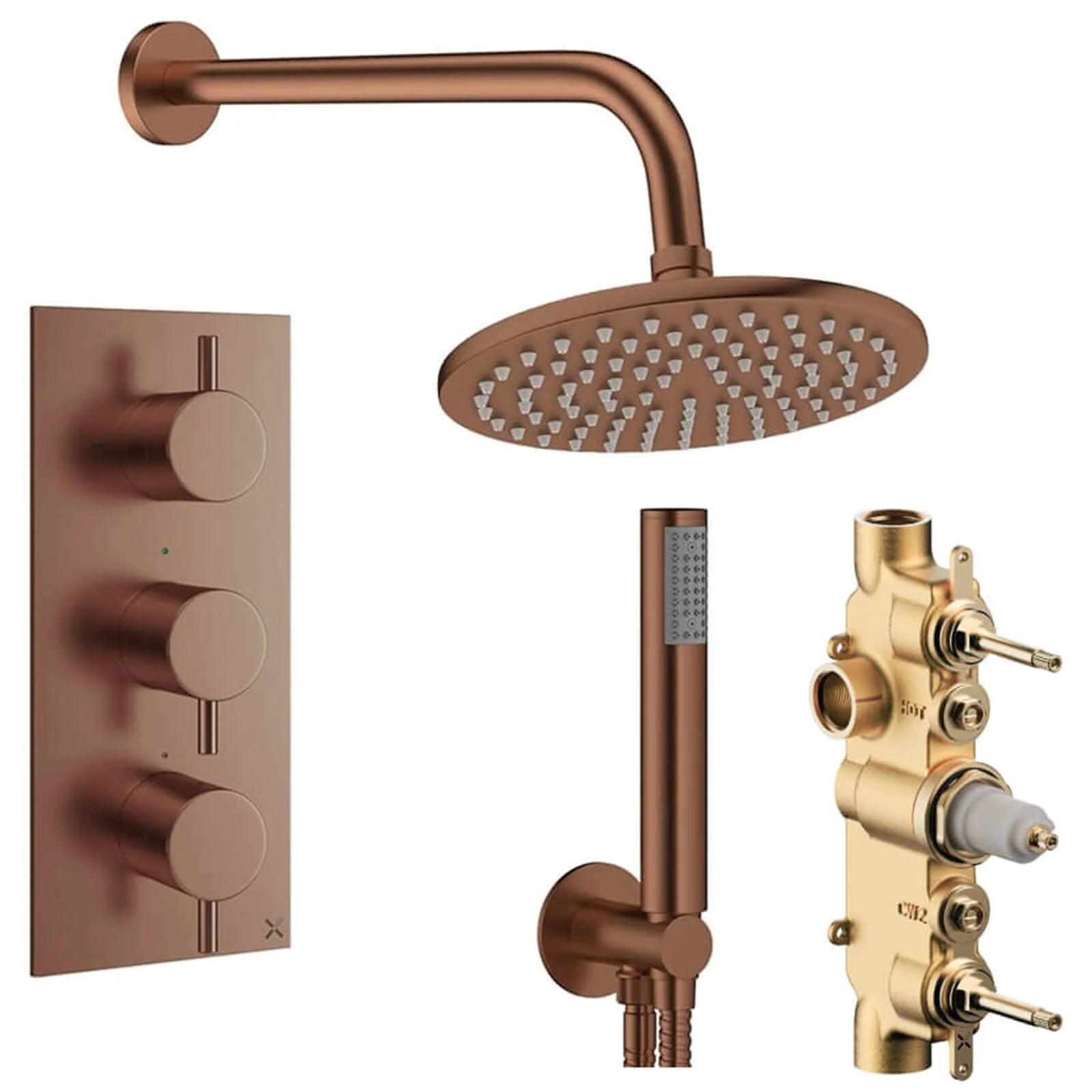

• Shower Set Includes - 2 Outlet 3 Handle Concealed Thermostatic Shower Valve Portrait, Round Contemporary 2 Control Concealed Trim Set, Wall Outlet with Hose and Handset Bracket, Contemporary Round Fixed Shower Head and Contemporary 330mm Projection Wall Mounted Shower Arm
• Easy and accurate control of water flow and temperature is provided for consistent comfort
• Thermostatic Temperature Control
• Front-Access for Easy Servicing and Maintenance
• Protected Against Scalding or Sudden Temperature Changes
• Size of Backplate: 120 x 275mm
• Shower Valve Orientation: Vertical
• 2-Outlet Diverter Valve Body with No Collars
• Suitable for Low Water Pressure Systems
• Trim Set: Headwork: Diverter and Thermostatic Cartridge
• Trim Set: Anti-Scald
• Trim Set: Inlet/Outlet Connection: G3/4 Inch
• Trim Set: Suitable for Medium and High Water Pressure Systems
• Trim Set: Requires a Minimum of 0.5 Bar or Above 5 Bar Water Pressure System

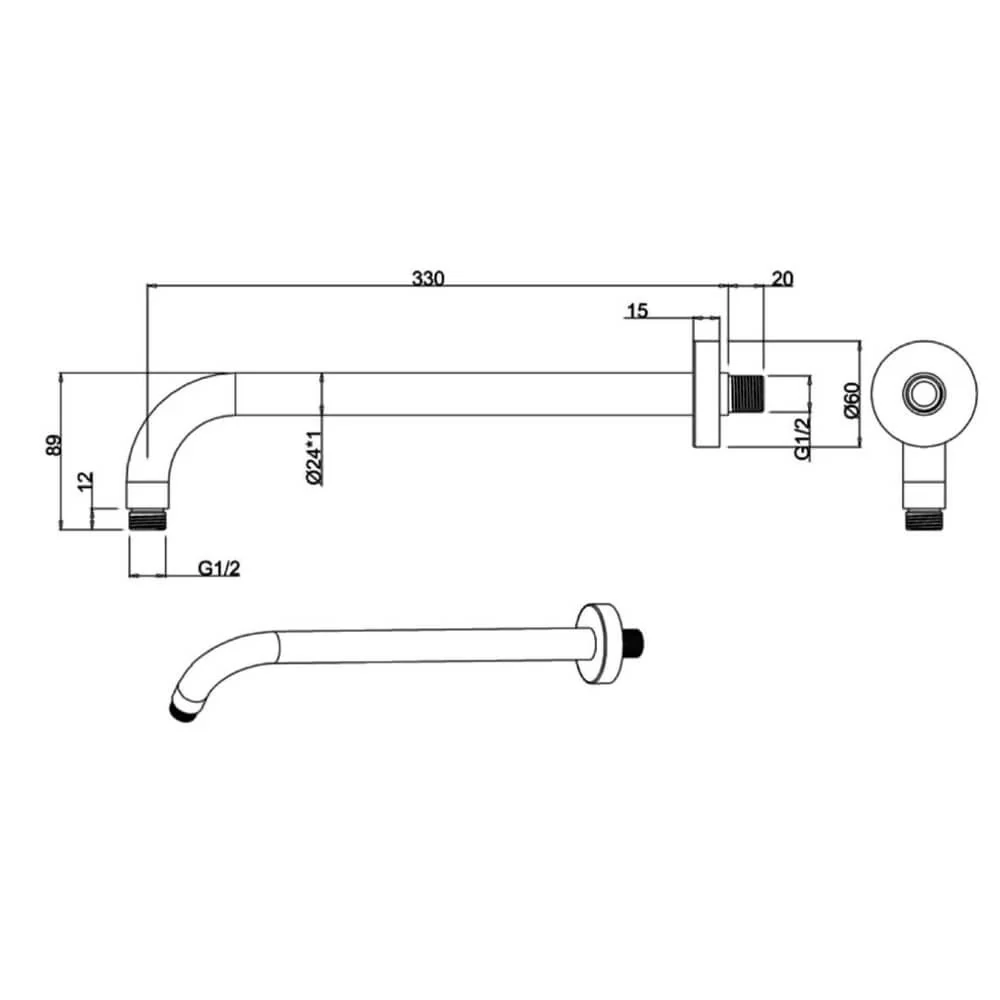

• Shower Arm: Length: 330mm
• Shower Arm: Inlet/Outlet Connection: G1/2-Inch
• Shower Arm: KIWA-Approved
• Shower Arm: Suitable for All Crosswater Fixed Heads

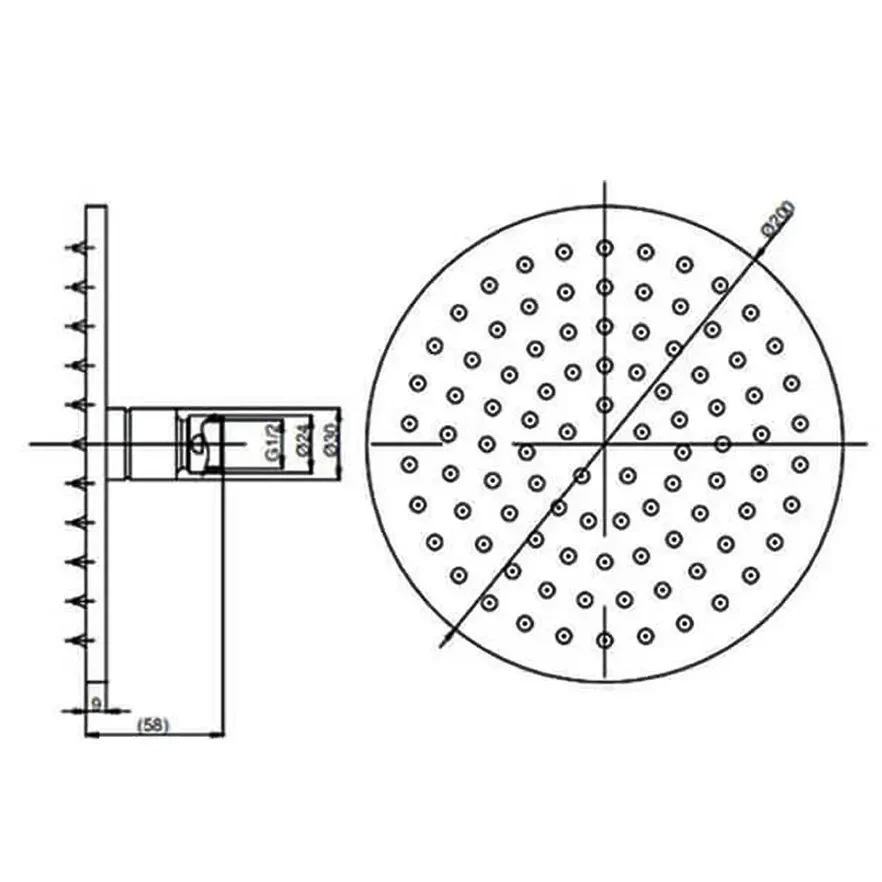

• Shower Head: Head Thickness: 5.8mm
• Shower Head: Inlet Connection: G1/2 Inch
• Shower Head: WRAS Approved
• Shower Head: Suitable for Medium and High Water Pressure Systems
• Shower Head: Requires a Minimum of 0.5 Bar or Above 5 Bar Water Pressure System

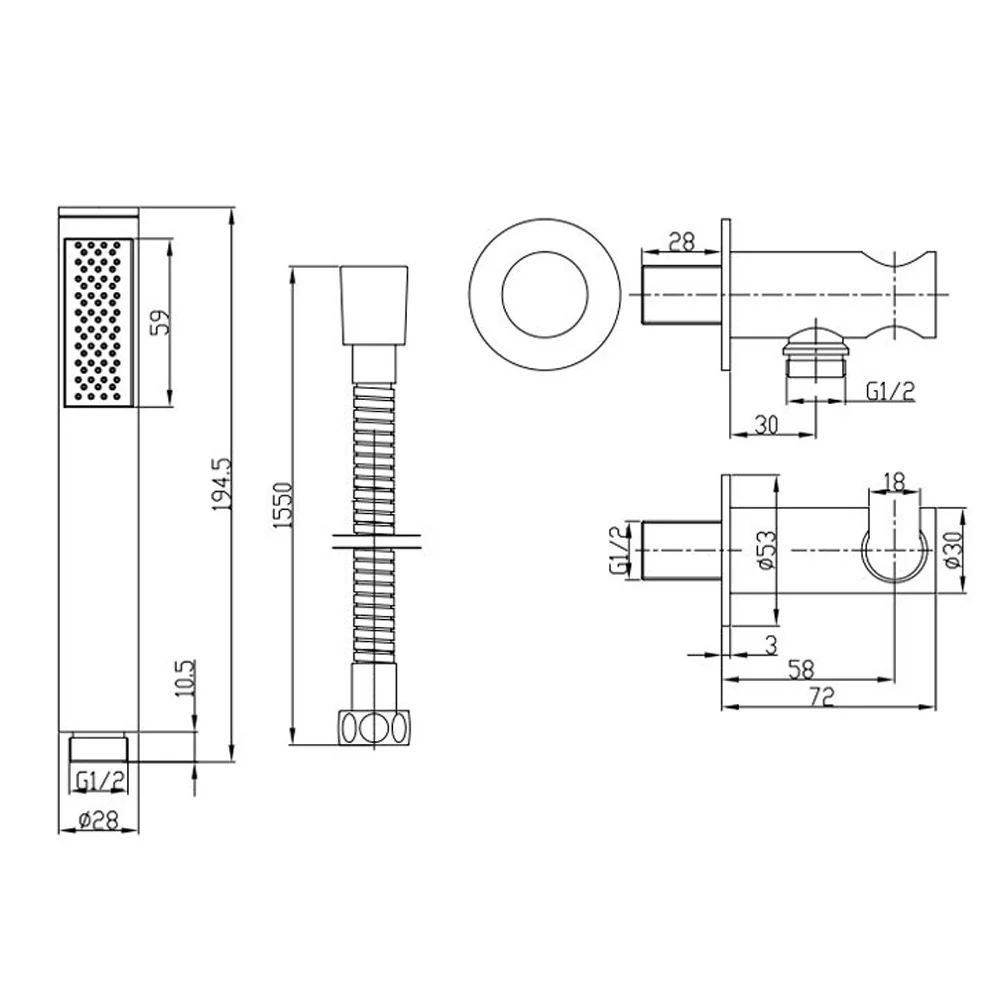

• Shower Handset: Single Spray Pattern
• Shower Handset Size [mm]: Ø28 x 234mm [Diameter x Height]
• Shower Handset: Inlet/Outlet Connection: G1/2-Inch
• Shower Handset: Standards: BS EN 1112:2015 / BS EN 1113:2015
• Shower Handset: Modern Aesthetics with Functional Design
• Shower Handset: Suitable for Medium and High Water Pressure Systems
• Shower Handset: Requires a Minimum of 0.5 Bar or Above 5 Bar Water Pressure System


Assembling instruction for Shower Valve

Assembling instruction for Shower Kit

Assembling instruction for 200mm shower head

Assembling instruction for 300mm shower head

Datasheet for Shower Valve Body

Datasheet for Trimset

Datasheet for Shower Kit

Datasheet for Shower Arm

Datasheet for 200mm Shower Head

Datasheet for 300mm Shower Head

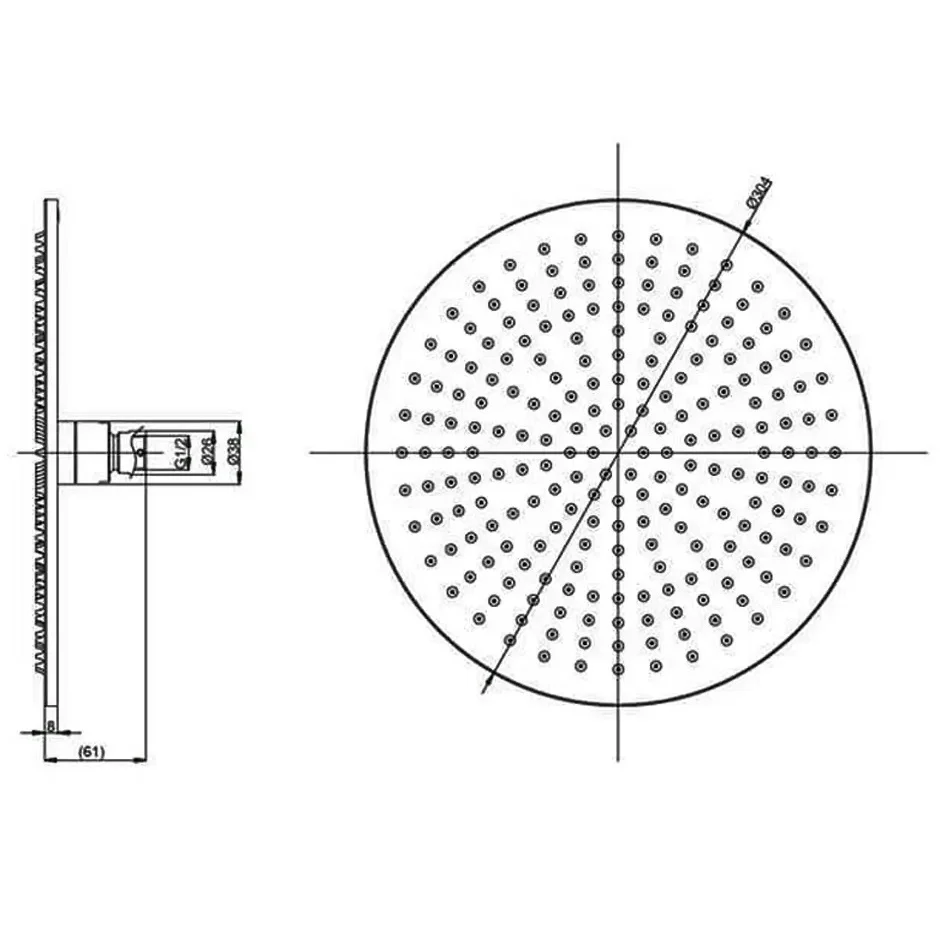

Technical Drawing

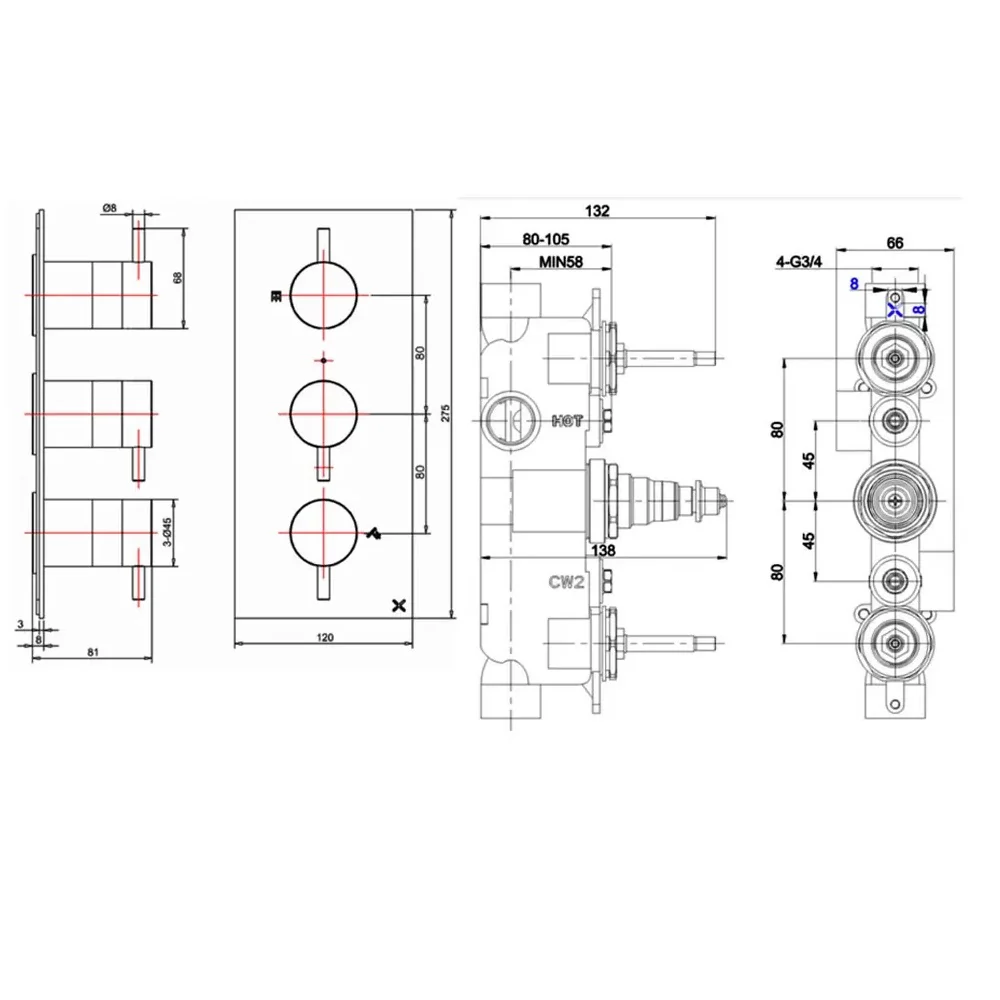

Shower Valve and Trimset
