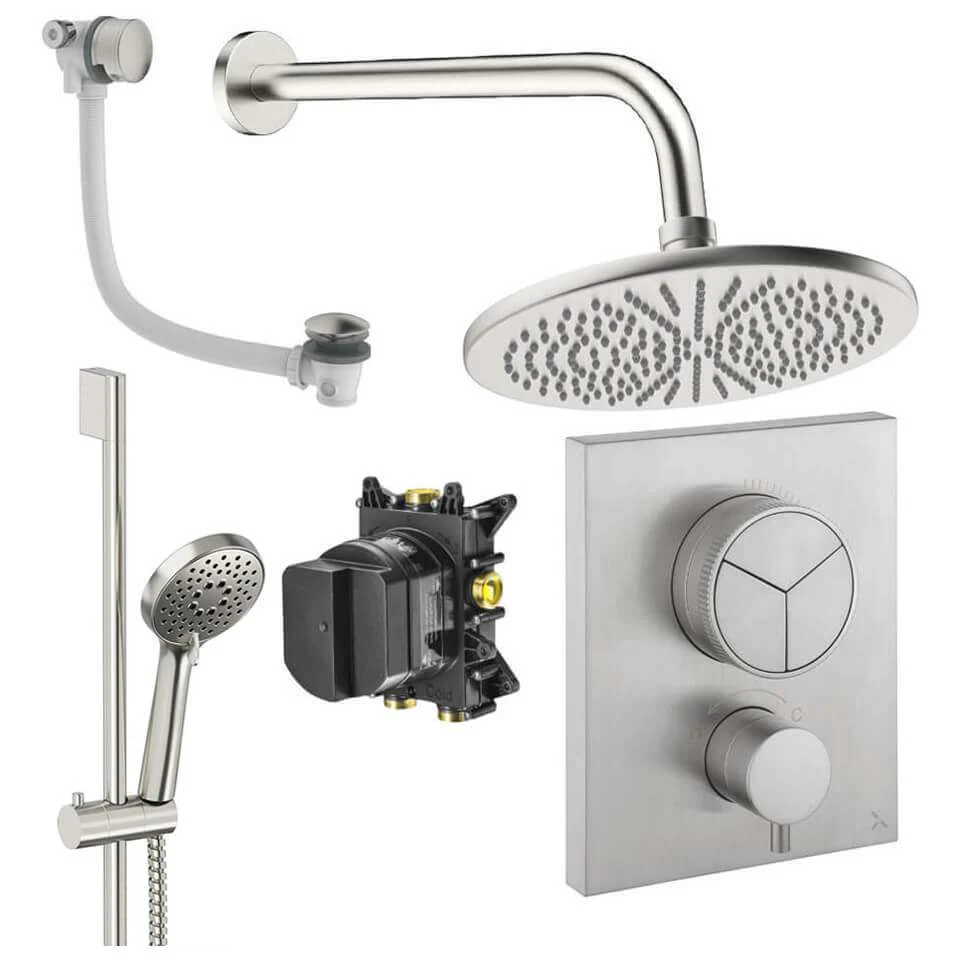

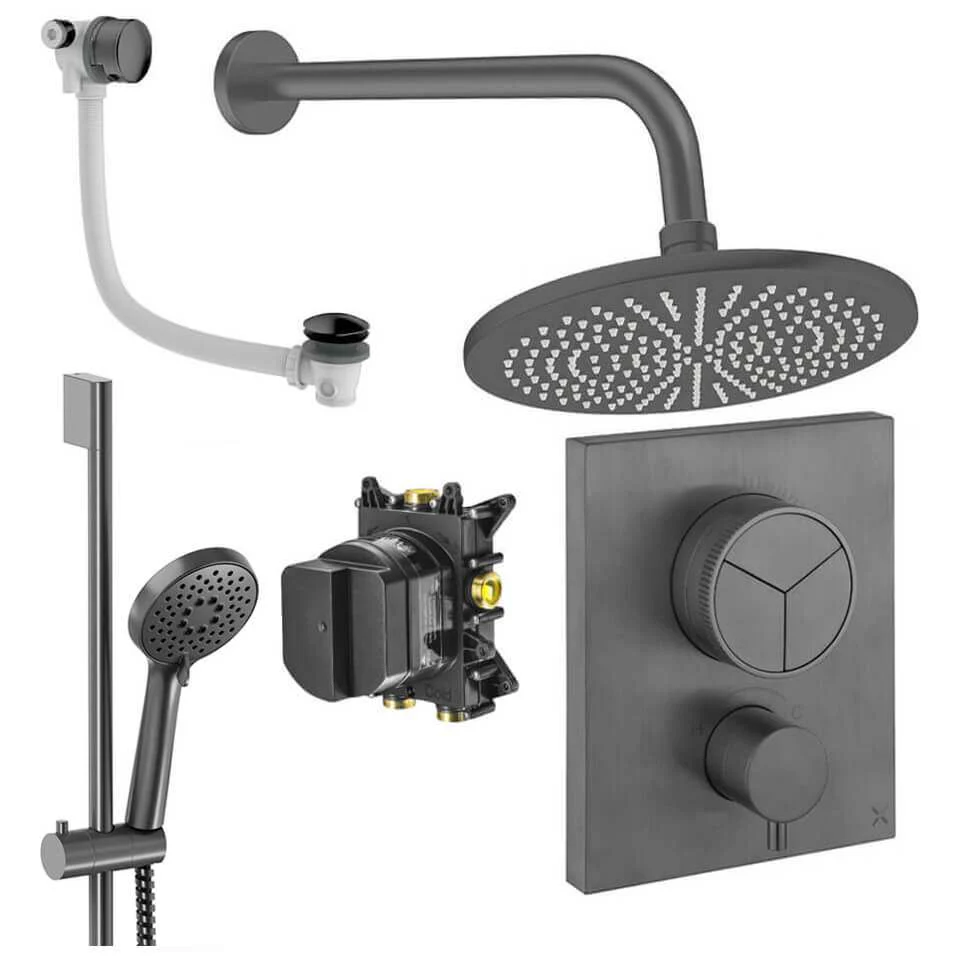

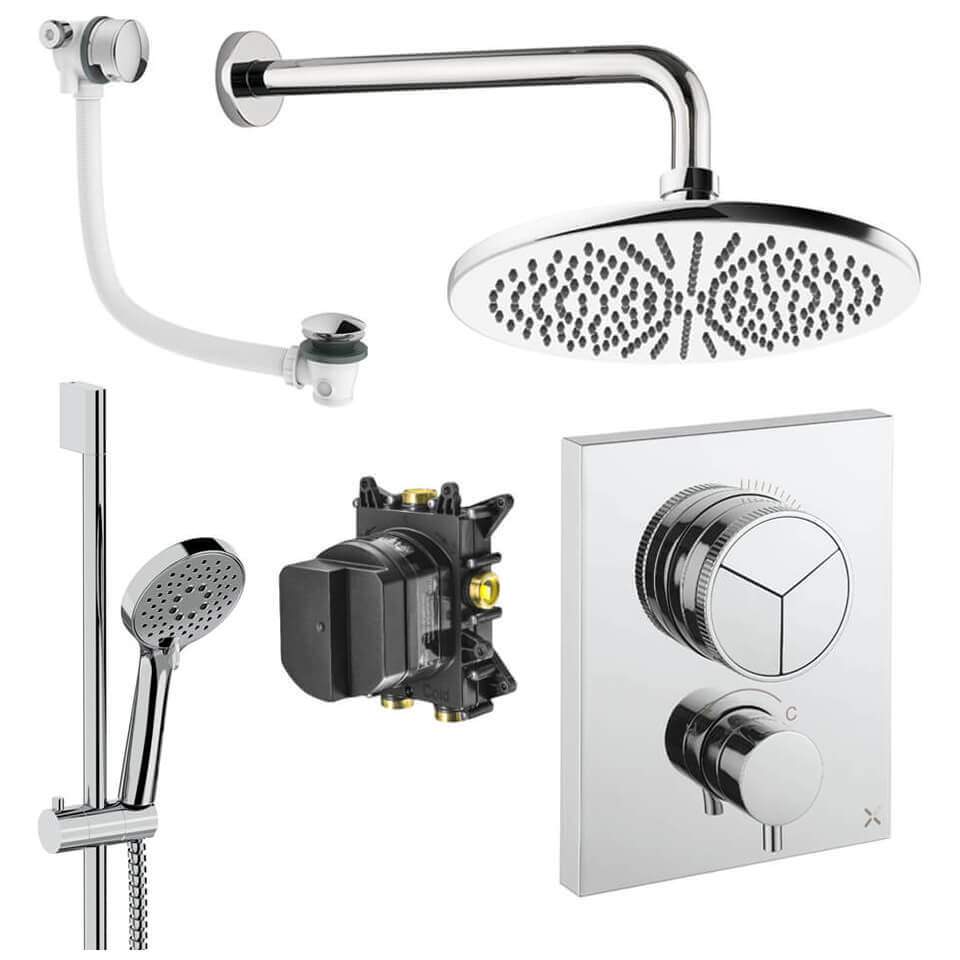

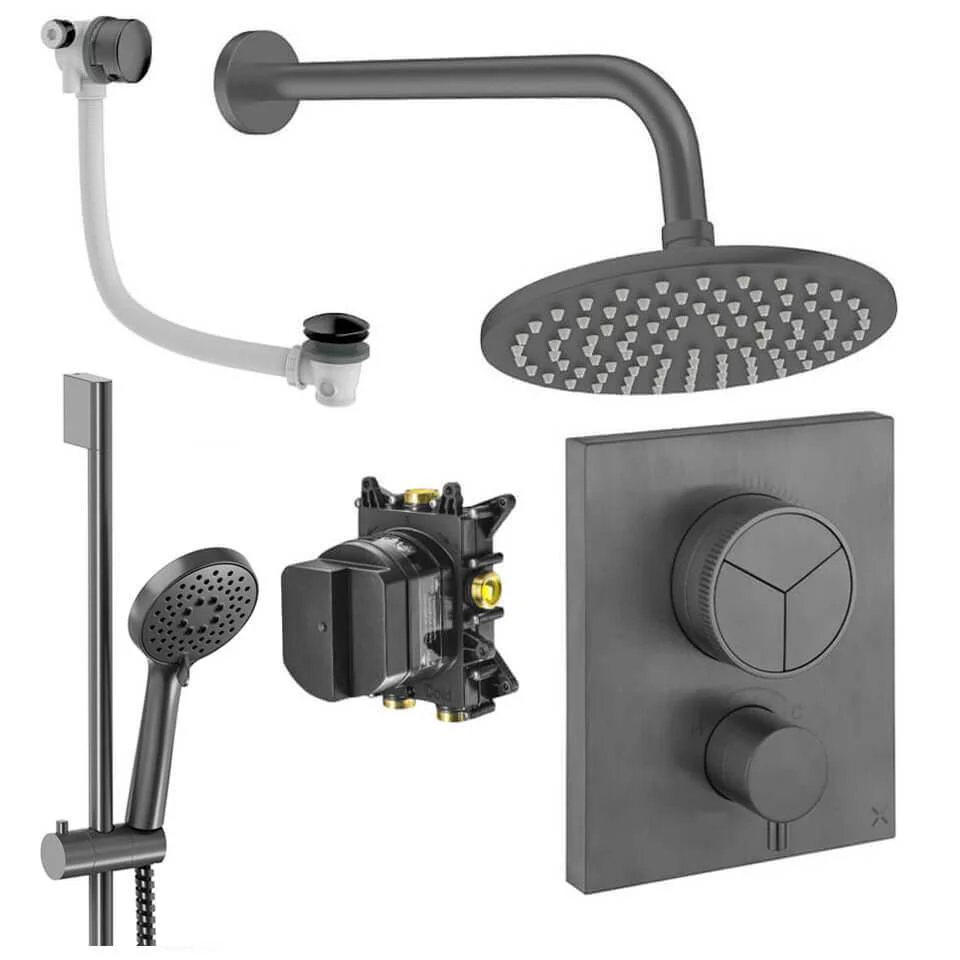

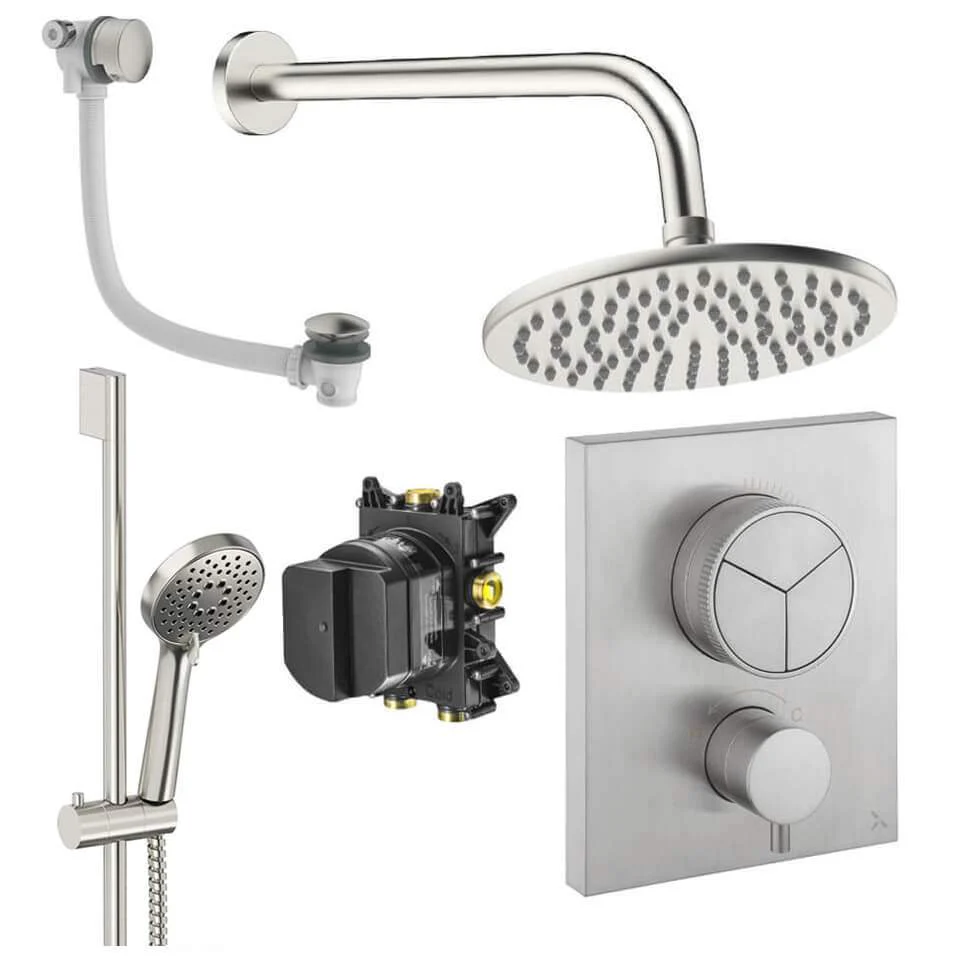

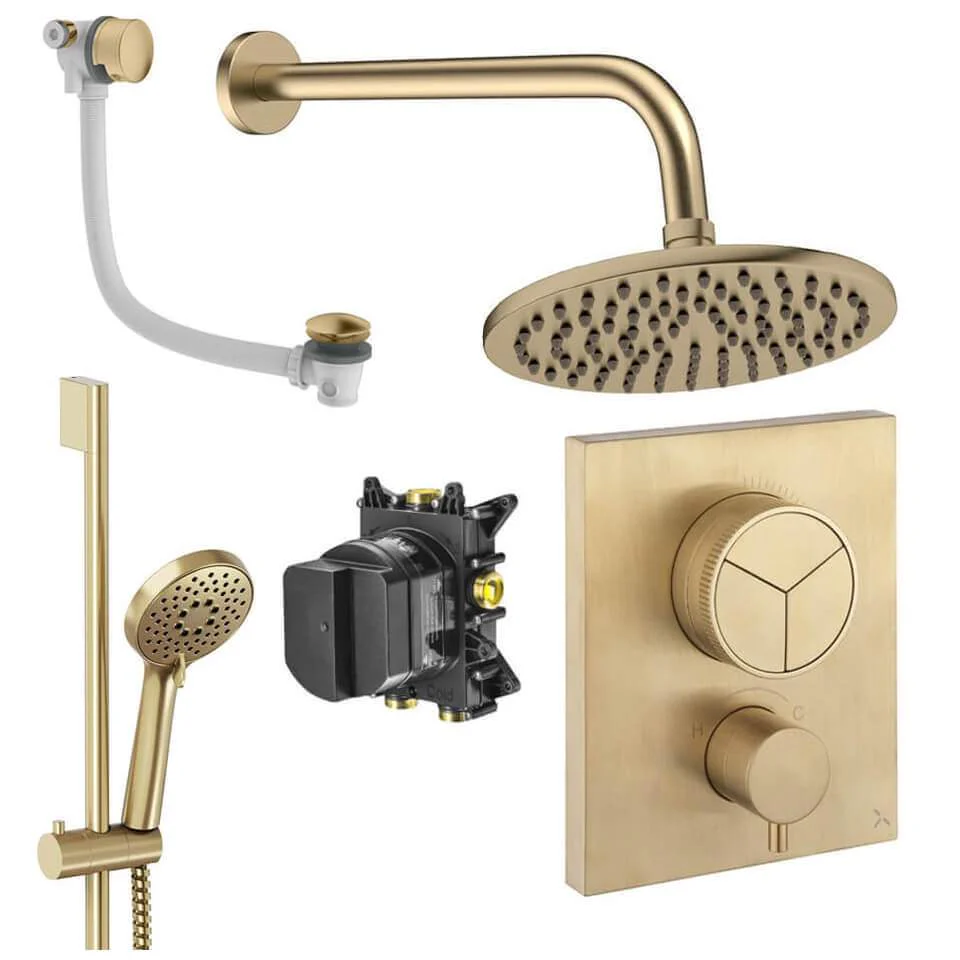

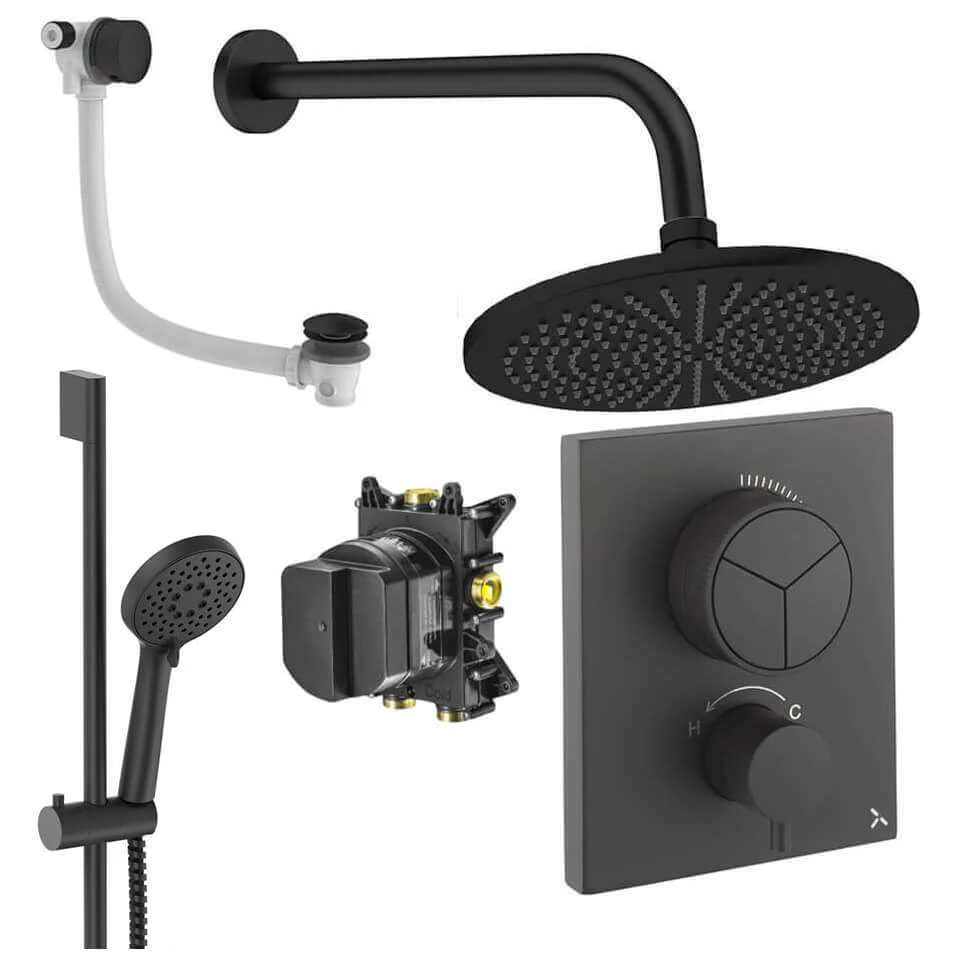

The Crosswater Crossbox Push Shower Set 8 is a comprehensive showering solution designed to bring convenience, performance, and modern styling to contemporary bathrooms. Built with high-quality brass components and advanced Crossbox technology, this set offers reliable functionality, efficient installation, and a clean concealed design. This shower set includes a shower valve, thermostatic Crossbox concealed unit, slide rail shower kit with handset and hose, fixed shower head with arm, and a bath filler with waste. With three outlets available, the system allows multiple water functions to be used within one integrated setup, making it an ideal choice for bathrooms that combine both showering and bathing options. Combining thermostatic safety, flexible installation features, and multiple showering functions, the Crosswater Crossbox Push Shower Set 8 provides a stylish and practical solution for modern bathroom environments.

Specifications:

• Warranty: 15 Years
• Product Type: Shower Set
• Brand: Crosswater
• Collection: Crossbox
• Style: Modern
• Material: Brass
• Outlets: 3
• Minimum Operating Water Pressure: 1 Bar

Special Features:

• Shower Set Includes - Shower Valve, Thermostatic Crossbox (Concealed Part), Shower Kit: Handset and Hose, Fixed Head with Arm, Bath Filler with Waste

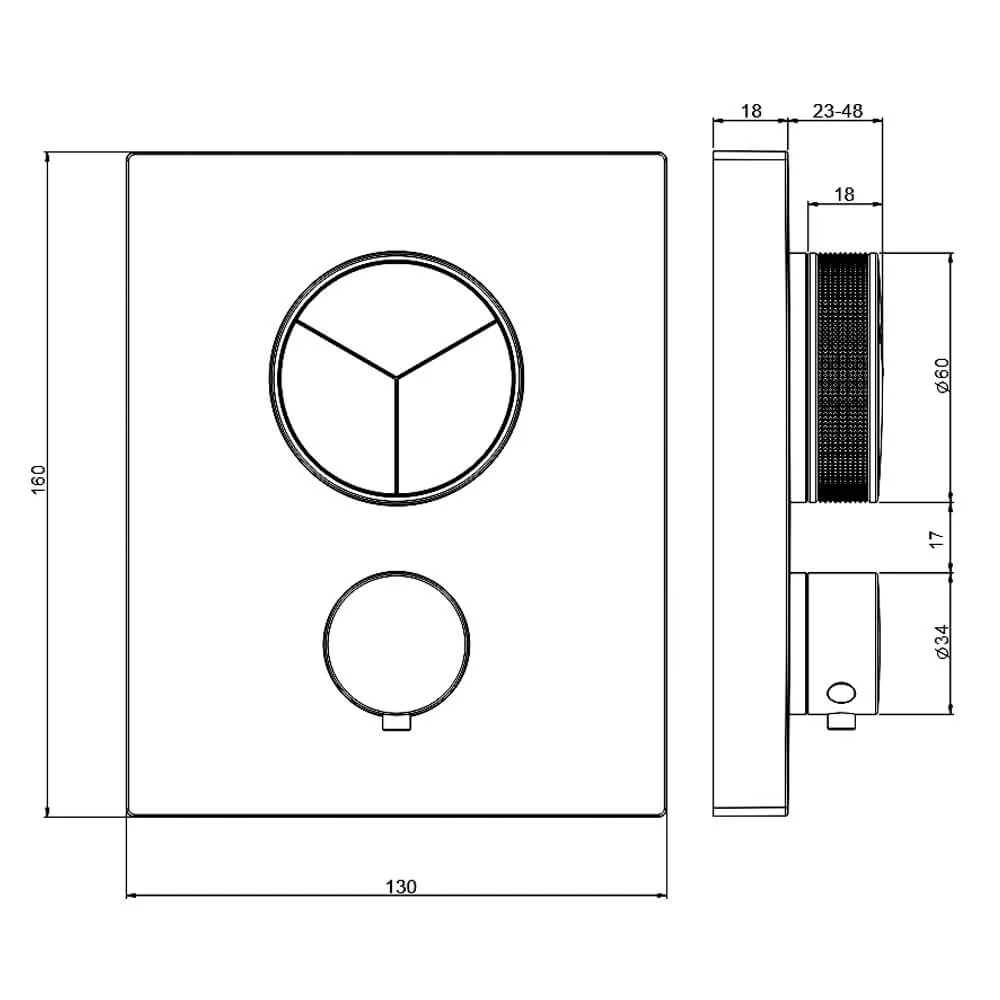

Details of Thermostatic Shower Valve:

• Size: 130mm x 160mm [Width x Height]
• Simple 2-Stage Fixing Allows Installation of In-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage
• Front or Rear Mounting Options Increase Ease of Installation and Flexibility
• Easy-Fix 2nd-Stage Trim Sets Reduce Installation Times
• Built-In Easy-Switch Thermostatic Module Allows for Simple
• The Flush-Block Testing Plate Included for Easy Pressure Testing
• Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
• Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
• Suitable for High Water Pressure
• Requires a Minimum of 1 Bar Water Pressure System

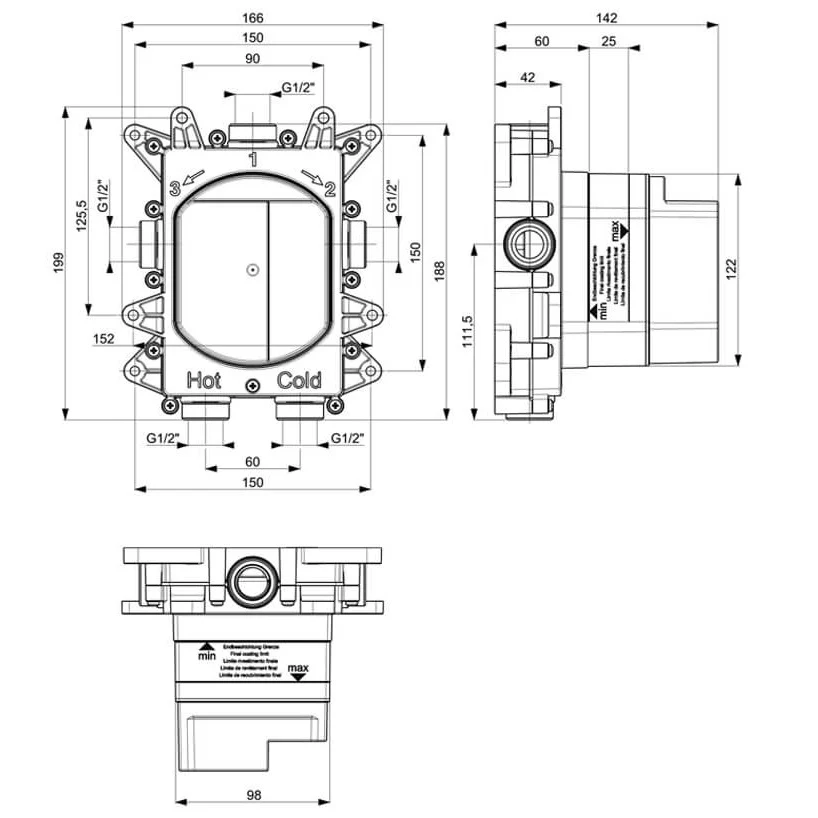

Details of Crossbox:

• Suitable for High Water Pressure System
• Works On a Minimum of 1.0 Bar or Above Water Pressure

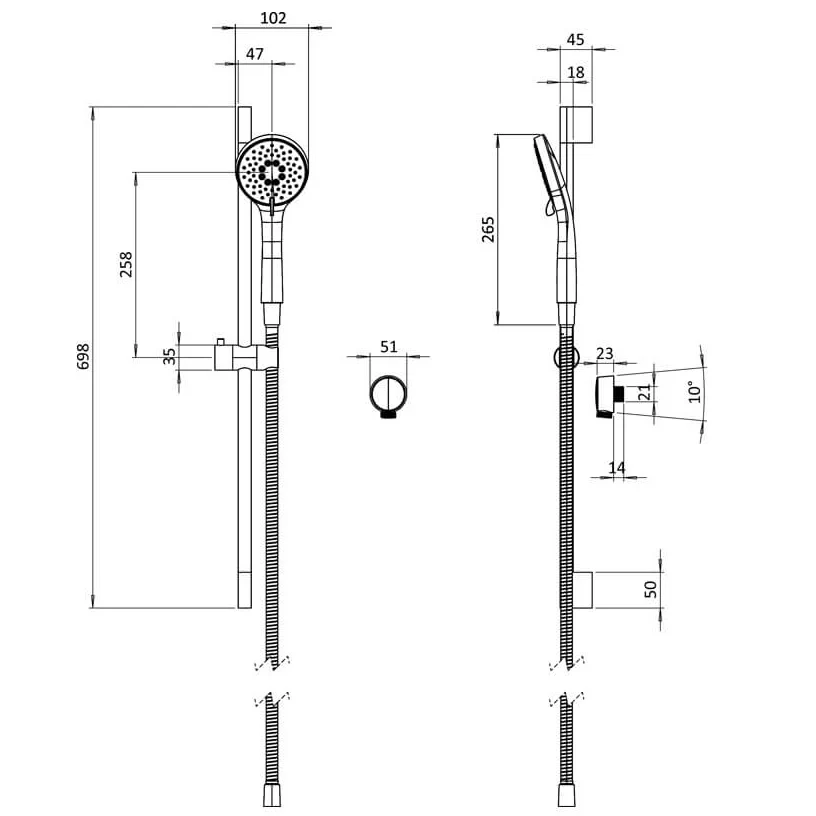

Details of Slide Rail Shower Set:

• Slide Rail with Shower Kit and Outlet Elbow
• Overall Size: 111mm x 81mm x 698mm [Width x Depth x Height]
• 3-Functions Shower Handset
• 1-Outlet Elbow
• Manufactured from Brass and ABS Material
• Requires a Minimum of 1 Bar of Water Pressure
• WRAS Approved
• Inlet Connection Thread: G1/2-Inch
• Flow Rate: 1Bar: 10.29, 2Bar: 13.26, 3Bar: 15.18, 4Bar: 17.76, 5Bar: 19.38

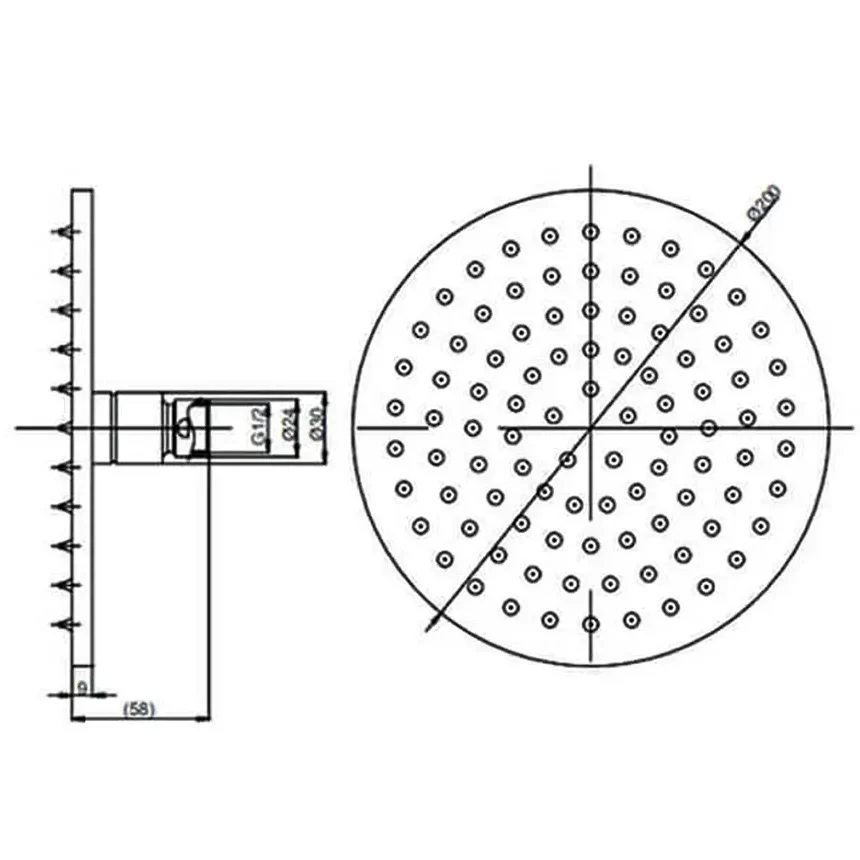

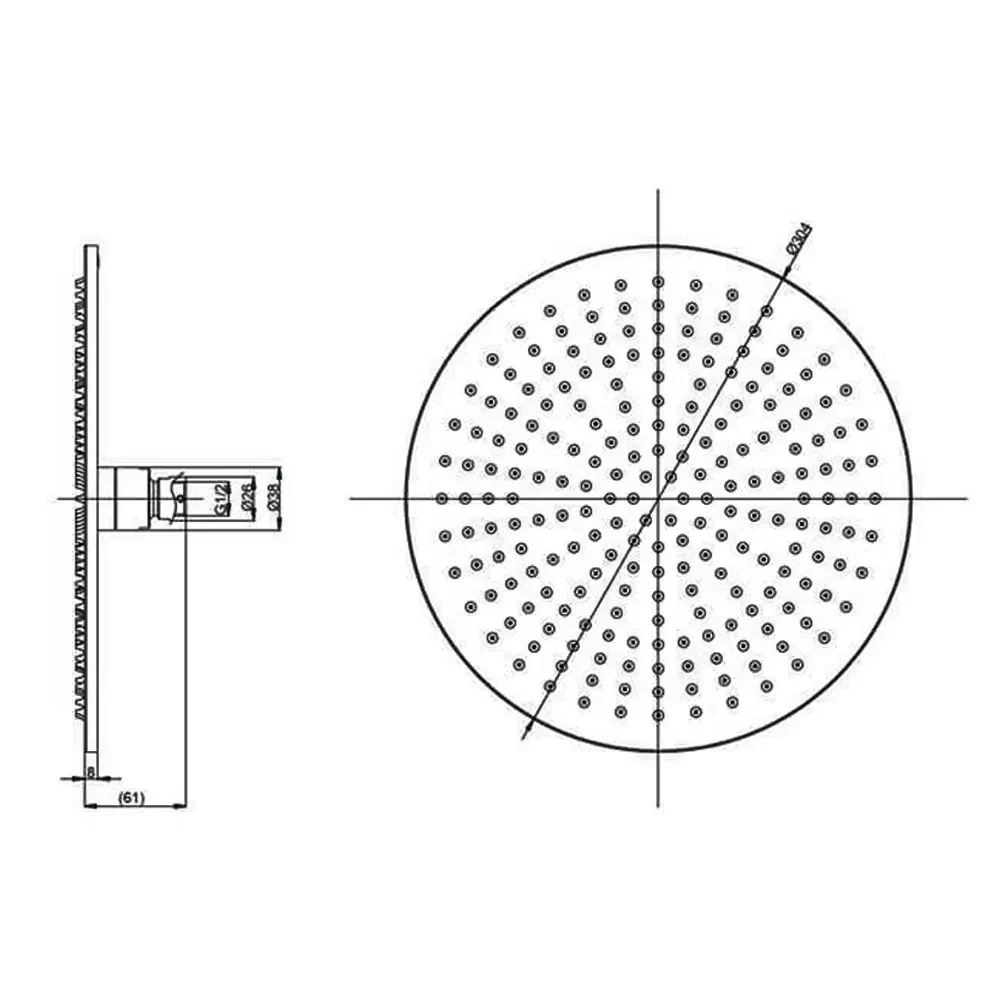

Details of Shower Head:

• WRAS and KIWA-Approved
• Head Thickness: 5.8mm
• Inlet Connection: G1/2 Inch
• Requires a Minimum of 1.0 Bar or Above Water Pressure

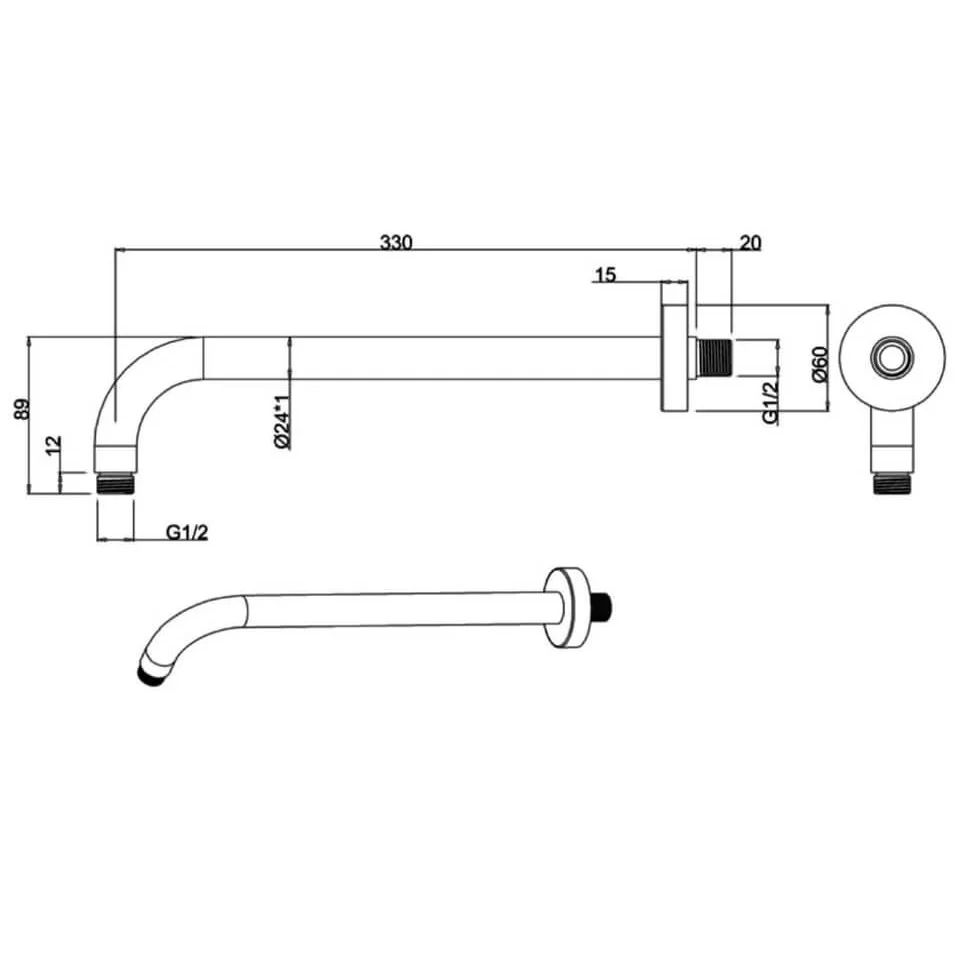

Details of Shower Arm:

• KIWA-Approved
• Length: 330mm
• Inlet/Outlet Connection: G1/2-Inch
• Suitable for All Crosswater Fixed Heads

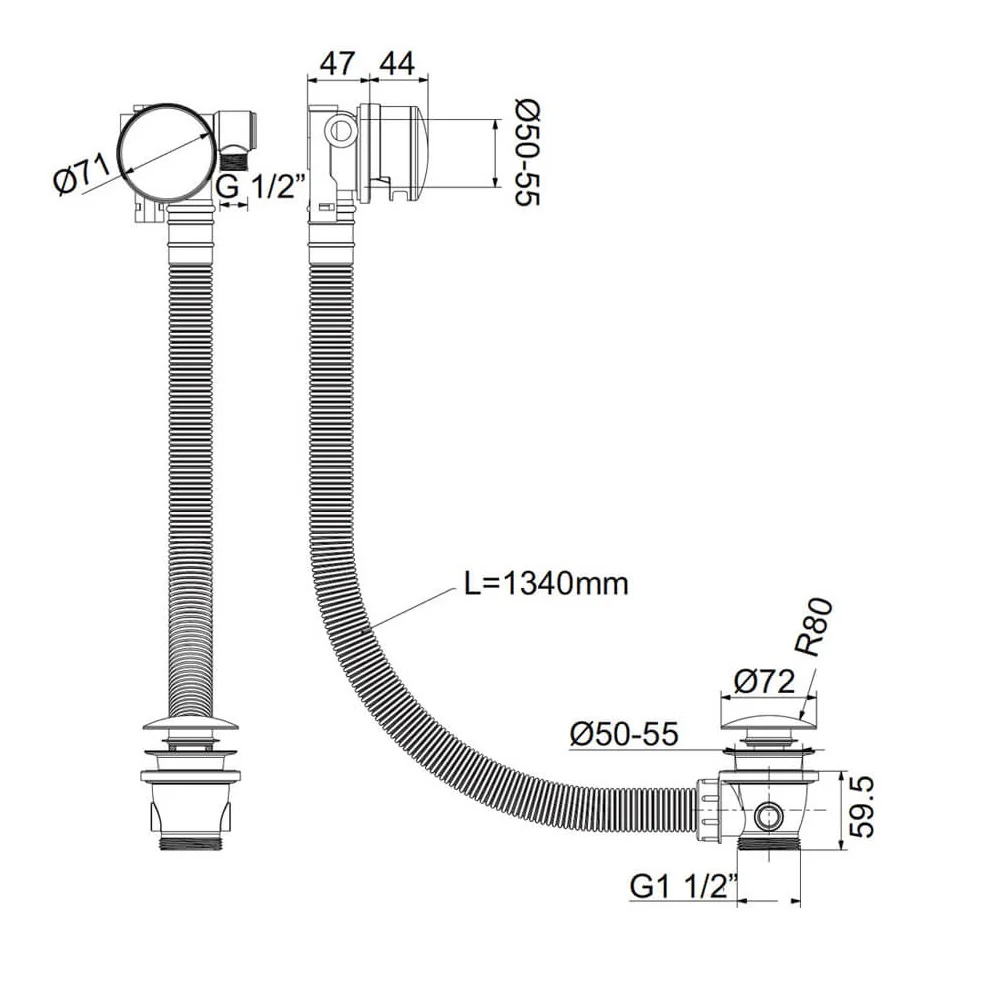

Details of Bath Filler with Waste:

• Length: 1340mm
• Depth: 44mm
• 3-in-1 Inlet/Outlet and Overflow Function
• Flexible Overflow for Easier Installation and Fitting Inside Odd Bath Shapes
• The Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar [MP-Medium Pressure]


Assembling instruction for Shower Valve

Assembling instruction for Shower Kit

Assembling instruction for 200mm Shower head

Assembling instruction for 300mm Shower head

Assembling instruction for Crossbox

Assembling instruction for Bath Filler Waste

Datasheet for Shower Valve

Datasheet for 200mm Shower Head

Datasheet for 300mm Shower Head

Datasheet for Crossbox

Datasheet for Shower Arm

Datasheet for Bath Filler Waste

Datasheet for Shower Kit

Technical Drawing

Shower Valve
