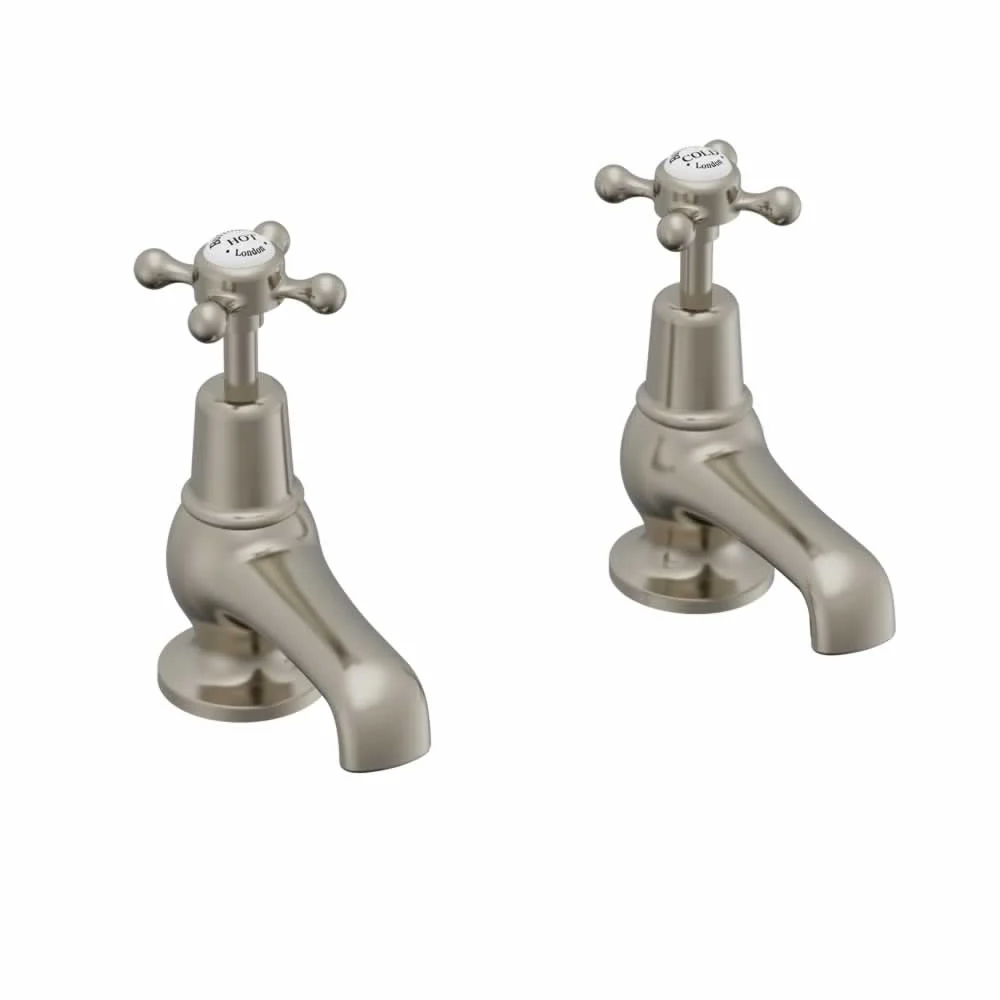

The Burlington Deck Mounted Basin Pillar Taps offer a classic touch with their traditional round design and crosshead handles. Constructed from durable brass, these taps are designed for easy installation and use. Each set includes two taps, ideal for a timeless basin setup. They feature a flow straightener for low water pressure and an aerator for high pressure, ensuring versatility. Flow rates range from 4.8 to 22.9 l/min, accommodating different needs. With a height of 139mm and width of 48mm, these taps fit comfortably in various setups. Available in Chrome, Gold, and Brushed Nickel, they come with a 15-year guarantee.

Specifications:

• Guarantee: 15 Years
• Product Type: Basin Pillar Taps
• Brand: Burlington
• Style: Traditional
• Shape: Round
• Mounting: Deck
• Material: Brass
• Hole: 1
• Handles: 2
• Handle Type: Crosshead
• Spout Reach: 87.3mm
• Base To Spout: 22.4mm

Special Features:

• Easy to install and use
• Images are shown for illustration purposes only
• Comes With handles
• Waste is not included
• Supplied with flow straighter for use with low water pressure
• Also supplied with aerator for use with high water pressure
• Standards Information: BS EN 817:2008, BS EN 200:2008
• Flow rates at 0.2 Bar(Straightened): 13.2
• Flow rates at 0.5 Bar(Straightened): 14.3
• Flow rates at 1 Bar(Straightened): 18.1
• Flow rates at 2 Bar(Straightened): 22.8
• Flow rates at 3 Bar(Straightened): 22.9
• Flow rates at 0.2 Bar(Aerator): 4.8
• Flow rates at 0.5 Bar(Aerator): 7.7
• Flow rates at 1 Bar(Aerator): 9.1
• Flow rates at 2 Bar(Aerator): 10.7
• Flow rates at 3 Bar(Aerator): 11.6
• Supplied in pair

Dimensions:

• Height: 139mm
• Width: 48mm

Assembling instruction for Tap

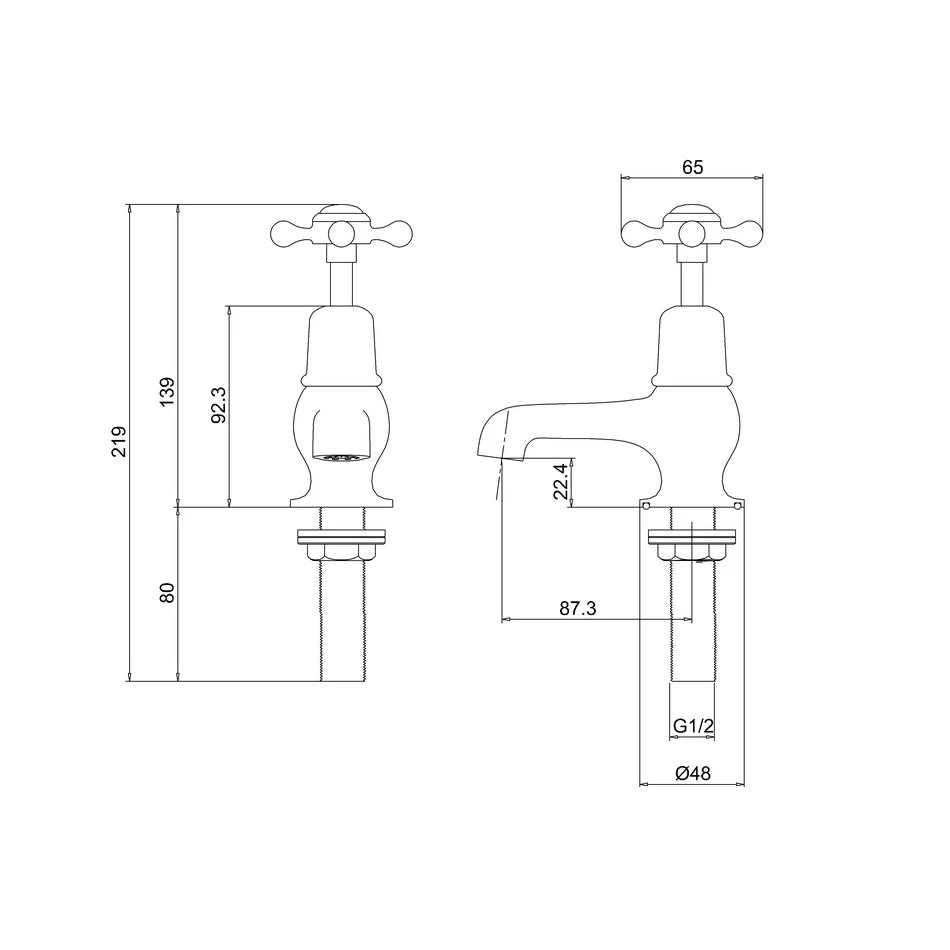

TECHNICAL DRAWING
