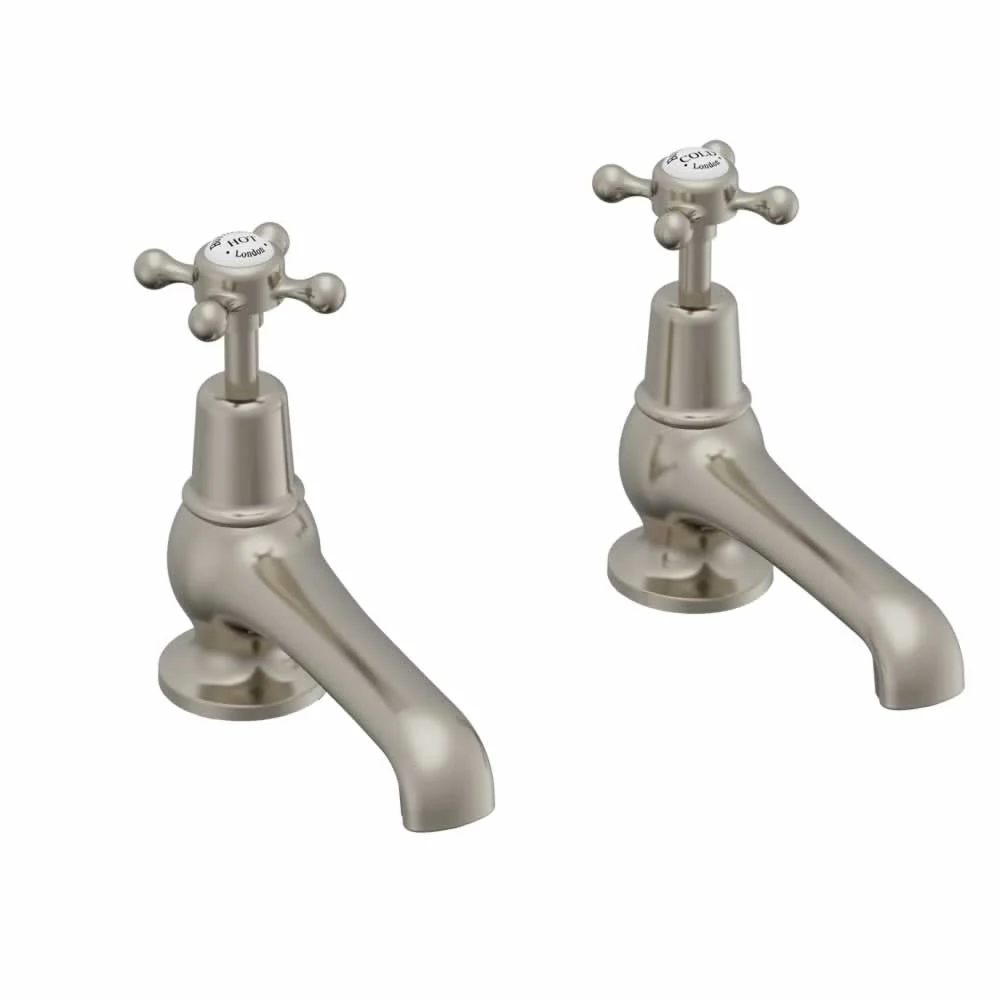

Elevate your bathroom with the Burlington Deck Mounted Basin Pillar Taps, featuring a traditional round design with crosshead handles. Crafted from robust brass and available in Chrome, Gold, and Brushed Nickel, these taps offer both durability and elegance. The 5-inch spout reach and precise control with quarter turn operation make them a practical choice for modern or classic settings. Each tap is supplied with a flow straightener for low pressure and an aerator for high pressure, ensuring optimal performance. Measuring 139mm in height and 48mm in width, these taps come in a pair and are backed by a 15-year guarantee.

Specifications:

• Guarantee: 15 Years
• Product Type: Basin Pillar Taps
• Brand: Burlington
• Style: Traditional
• Shape: Round
• Mounting: Deck
• Material: Brass
• Hole: 1
• Handles: 2
• Handle Type: Crosshead
• Spout Reach: 126mm
• Base To Spout: 22.5mm

Special Features:

• Easy to install and use
• Images are shown for illustration purposes only
• Comes With handles
• Waste is not included
• Supplied with flow straighter for use with low water pressure
• Also supplied with aerator for use with high water pressure
• Standards Information: BS EN 817:2008, BS EN 200:2008
• Flow rates at 0.2 Bar(Straightened): 12.7
• Flow rates at 0.5 Bar(Straightened): 13.8
• Flow rates at 1 Bar(Straightened): 17.6
• Flow rates at 2 Bar(Straightened): 22.2
• Flow rates at 3 Bar(Straightened): 22.6
• Flow rates at 0.2 Bar(Aerator): 4.8
• Flow rates at 0.5 Bar(Aerator): 7.9
• Flow rates at 1 Bar(Aerator): 9.1
• Flow rates at 2 Bar(Aerator): 10.5
• Flow rates at 3 Bar(Aerator): 11.6
• Supplied in pair
• Water Activation: By Rotating
• Handle Position: Upwards

Dimensions:

• Height: 139mm
• Width: 48mm

Assembling instruction for Tap

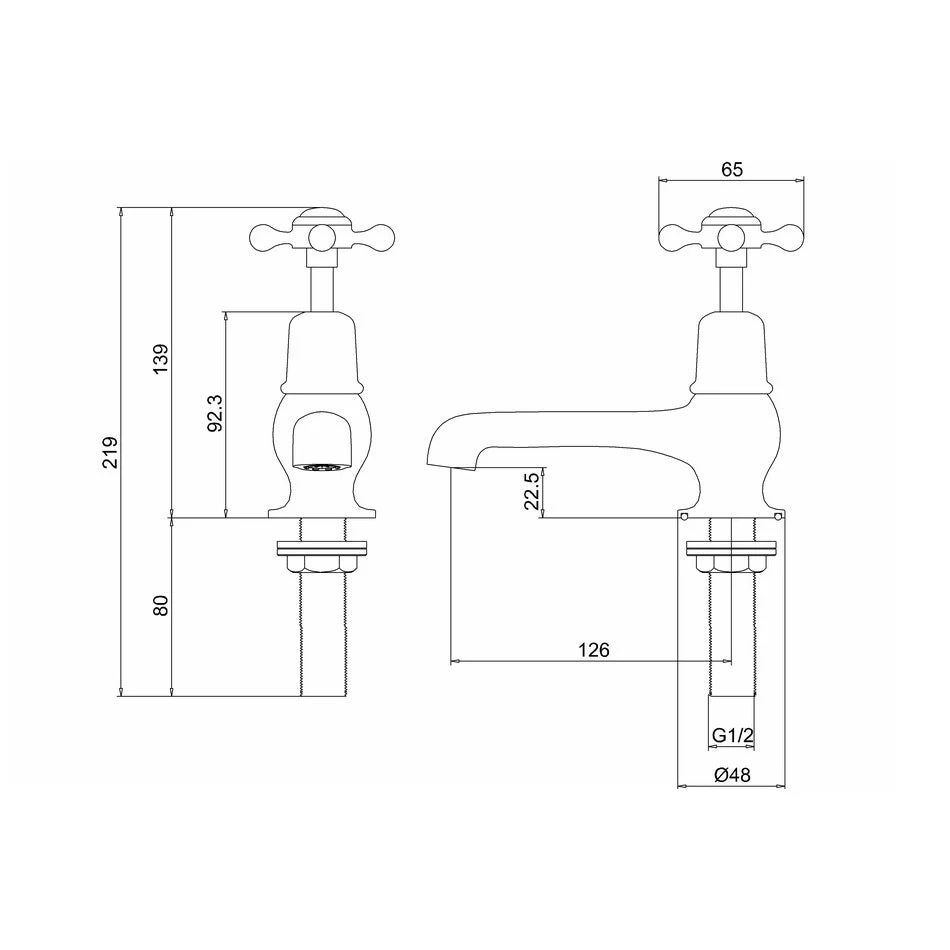

TECHNICAL DRAWING
